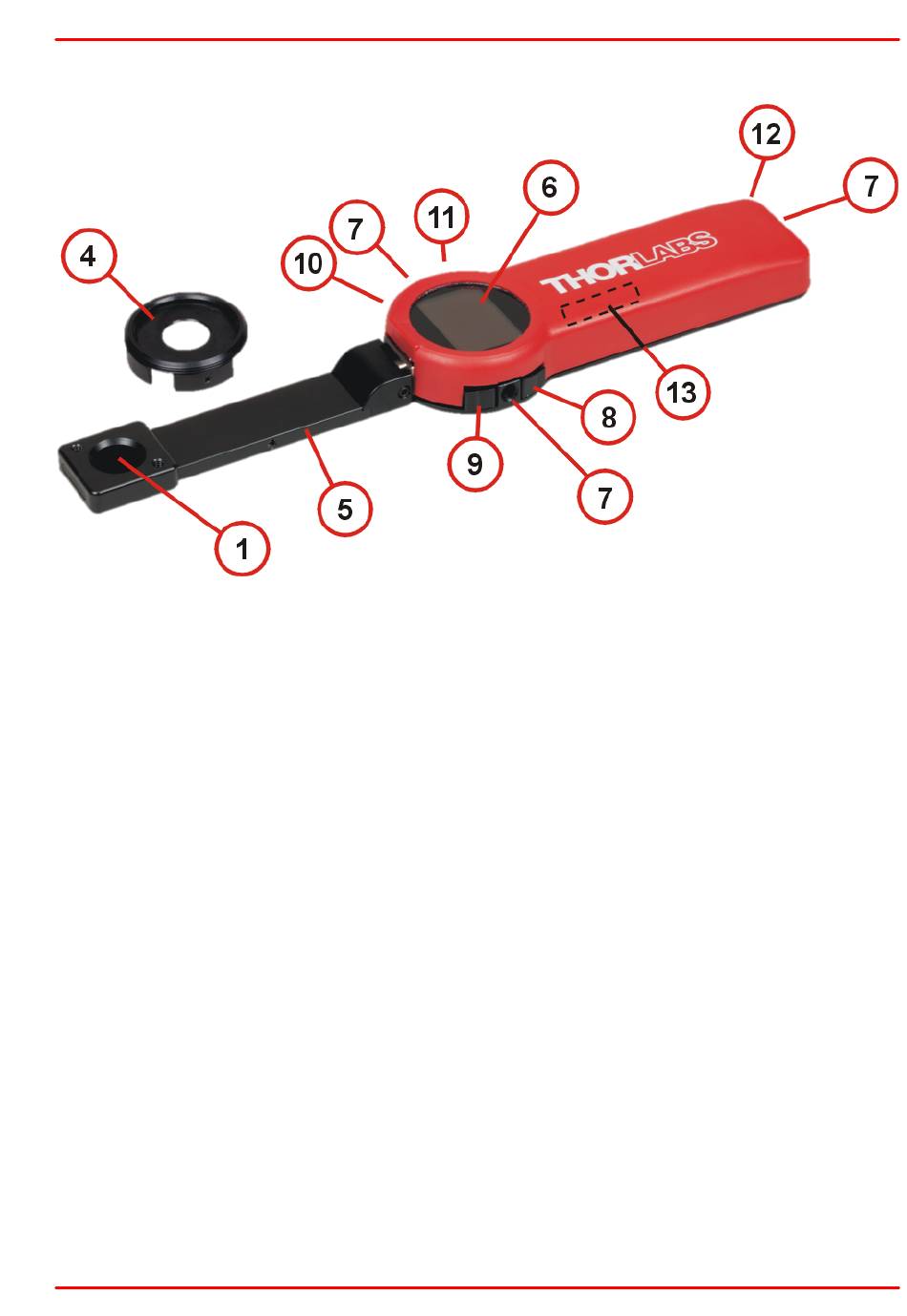

PM160T
1 Sensor aperture
4 SM1 adapter
5 270° rotatable arm with build-in sensor
6 OLED display
7 Combined #8-32 / M4 threads for mounting (3 places)
8 to 11 Push buttons for local control
12 USB connector
13 Integrated bluetooth antenna
The push buttons (8) to (11) are soft keys, their function is shown in the display.
The functions as stated on the rear panel are the defaults when the PM160T is
switched off.
The SM1 adapter can accommodate a Thorlabs fiber adapter.
© 2018 Thorlabs
PM160T Front View
3 Operating Elements
