MVI56-CAS ♦ ControlLogix Platform
Teledyne CA Slave Module
1.4

Install the Module in the Rack

If you have not already installed and configured your ControlLogix processor and
power supply, please do so before installing the MVI56-CAS module. Refer to
your Rockwell Automation product documentation for installation instructions.
Warning: You must follow all safety instructions when installing this or any other
electronic devices. Failure to follow safety procedures could result in damage to
hardware or data, or even serious injury or death to personnel. Refer to the
documentation for each device you plan to connect to verify that suitable safety
procedures are in place before installing or servicing the device.
After you have checked the placement of the jumpers, insert MVI56-CAS into the
ControlLogix chassis. Use the same technique recommended by Rockwell
Automation to remove and install ControlLogix modules.
Warning: When you insert or remove the module while backplane power is on, an
electrical arc can occur. This could cause an explosion in hazardous location
installations. Verify that power is removed or the area is non-hazardous before
proceeding. Repeated electrical arcing causes excessive wear to contacts on both the
module and its mating connector. Worn contacts may create electrical resistance that
can affect module operation.
Turn power OFF.
1

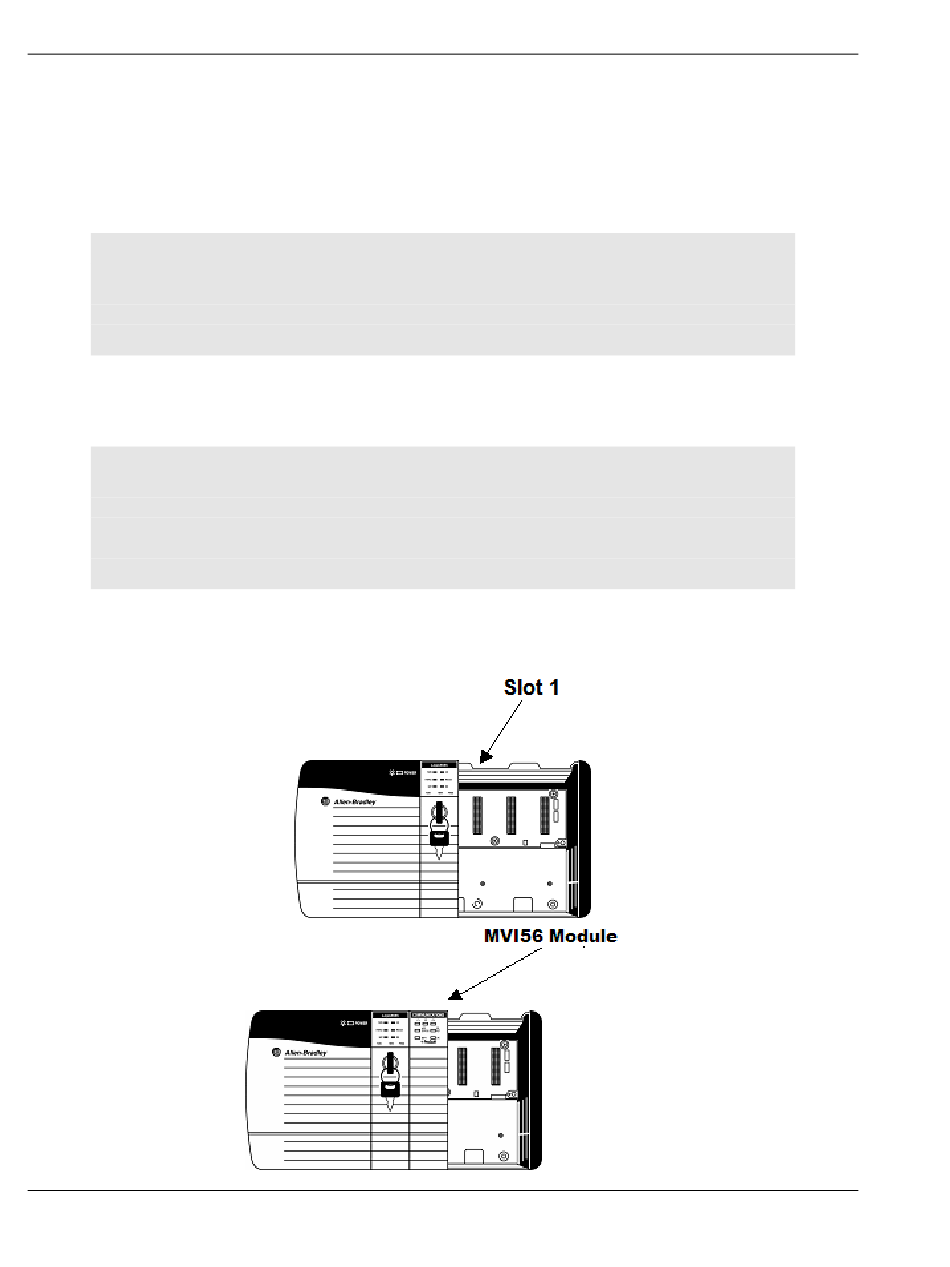

Align the module with the top and bottom guides, and slide it into the rack
2
until the module is firmly against the backplane connector.
