MVI56-CAS ♦ ControlLogix Platform
Teledyne CA Slave Module

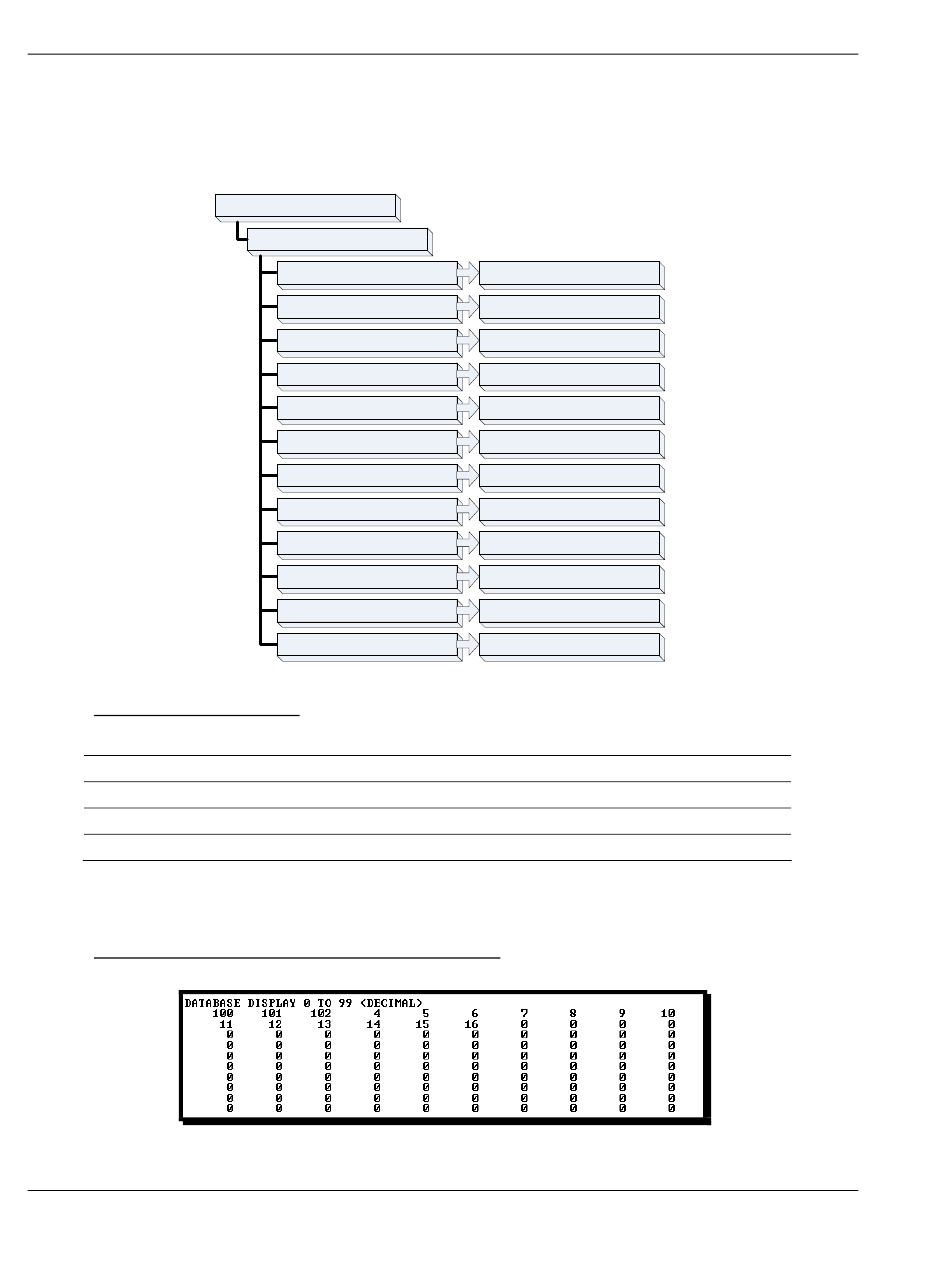

4.1.8 Database View Menu

Press [D] from the Main Menu to open the Database View menu. Use this menu
command to view the current contents of the module's database. Press [?] to
view a list of commands available on this menu.
Viewing Register Pages
To view sets of register pages, use the keys described below:
Command
[0]
[1]
[2]
And so on. The total number of register pages available to view depends on your
module's configuration.
Displaying the Current Page of Registers Again
This screen displays the current page of 100 registers in the database.
Page 42 of 86
M = Main Menu
D = Database Menu
? = Display Menu
0 – 3 = Pages 0 to 3000
S = Show Again
– = Back 5 Pages
P = Previous Page
+ = Skip 5 Pages
N = Next Page
D = Decimal Display
H = Hexadecimal Display
F = Float Display
A = ASCII Display
M = Main Menu
Description
Display registers 0 to 99
Display registers 1000 to 1099
Display registers 2000 to 2099
Diagnostics and Troubleshooting
Redisplays (refreshes) this menu
Selects page 0, 1000, 2000 or 3000
Redisplays last selected page of data
Goes back five pages of data
Goes back one page of data
Goes forward five pages of data
Goes forward one page of data
Displays data in decimal format
Displays data in hex format
Displays data in floating point format
Displays data in text format
Goes up one level to main menu
