MVI46-GEC ♦ SLC Platform
Generic ASCII Ethernet Interface Module
1.4

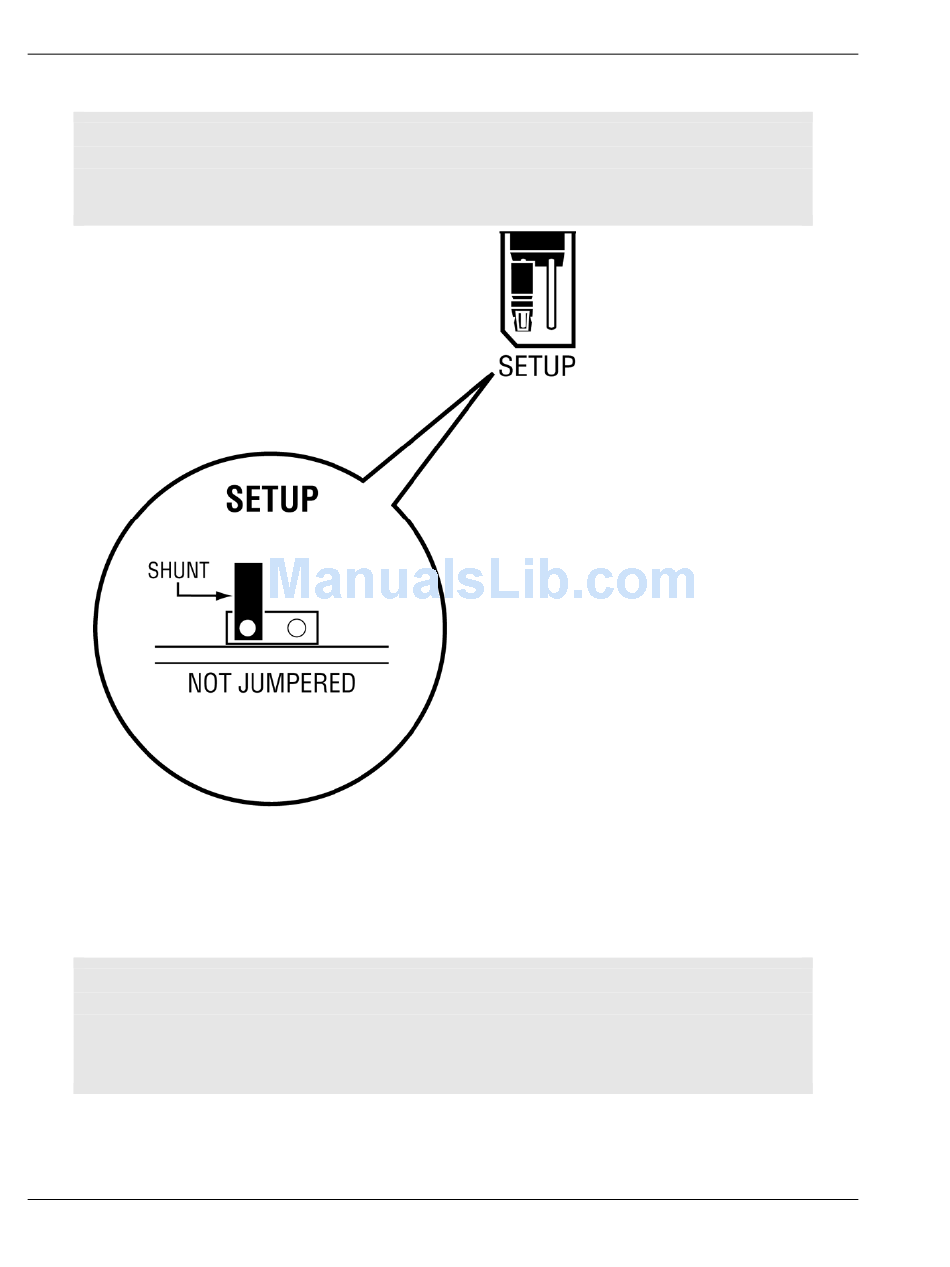

Setting Jumpers

Note: The Setup Jumper acts as "write protection" for the module's flash memory. In "write
protected" mode, the Setup pins are not connected, and the module's firmware cannot be
overwritten. Do not jumper the Setup pins together unless you are directed to do so by ProSoft
Technical Support.
1.5

Install the Module in the Rack

If you have not already installed and configured your SLC processor and power
supply, please do so before installing the MVI46-GEC module. Refer to your
Rockwell Automation product documentation for installation instructions.
Warning: You must follow all safety instructions when installing this or any other electronic
devices. Failure to follow safety procedures could result in damage to hardware or data, or even
serious injury or death to personnel. Refer to the documentation for each device you plan to
connect to verify that suitable safety procedures are in place before installing or servicing the
device.
After you have checked the placement of the jumpers, insert MVI46-GEC into the
SLC™ chassis. Use the same technique recommended by Rockwell Automation
to remove and install SLC™ modules.
