MVI56-CAS ♦ ControlLogix Platform
Teledyne CA Slave Module
The next step in the module's setup is to define the User Defined Data Types to
be used with the module. Copy these data types from the example ladder logic if
you are not using the example. They will be defined if you are starting from the

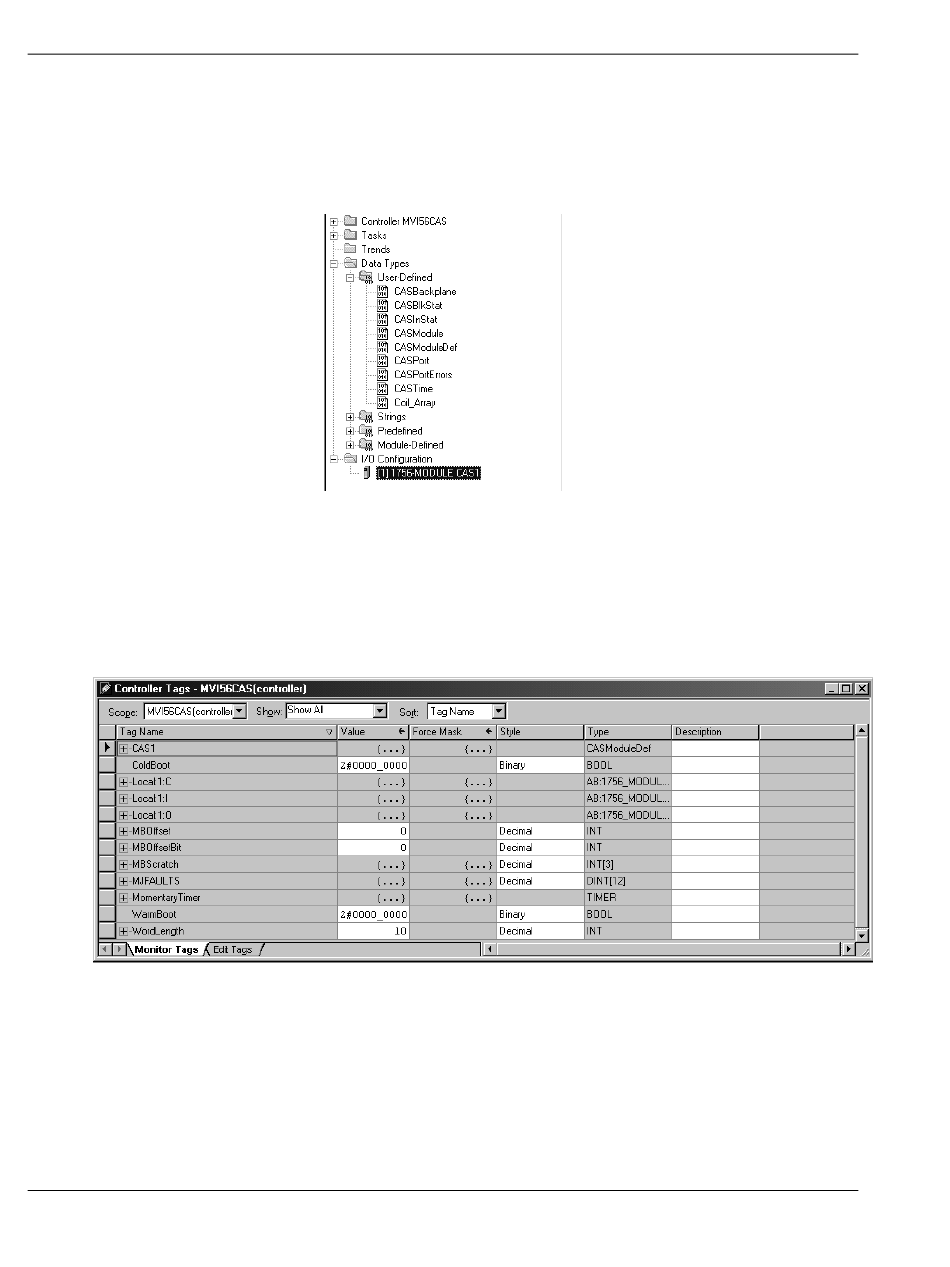

example ladder logic. The Controller Organization window should display the
User Defined Data Types shown below:
The next step in module setup is to define the data to be used to interface with
the module and the ladder logic. Open the Controller Tags Edit Tags dialog box
and enter the values shown in the following example. The MVI56-CAS module is
defined in the example as CAS1. You can set the tag name to any valid tag
name you desire. If you are using the example ladder logic, this step has already
been performed.
At this point, take the time to fill in the configuration values in the CAS1 data
table and adjust array sizes. Refer to the Module Data Object section of this
document for information on configuring the module.
