MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform
1.4

Install the Module in the Rack

Make sure the processor and power supply are installed and configured before installing the
MVI69E-GSC module. Refer to the Rockwell Automation product documentation for
installation instructions.
Warning: Please follow all safety instructions when installing this or any other electronic devices. Failure to
follow safety procedures could result in damage to hardware or data, or even serious injury or death to
personnel. Refer to the documentation for each device to be connected to verify that suitable safety procedures
are in place before installing or servicing the device.
After you verify the jumper placements, insert the MVI69E-GSC into the rack. Use the same
technique recommended by Rockwell Automation to remove and install CompactLogix or
MicroLogix 1500-LRP modules.
Warning: This module is not hot-swappable! Always remove power from the rack before inserting or
removing this module, or damage may result to the module, the processor, or other connected devices.

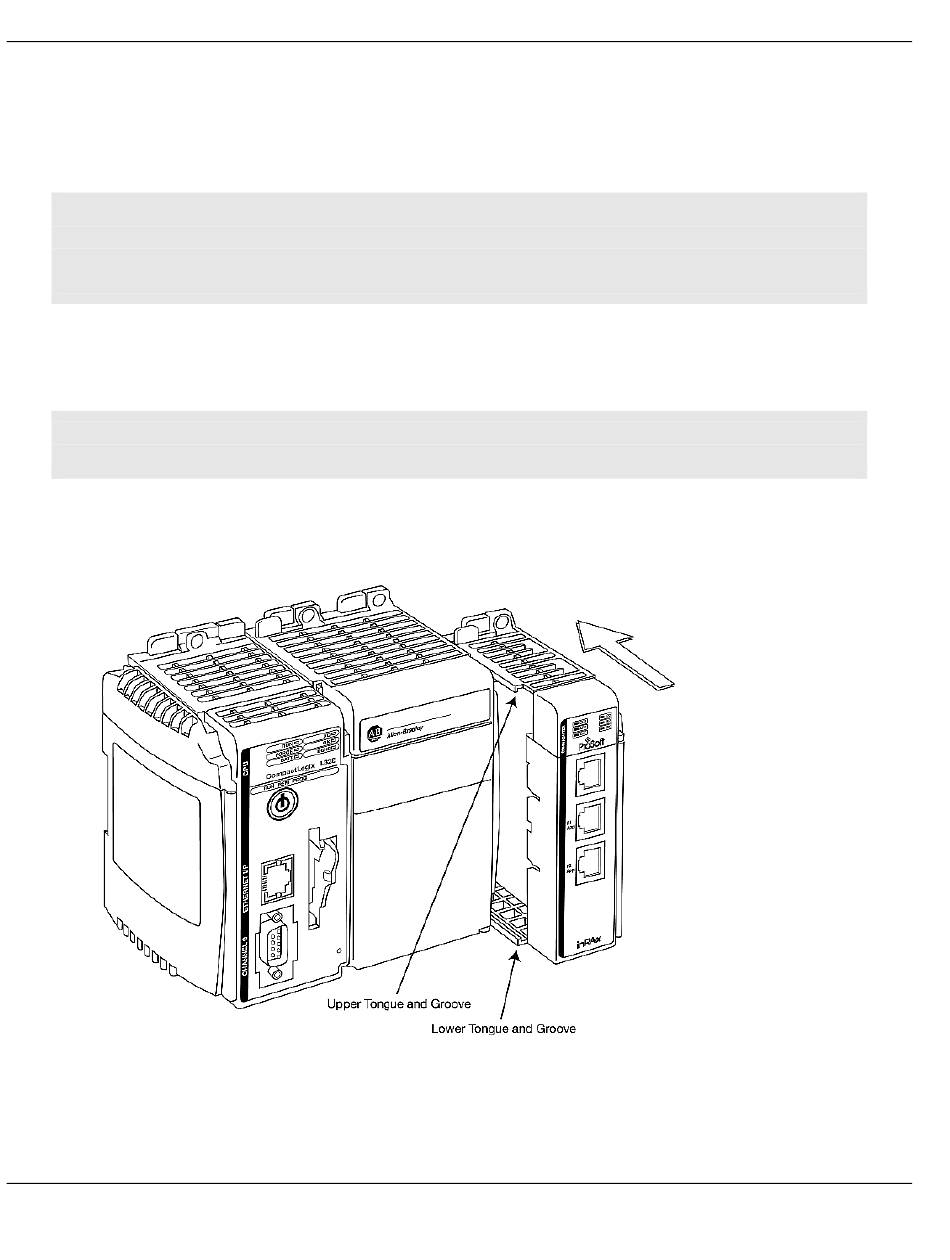

1 Align the module using the upper and lower tongue-and-groove slots with the adjacent
module and slide forward in the direction of the arrow.
2 Move the module back along the tongue-and-groove slots until the bus connectors on
the module and the adjacent module line up with each other.
