Anlagen / Appendices

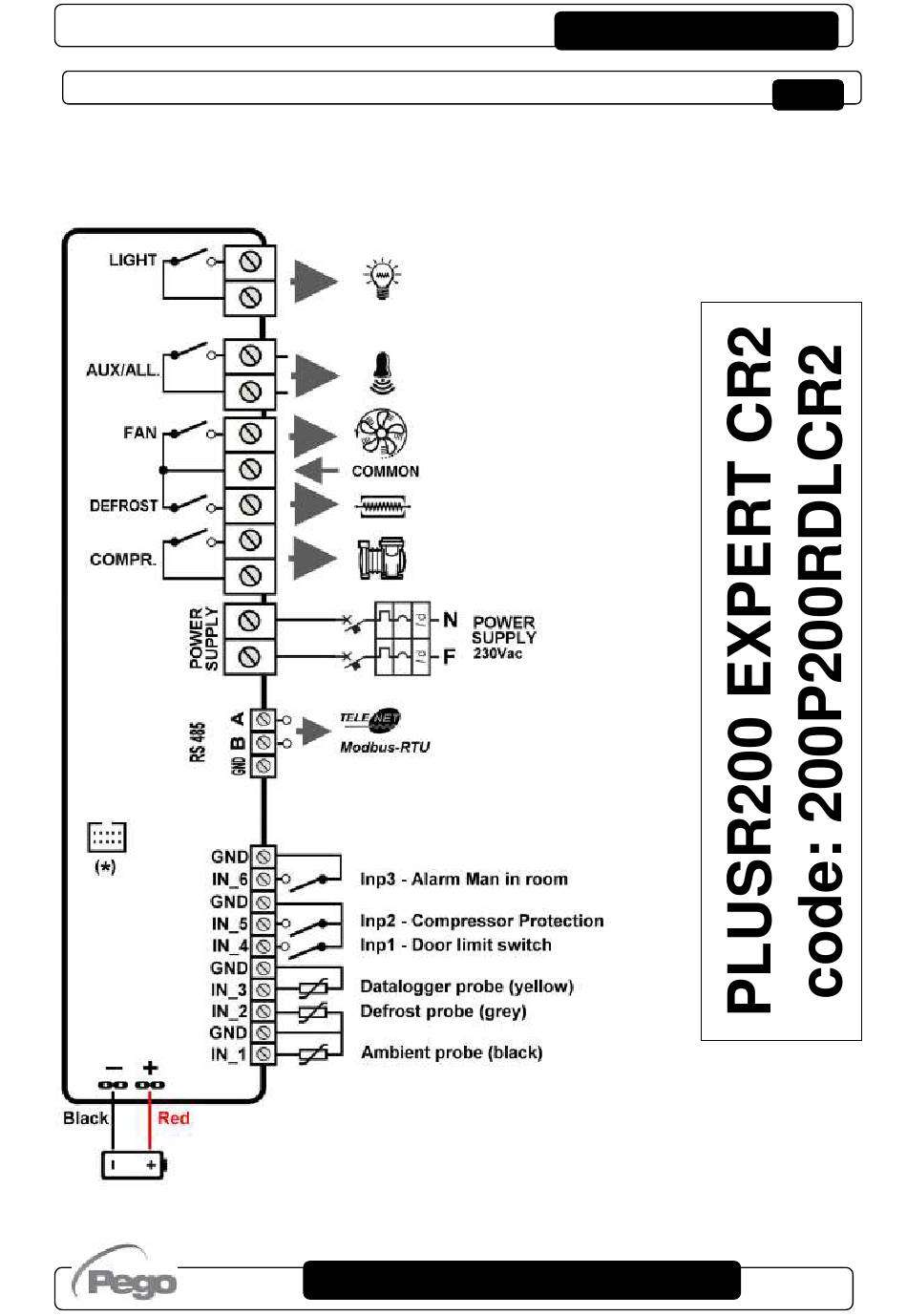

VERBINDUNGSSCHEMA 200P200RDLCR2 / 200P200RDLCR2 WIRING DIAGRAM
Ausgänge mit Trockenkontakt (spannungsfrei).
(*) Anschluss des Kommunikationsmoduls Bluetooth
(optional).
Rev. 01-19
oltage free outputs (voltage free contacts)
V
(*) Connection of Bluetooth communication module
(optional).
GEBRAUCHS- UND WARTUNGSHANDBUCH
USE AND MAINTENANCE MANUAL
PLUSR200 EXPERT
S. 46
A.3
