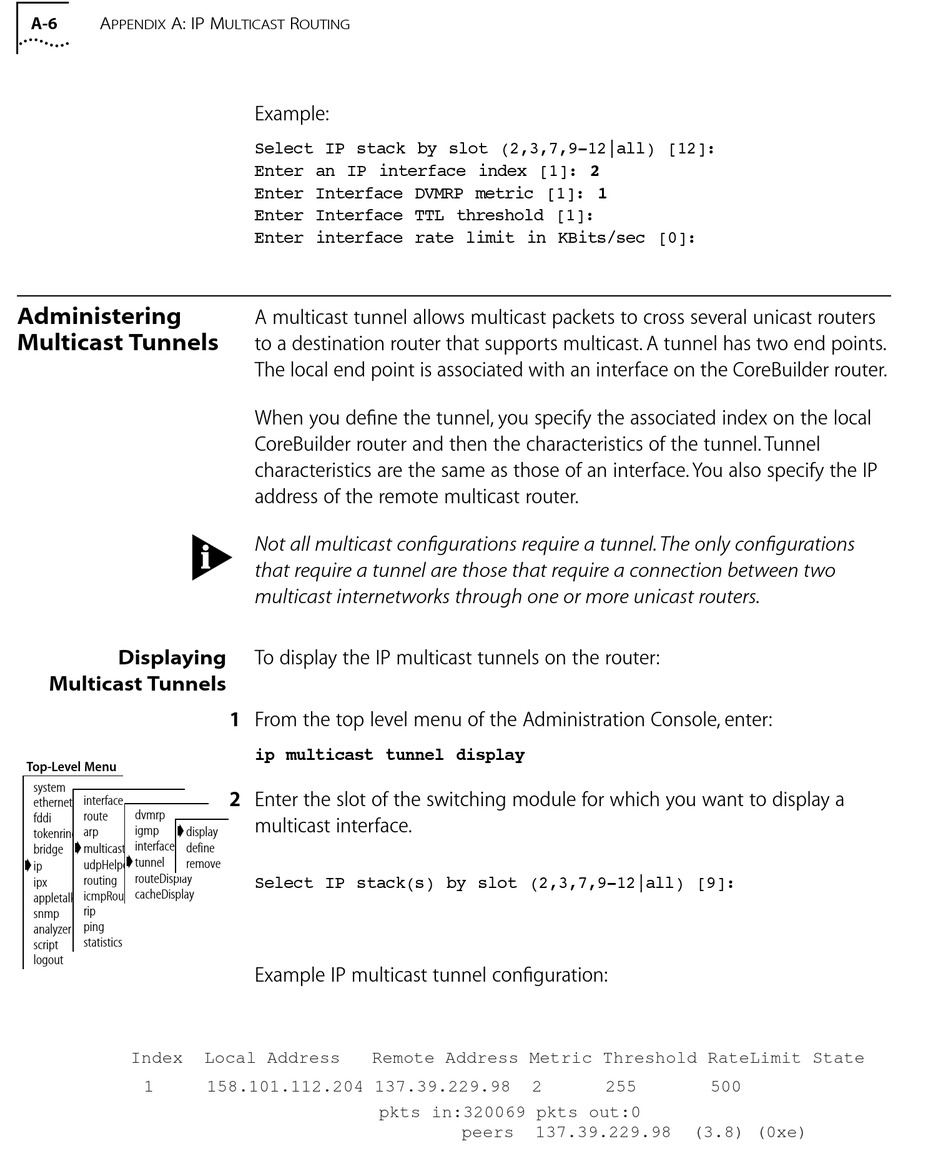

Administering
Multicast Tunnels
Displaying
Multicast Tunnels
Top-Level Menu
system
interface
ethernet
dvmrp
route
fddi
igmp
arp
display
tokenring
interface
multicast define
bridge
tunnel remove
udpHelper
ip
routeDisplay
routing
ipx
cacheDisplay
icmpRouterDiscovery
appletalk
rip
snmp
ping
analyzer
statistics
script
logout
Index
1
R
ULTICAST OUTING
Example:
Select IP stack by slot (2,3,7,9-12|all) [12]:
Enter an IP interface index [1]: 2
Enter Interface DVMRP metric [1]: 1
Enter Interface TTL threshold [1]:
Enter interface rate limit in KBits/sec [0]:
A multicast tunnel allows multicast packets to cross several unicast routers
to a destination router that supports multicast. A tunnel has two end points.
The local end point is associated with an interface on the CoreBuilder router.
When you define the tunnel, you specify the associated index on the local
CoreBuilder router and then the characteristics of the tunnel. Tunnel
characteristics are the same as those of an interface. You also specify the IP
address of the remote multicast router.
Not all multicast configurations require a tunnel. The only configurations
that require a tunnel are those that require a connection between two
multicast internetworks through one or more unicast routers.
To display the IP multicast tunnels on the router:
1 From the top level menu of the Administration Console, enter:
ip multicast tunnel display
2 Enter the slot of the switching module for which you want to display a
multicast interface.
Select IP stack(s) by slot (2,3,7,9-12|all) [9]:
Example IP multicast tunnel configuration:
Local Address Remote Address Metric Threshold RateLimit State
158.101.112.204 137.39.229.98
pkts in:320069 pkts out:0
2 255
peers 137.39.229.98
500
(3.8) (0xe)
