PANEL DESCRIPTION

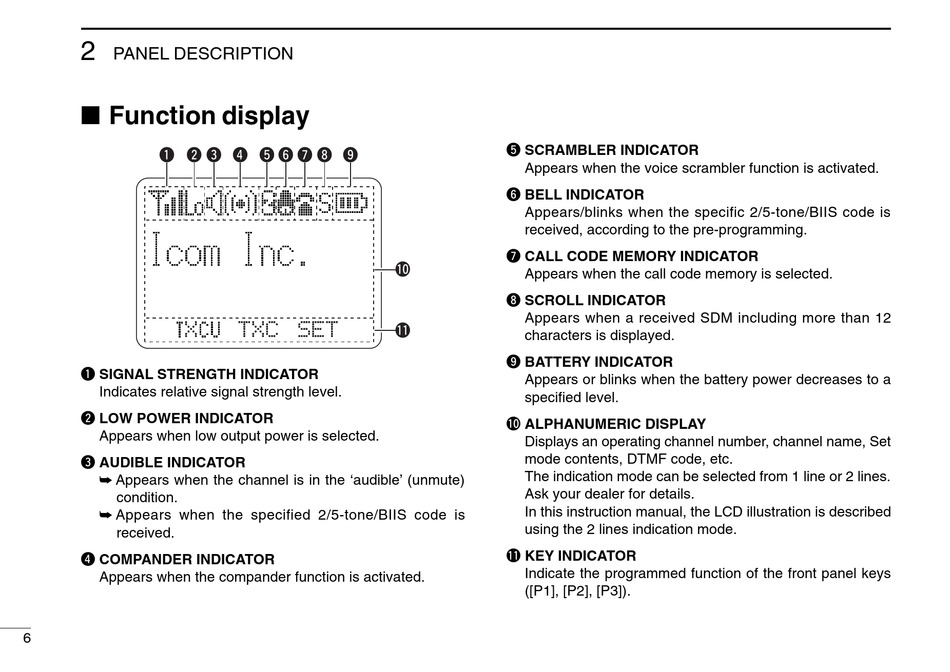

I Function display

q w
X
q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
➥ Appears when the channel is in the 'audible' (unmute)
condition.
➥ Appears when the specified 2/5-tone/BIIS code is
received.
r COMPANDER INDICATOR
Appears when the compander function is activated.
6
e r t y u i o
TXC SET
t SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
y BELL INDICATOR
Appears/blinks when the specific 2/5-tone/BIIS code is
received, according to the pre-programming.
u CALL CODE MEMORY INDICATOR
!0
Appears when the call code memory is selected.
i SCROLL INDICATOR
Appears when a received SDM including more than 12
!1
characters is displayed.
o BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
!0 ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name, Set
mode contents, DTMF code, etc.
The indication mode can be selected from 1 line or 2 lines.
Ask your dealer for details.
In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!1 KEY INDICATOR
Indicate the programmed function of the front panel keys
([P1], [P2], [P3]).
