4

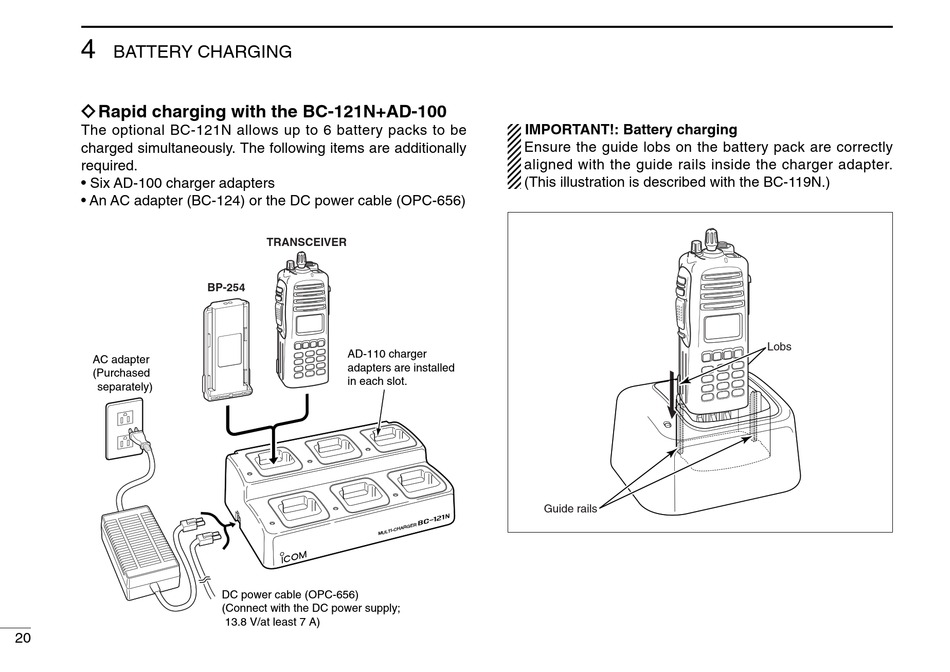

BATTERY CHARGING

ï Rapid charging with the BC-121N+AD-100
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.
• Six AD-100 charger adapters
• An AC adapter (BC-124) or the DC power cable (OPC-656)
AC adapter
(Purchased
separately)
20
TRANSCEIVER
BP-254
AD-110 charger
adapters are installed
in each slot.
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
IMPORTANT!: Battery charging
Ensure the guide lobs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-119N.)
Guide rails
Lobs
