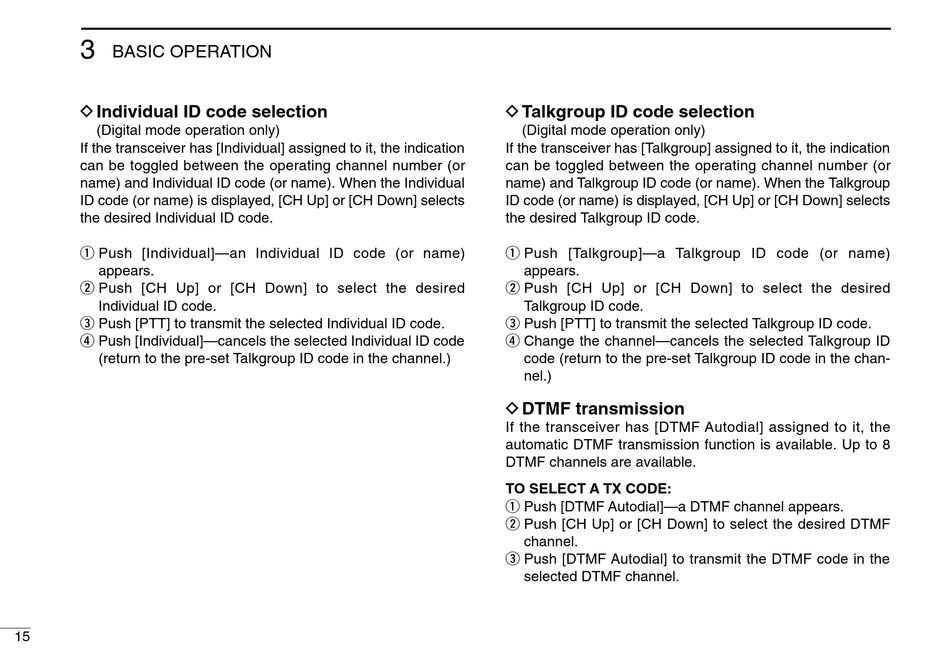

Icom IC-F9011B Instruction Manual page 20

3
BASIC OPERATION
D Individual ID code selection
(Digital mode operation only)
If the transceiver has [Individual] assigned to it, the indication
can be toggled between the operating channel number (or
name) and Individual ID code (or name). When the Individual
ID code (or name) is displayed, [CH Up] or [CH Down] selects
the desired Individual ID code.
q Push [Individual]—an Individual ID code (or name)
appears.
w Push [CH Up] or [CH Down] to select the desired
Individual ID code.
e Push [PTT] to transmit the selected Individual ID code.
r Push [Individual]—cancels the selected Individual ID code
(return to the pre-set Talkgroup ID code in the channel.)
15
D Talkgroup ID code selection
(Digital mode operation only)
If the transceiver has [Talkgroup] assigned to it, the indication
can be toggled between the operating channel number (or
name) and Talkgroup ID code (or name). When the Talkgroup
ID code (or name) is displayed, [CH Up] or [CH Down] selects
the desired Talkgroup ID code.
q Push [Talkgroup]—a Talkgroup ID code (or name)
appears.
w Push [CH Up] or [CH Down] to select the desired
Talkgroup ID code.
e Push [PTT] to transmit the selected Talkgroup ID code.
r Change the channel—cancels the selected Talkgroup ID
code (return to the pre-set Talkgroup ID code in the chan-
nel.)
D DTMF transmission
If the transceiver has [DTMF Autodial] assigned to it, the
automatic DTMF transmission function is available. Up to 8
DTMF channels are available.
TO SELECT A TX CODE:
q Push [DTMF Autodial]—a DTMF channel appears.
w Push [CH Up] or [CH Down] to select the desired DTMF
channel.
e Push [DTMF Autodial] to transmit the DTMF code in the
selected DTMF channel.
