Transfer Release Trigger - Xorcom UC912G User Manual

UC912G IP Phone

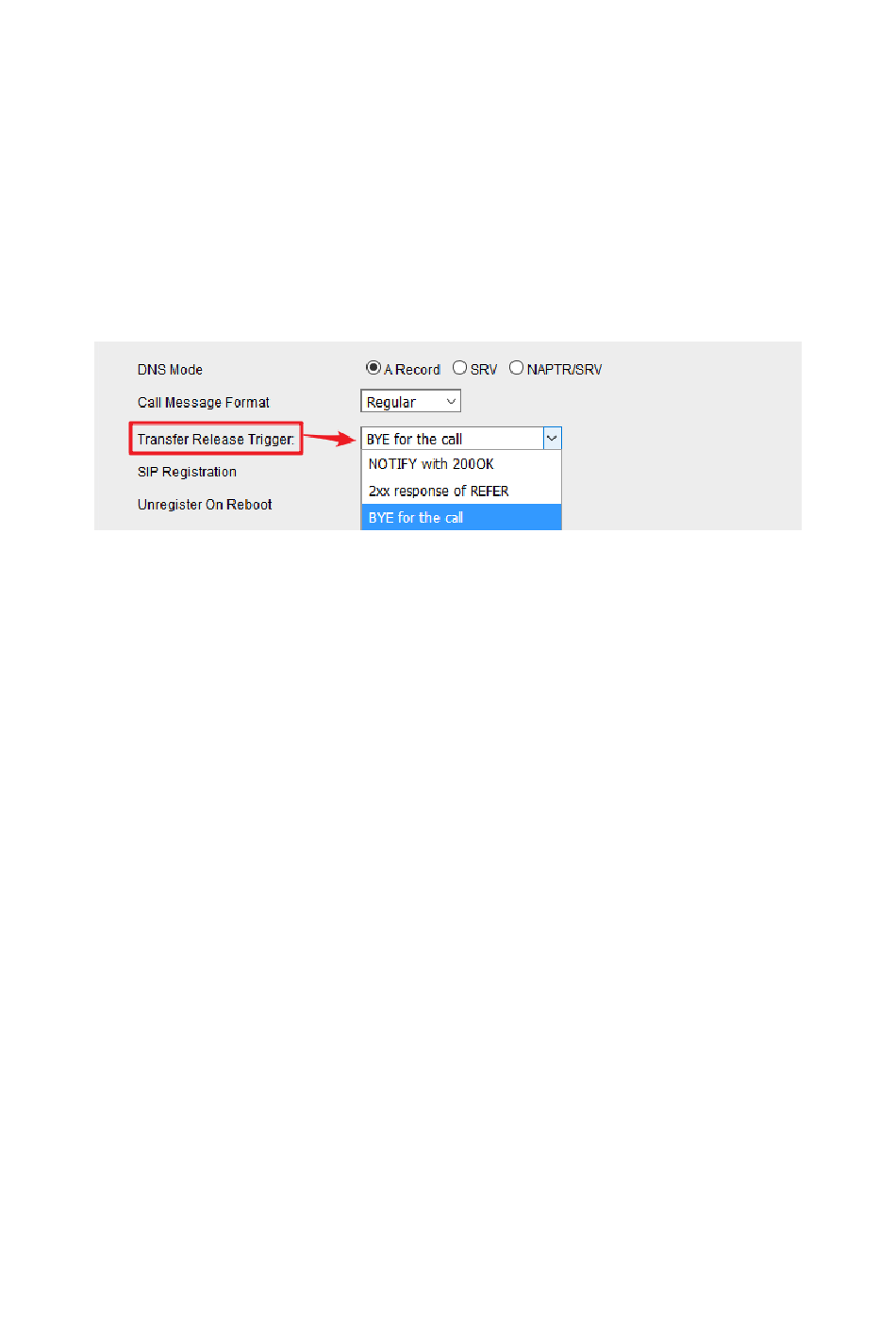

Transfer Release Trigger

This option defines when the phone sends BYE to the server to release the transferred call.
1. NOTIFY with 200OK. After receiving REFER request sended by the phone, server will send
NOTIFY to the phone, and the phone response 200OK, this is the trigger for the phone to
release the call.
2. 2xx response of REFER. The phone will not release the call until it receives a 2xx response
from the server to the phone's REFER request.
3. BYE for the call. The phone will not release the call until receiving BYE from the server.
Copyright © 2019 Xorcom Ltd. All rights reserved Page 96 of 165
