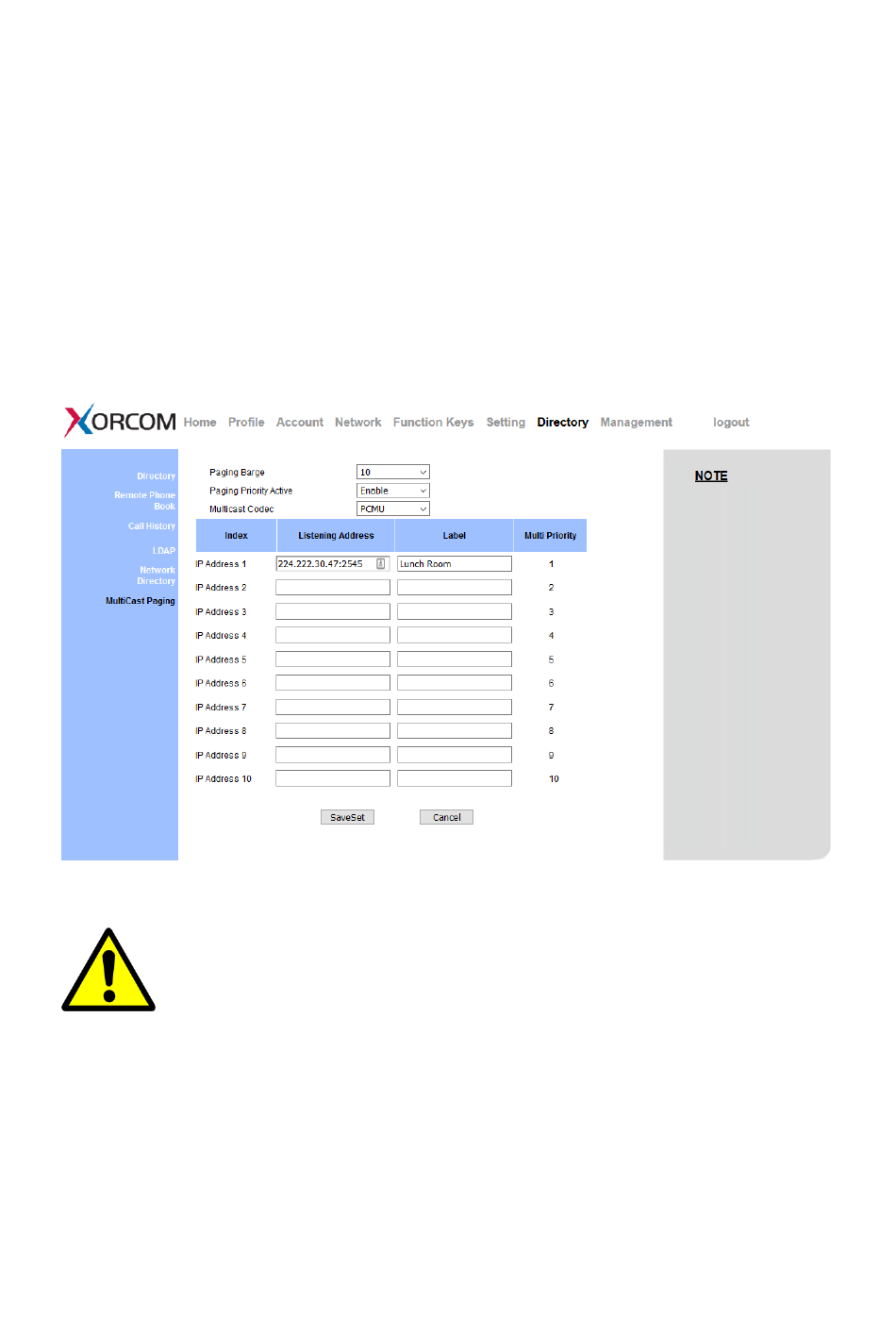

Configuring Multicast Listening Addresses using the web
interface
1. Click Directory->Multicast Paging。
2. Select a value from the pull-down list of Paging Barge.
3. Select a value from the pull-down list of Paging Priority Active.
4. Enter the multicast IP address(es) and port number (e.g., 224.5.6.20:2000) which the phone
listens to for incoming RTP multicast in the Listening Address field.
5. Enter the label in the Label field.
6. Click SaveSet button to save the configuration.
The priorities of listening to multicasting addresses can be predefined: 1 being the
highest priority, 10 with the lowest in priority order.
Both the multicast paging sender and receiver's phones play a warning tone when
establishing a multicast paging call. Listening to Multicasting addresses can be
configurable using the web interface only.
