4 Mounting
You can mount the SMA String-Monitor to a wall or to a round or square pole. The material for pole mounting is
available as an accessory (see Section 8, page 24).
Requirements for the mounting location:
☐ The mounting location can be outdoors or indoors.
☐ The mounting location must be shaded, e.g. under a protective roof.
☐ The mounting location must be suitable for the weight and dimensions of the SMA Sunny String‑Monitor.
☐ The mounting location must be suitable for the wind load.
☐ Mounting space below the SMA String Monitor when using the inline fuse connectors:
at least 800 mm.
Pole requirements:
☐ Permissible pole diameter for round pole respectively pole width for square pole:
160 mm to 370 mm
☐ The pole must be in a vertical position.
☐ The pole must be suitable for the weight of the SMA String Monitor. Weight of the SMA String-Monitor without
accessories: 35 kg.
Dimensions:

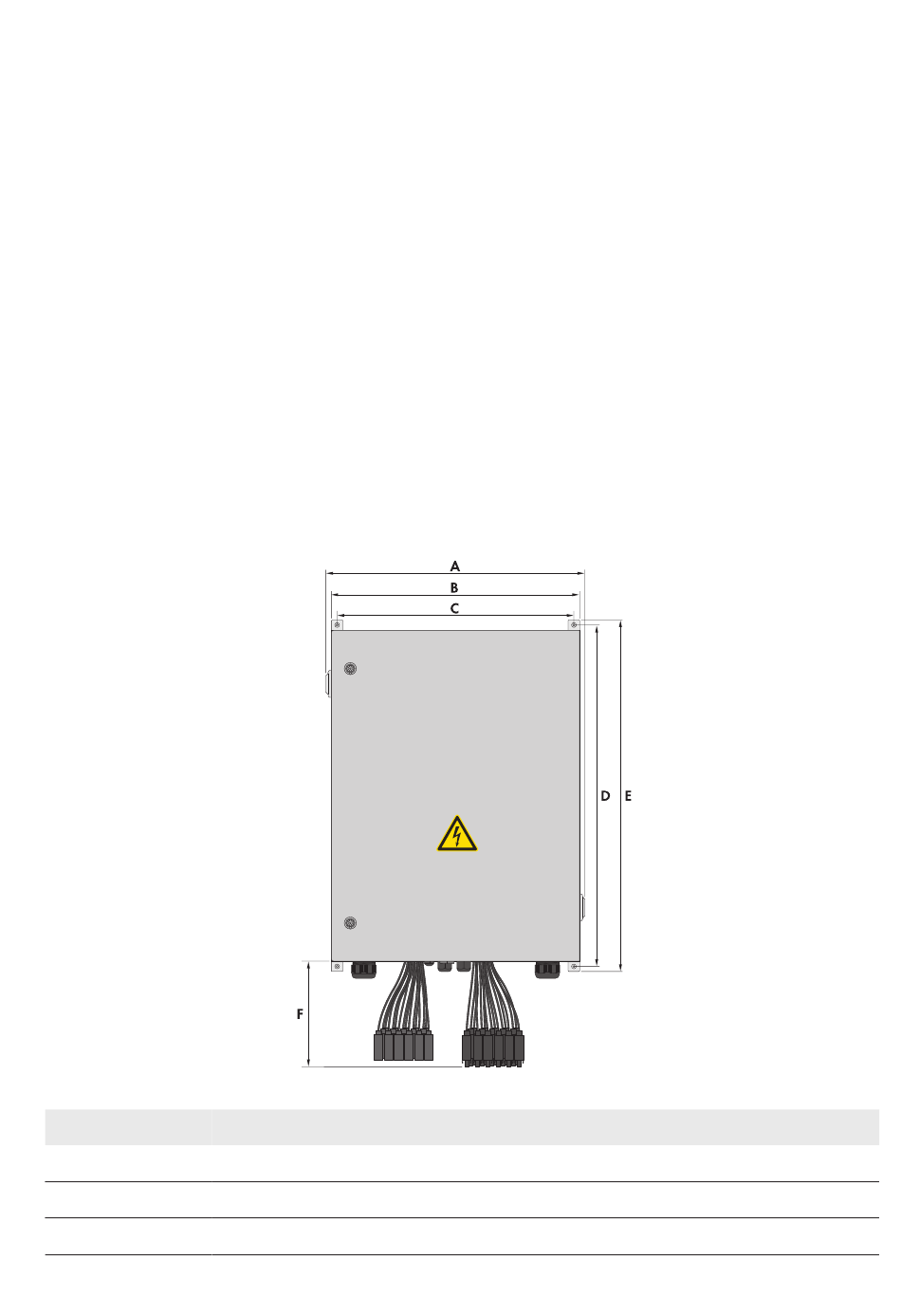

Figure 7: Dimensions of the SMA String-Monitor
Position
A
B
C
Technical Information
Explanation
630.00 mm
600.00 mm
573.00 mm
