6 Network Topology

Network Topology

Up to ten SMA String-Monitors can be connected to each string monitoring communication connection of the inverter

in line topology (number of connections for string monitoring communication see the inverter manual).

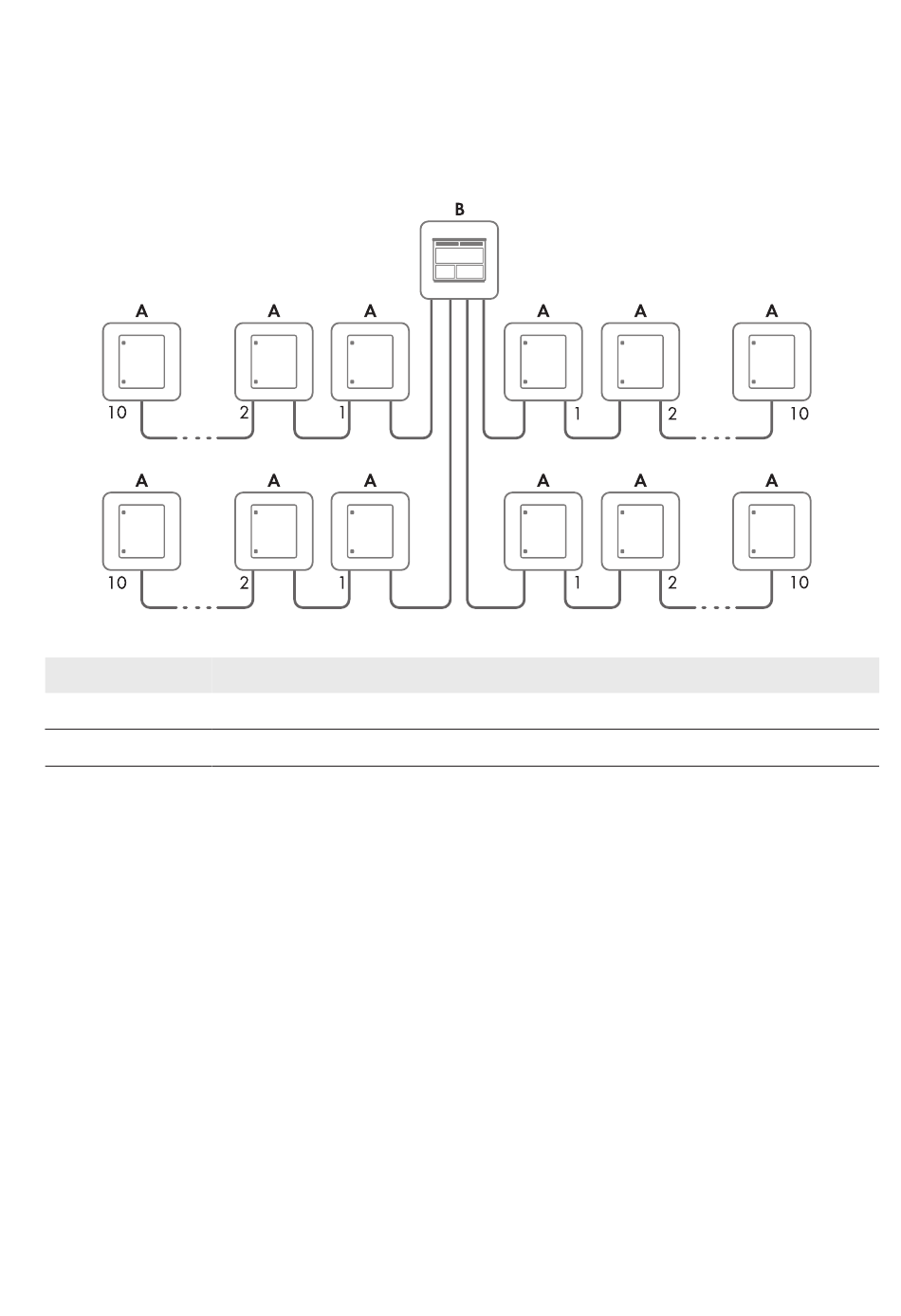

Figure 9: Network topology with SMA String-Monitor (example)

Position

The SMA String-Monitor is equipped by default with Ethernet communication. Distances of up to 100 m between two

nodes can be bridged via Ethernet. The SMA String-Monitor can be retrofitted with optical fiber communication, if

required (see Section 8, page 24). Distances of up to 2,000 m between two nodes can be bridged via optical fiber

communication.

Both communication types can be combined between two SMA String-Monitors, meaning that you can use Ethernet

communication and/or optical fiber communication for the communication input and for the communication output

depending on the distance to be bridged.

Technical Information

Designation

SMA String-Monitor

Inverter (example)

6 Network Topology

SSMUXX1015-TI-en-10
