4 Mounting
Position
D
E
F

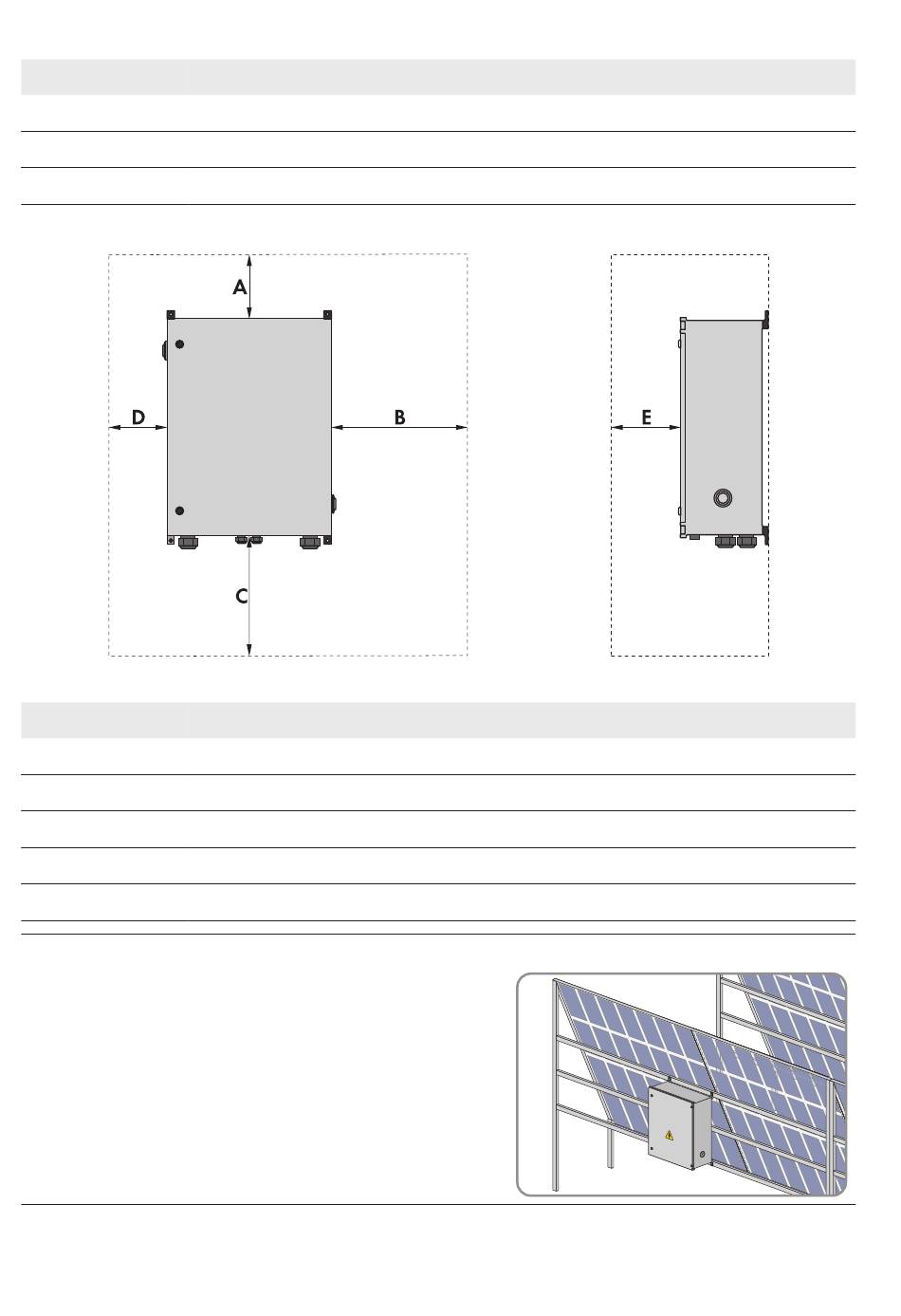

Observe minimum clearances:
Figure 8: Minimum clearances
Position
A
B
C
D
E
Example: mounting on the PV array structure
• If the PV array is mounted on a free-standing structure, the
SMA String‑Monitor can be fixed to this structure in a shaded
position. Make sure that the SMA String-Monitor enclosure is
not mounted in the path of water flowing off the module
surface.
10 SSMUXX1015-TI-en-10
Explanation
825.60 mm
850.00 mm
250.00 mm
Explanation
200 mm
650 mm
800 mm
150 mm
650 mm
