Application Examples

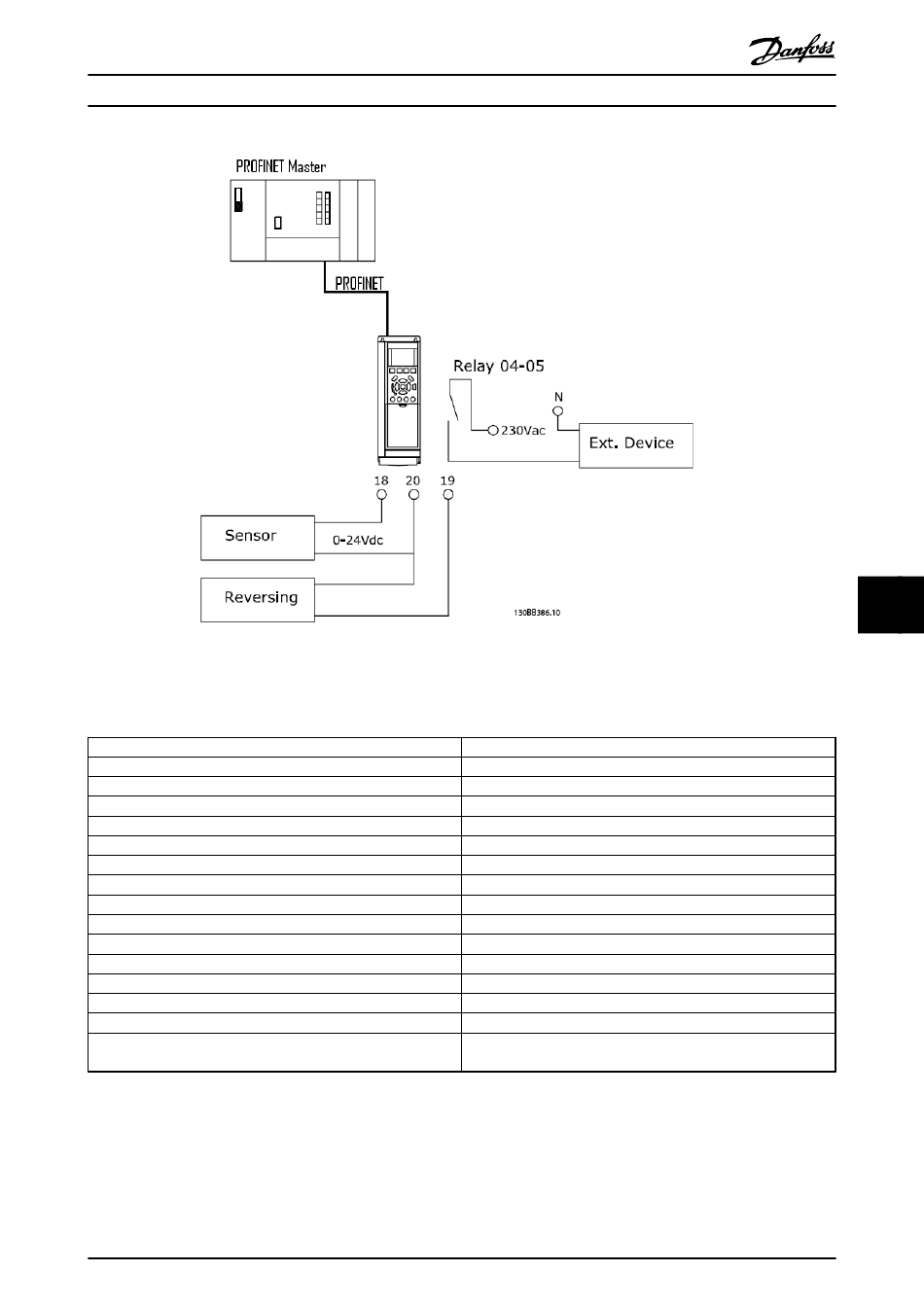

Illustration 9.1
Program the frequency converter as shown in Table 9.2:
Parameter
4-10 Motor Speed Direction
5-10 Terminal 18 Digital Input
5-11 Terminal 19 Digital Input
5-40 Function Relay
Parameter 8-03 Control Timeout Time
Parameter 8-04 Control Timeout Function
Parameter 8-10 Control Profile
8-50 Coasting Select
Parameter 8-51 Quick Stop Select
8-52 DC Brake Select
8-53 Start Select
Parameter 8-54 Reversing Select
8-55 Set-up Select
8-56 Preset Reference Select
9-16 PCD Read Configuration
Table 9.2
MG90U302
Operating Instructions
Setting
[2] Both directions
[0] No operation
[10] Reversing
[36/37] Control word bit 11/12
1 s
[2] Stop
[0] FC Profile
[1] Bus
[1] Bus
[1] Bus
[1] Bus
[2] Logic AND
[1] Bus
[1] Bus
[2] Sub index 16-16 Torque [Nm]
[3] Sub indes 16-60 Digital Input
