How to Install
By using the hardware switches it is possible to set 253
different station names according to Table 3.3 (FC 302 used
in this example):
Switch
3 3
12-08 Host Name
'FC-302-005'
'FC-302-035'
'FC-302-082'
'FC-302-212'
Table 3.3 Host Names Setting
The Host Name change comes into effect at the next
power-up, and can be read in 12-08 Host Name.
16
Operating Instructions
8 7 6 5 4 3
+128 +64 +32 +16 +8 +4
OFF OFF OFF OFF OFF ON OFF ON
OFF OFF ON OFF OFF OFF ON
OFF ON OFF ON OFF OFF ON OFF
ON ON OFF ON OFF ON OFF OFF
Danfoss A/S © Rev. 2014-02-27 All rights reserved.

3.3 LED Behaviour

The option has 3 bi-coloured LEDs that allow a fast and
detailed diagnosis. The 3 LEDs are each linked to its
unique part of the PROFINET option, see Table 3.4.
2 1
+2 +1
LED label
MS
ON
NS1
NS2
Table 3.4 LED Label
Ethernet Port 1
MS LED
NS LED's

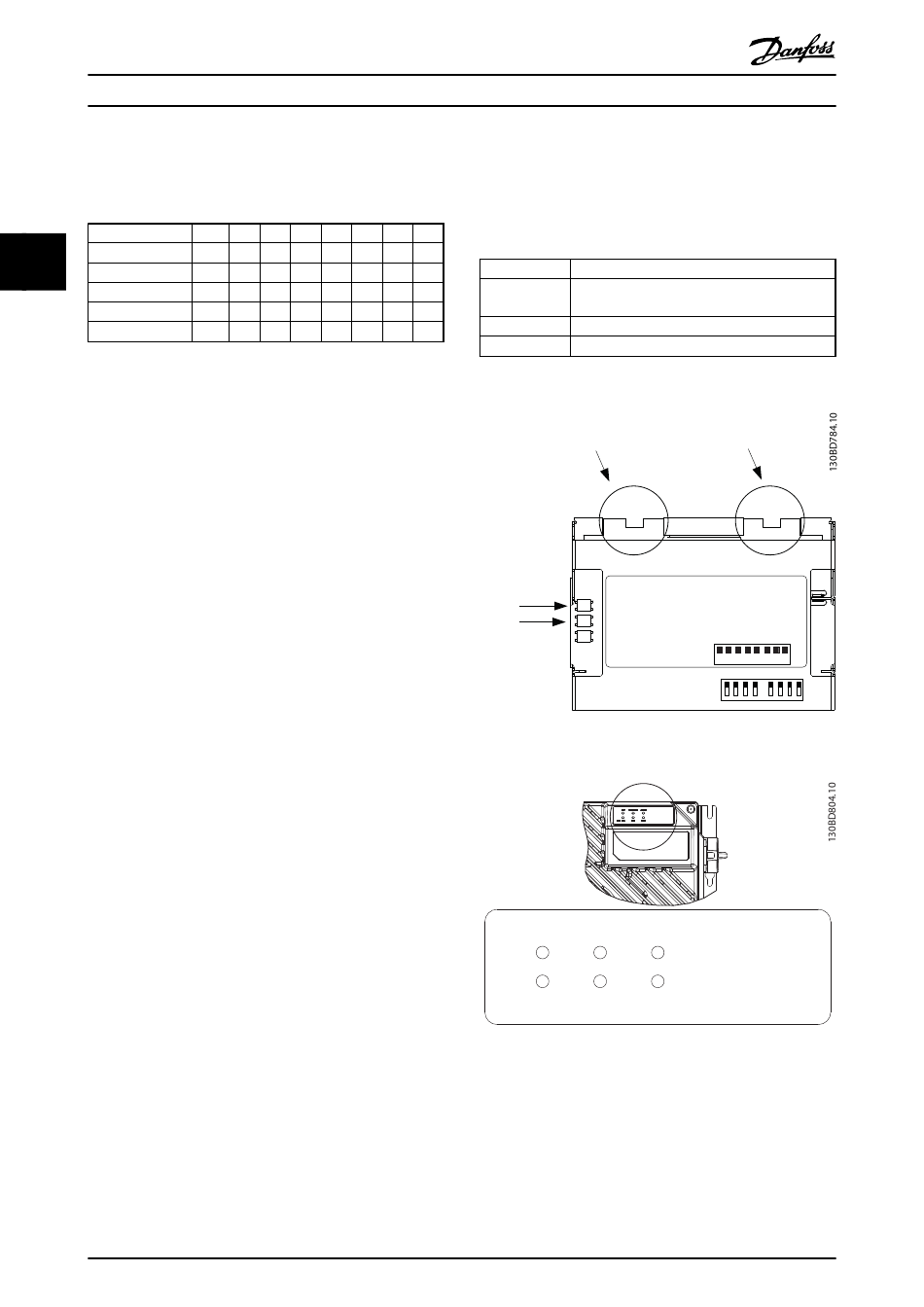

Illustration 3.13 Overview of the Option
ON
Bus MS
Illustration 3.14 LED Panel for FCD 302
The LED is visible from the outside of an FCD 302.
Description
Module Status, reflects the activity on the
PROFINET stack
Network Status 1, reflects the activity on port 1
Network Status 2, reflects the activity on port 2
Ethernet Port 2
Ethernet Port 1
MCA 120 Option A
PROFINET 130B1135
MS
NS1
MAC: 00:1B:08:XX:XX:XX
NS2
Host Name
SW. ver. 3.00 (TM: 3:15)
8 7 6 5 4 3 2 1
WARNING ALARM
NS2
NS1
Ethernet Port 2
