User can introduce a signal in the ADC pin directly and use the AT command "AT+CADC" to get the raw
data which is between 0 and 4095. The data can be transformed to any type such as voltage, temperature
etc. Please refer to document [1].
Note: The input signal voltage value in ADC must not be higher than 2.2V.

3.12.4 LDO

SIM5320AL has a LDO power output, namely VREG_AUX. The LDO is available and output voltage is
2.85v by default, rated for 250mA. User can switch the LDO on or off by the AT command
"AT+CVAUXS" and configure its output voltage by the AT command "AT+CVAUXV".
Table 33: Electronic characteristic
Symbol Description
VREG_AUX Output voltage
I Output current
O

4 RF Specification

4.1 RF Specification
Table 34: Conducted transmission power
Frequency
WCDMA 1900
WCDMA 850
Table 35: Operating frequencies
SIM5320AL_User Manual_V1.01

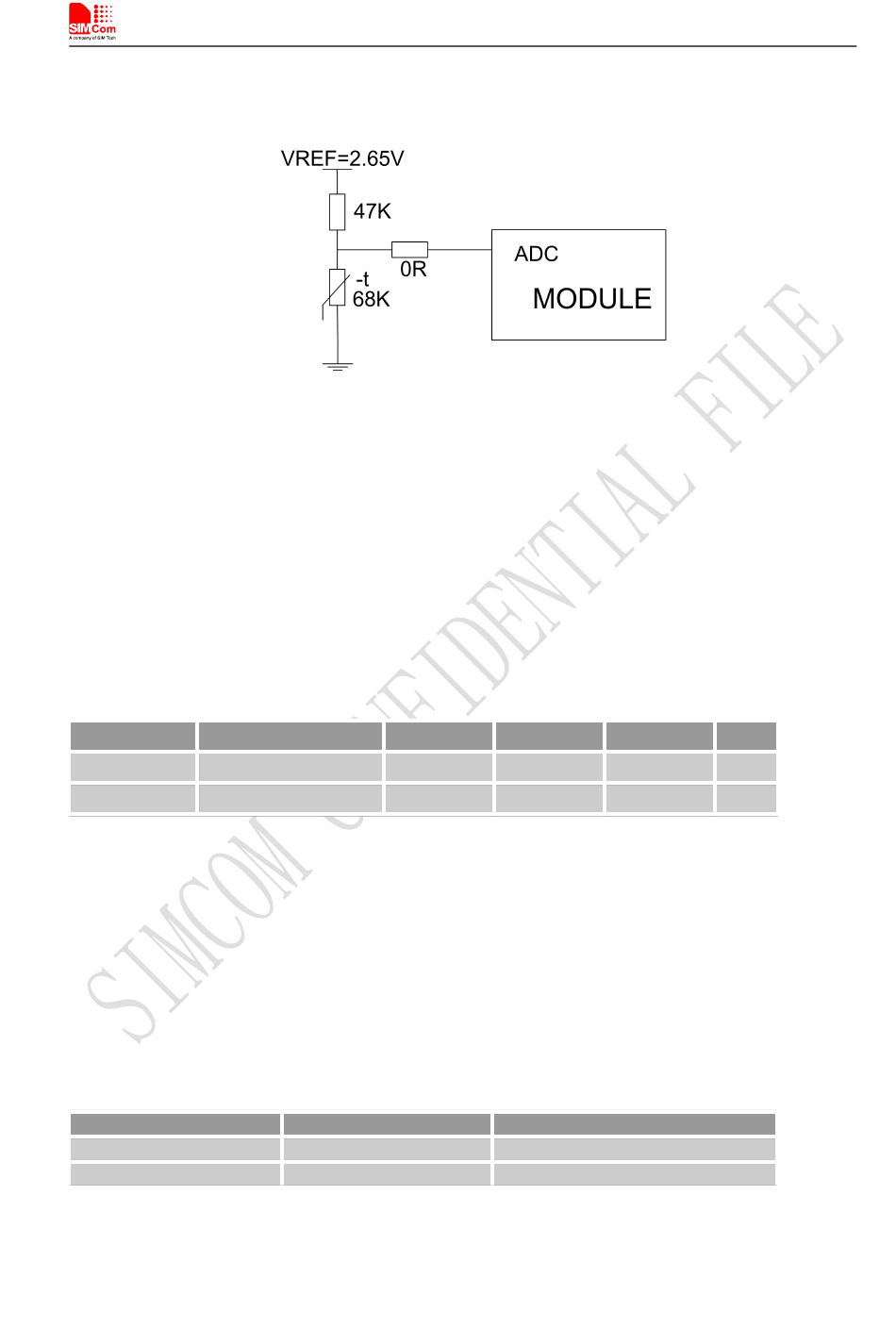

Figure 38: Reference circuit
Min
1.5
-
Max
24dBm +1/-3dB
24dBm +1/-3dB
50
Smart Machine Smart Decision
Typ Max
2.85 3.05
- 250
Min
-56dBm ±5dB
-56dBm ±5dB
Unit
V
mA
2014-08-20
