PCM_DIN/GPIO0
PCM_SYNC/GPIO2
PCM_DOUT/GPIO5
PCM_CLK/GPIO3

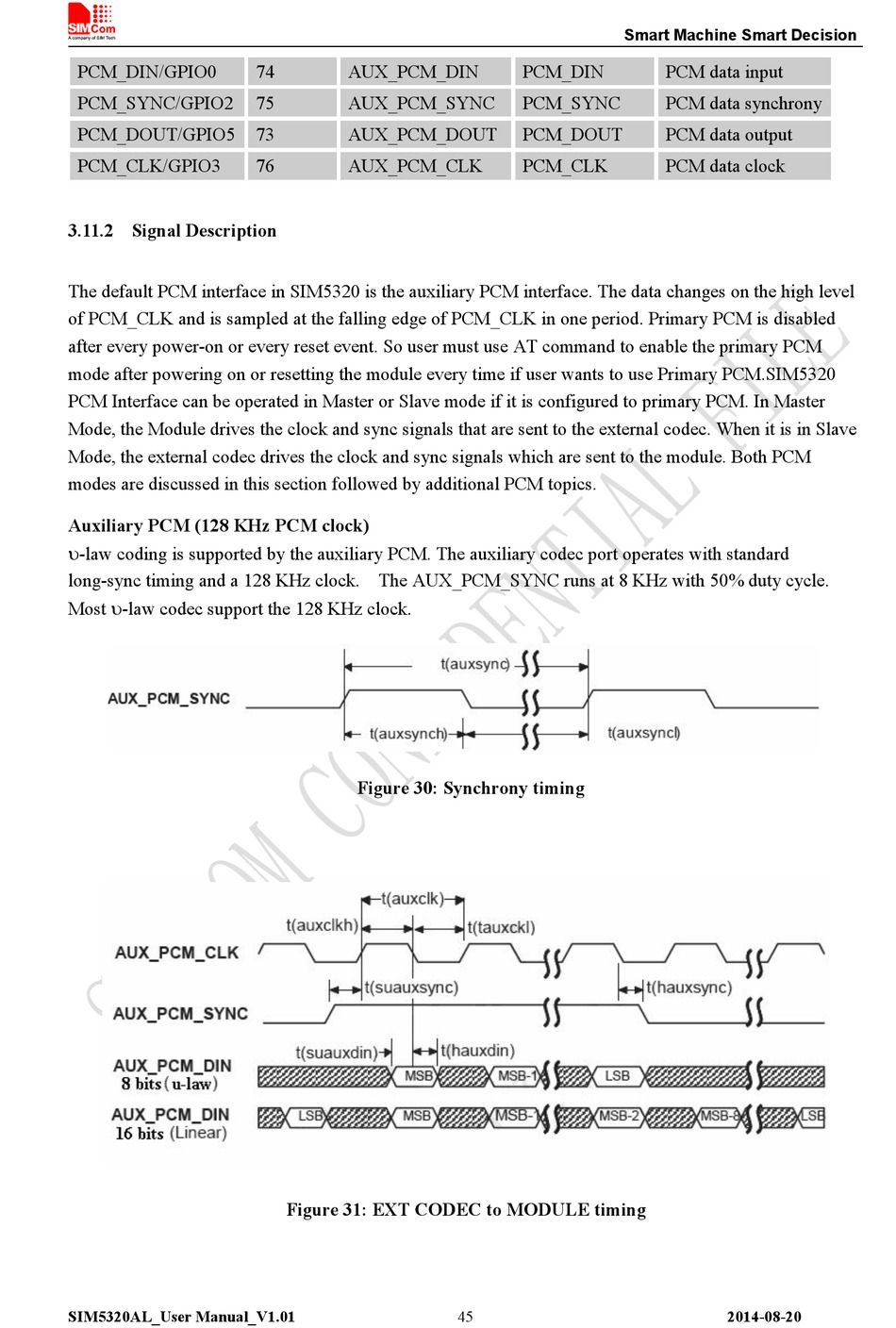

3.11.2 Signal Description

The default PCM interface in SIM5320 is the auxiliary PCM interface. The data changes on the high level
of PCM_CLK and is sampled at the falling edge of PCM_CLK in one period. Primary PCM is disabled
after every power-on or every reset event. So user must use AT command to enable the primary PCM
mode after powering on or resetting the module every time if user wants to use Primary PCM.SIM5320
PCM Interface can be operated in Master or Slave mode if it is configured to primary PCM. In Master
Mode, the Module drives the clock and sync signals that are sent to the external codec. When it is in Slave
Mode, the external codec drives the clock and sync signals which are sent to the module. Both PCM
modes are discussed in this section followed by additional PCM topics.
Auxiliary PCM (128 KHz PCM clock)

-law coding is supported by the auxiliary PCM. The auxiliary codec port operates with standard
long-sync timing and a 128 KHz clock. The AUX_PCM_SYNC runs at 8 KHz with 50% duty cycle.

Most -law codec support the 128 KHz clock.
SIM5320AL_User Manual_V1.01
74 AUX_PCM_DIN
75 AUX_PCM_SYNC
73 AUX_PCM_DOUT
76 AUX_PCM_CLK
Figure 30: Synchrony timing
Figure 31: EXT CODEC to MODULE timing
Smart Machine Smart Decision
PCM_DIN
PCM_SYNC
PCM_DOUT
PCM_CLK
45
PCM data input
PCM data synchrony
PCM data output
PCM data clock
