SimCom SIM5320AL User Manual page 46

Table 29: Timing parameters
Parameter Description
T(auxsync) AUX_PCM_SYNC cycle time
T(auxsynch) AUX_PCM_SYNC high time
T(auxsyncl) AUX_PCM_SYNC low time
T(auxclk)* AUX_PCM_CLK cycle time
T(auxclkh) AUX_PCM_CLK high time
T(auxclkl) AUX_PCM_CLK low time
AUX_PCM_SYNC setup time high before
T(suauxsync)
falling edge of PCM_CLK
AUX_PCM SYNC hold time after falling edge
T(hauxsync)
of PCM_CLK
AUX_PCM_DIN setup time before falling
T(suauxdin)
edge of AUX_PCM_CLK
AUX_PCM_DIN hold time after falling edge
T(hauxdin)
of AUX_PCM_CLK
Delay
T(pauxdout)
AUX_PCM_DOUT valid
*Note: T(auxclk) = 1/(128 KHz).
Primary PCM (2048 KHz PCM clock)
SIM5320 also supports 2.048 MHz PCM data and sync timing for
PCM interface. User can use AT command to take the mode you want as discussed above.
SIM5320AL_User Manual_V1.01

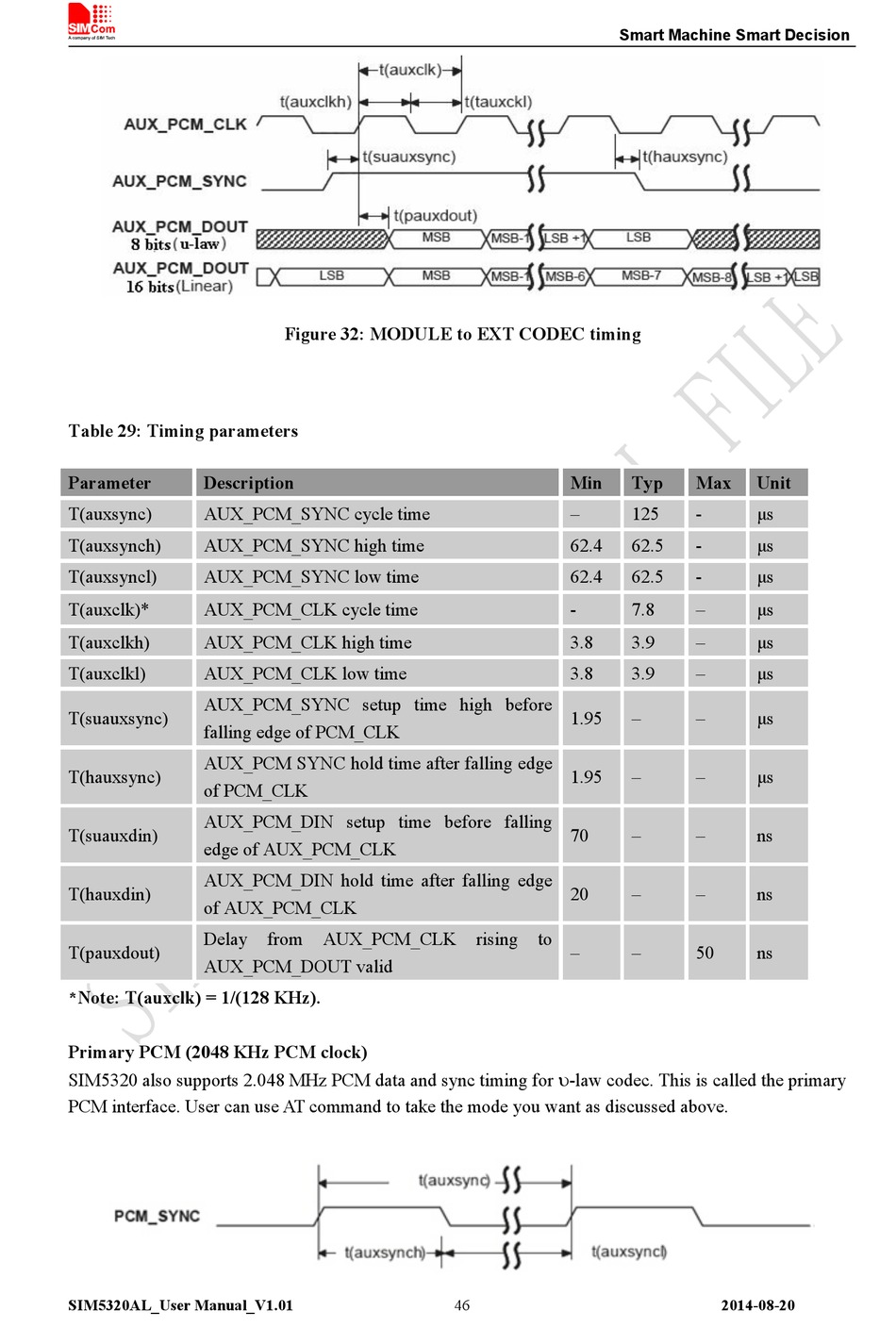

Figure 32: MODULE to EXT CODEC timing
from AUX_PCM_CLK
Smart Machine Smart Decision
Min
–
62.4
62.4
-
3.8
3.8
1.95
1.95
70
20
rising to
–

-law codec. This is called the primary
46
Typ Max Unit
125 - μs
62.5 - μs
62.5 - μs
7.8 – μs
3.9 – μs
3.9 – μs
– – μs
– – μs
– – ns
– – ns
– 50 ns
2014-08-20
