6. ROOM DISTRIBUTION SYSTEM SPARE PARTS

213
83
210
80
6.3 List of room distribution system spare
parts
ref. description
73 M G1/8" plug
74 Atomising nozzle MTP1 2.7 l/h
78 M 1/8" NPT plug
79 Atomising nozzle MTP0 1.45 l/h
200 Central drain solenoid valve kit
201 Drain solenoid valve kit for manifold UAKVAL000*
202 Capacity-control solenoid valve kit
206 Manifold with 4 holes for nozzles,
step 600
207 Manifold with 7 holes for nozzles,
step 300
208 Extension kit d.10 L= 3 m; one
stainless steel pipe
Extension kit d.10 L= 6 m; two
stainless steel pipes
extension pipe d. 10 L= 12 m (four
stainless steel pipes)
extension pipe d.10 L= 18 m; six
stainless steel pipes
209 straight terminal for d.10 pipe
210 straight G1/4"M terminal for d.10
pipe
211 straight G1/8"M terminal for d.10
pipe
212 female "T" for d.10 pipe
213 female elbow for d.10 pipe
214 female elbow for d.10 x1/8" pipe
215 female "X" for d.10 pipe
*: 0= non-aggressive water; 1= aggressive water.
202
210
206
215
201
83
83
200
212
83
210
206
207
210
83
74
78
79
200
74
78
79

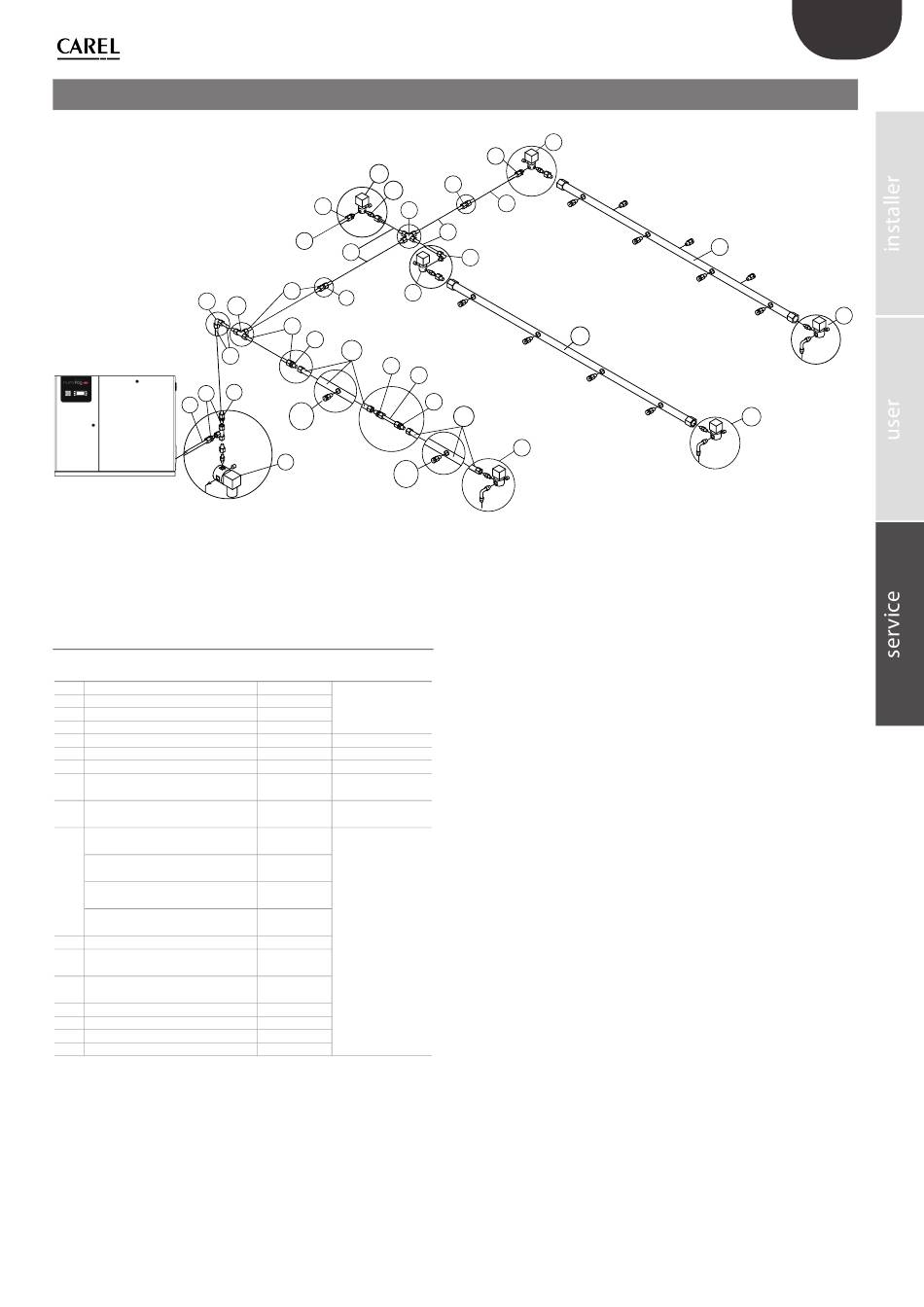

Fig. 6.a
code notes
1309633AXX Ref. Fig. 5.b
UAKMTP1000
1309639AXX
UAKMTP0000
UAKCD0000*
UAKVALNC00
UAKC4FP600 4 holes on 1 side
UAKC7FP300 4+3 holes on 2 sides
UAKT030000 ref fi g 7a
UAKT060000
UAKT012000
UAKT018000
UAKTD00000
UAKTD14000
UAKTD18000
UAKTT00000
UAKTG00000
UAKTG18000
UAKTX00000
Tab. 6.a
202
211
200
83
83
214
202
206
83
210
206
207
201
13 "humiFog multizone - spare parts" +0300068IE - rel. 1.0 - 15.01.2014
