Stirrer Drive - Infors HT Labfors 5 Cell User Instructions

Labfors 5 Cell - Single-Use Vessel Option
Setup and Function

4.1.3 Stirrer Drive

Page 12 of 31

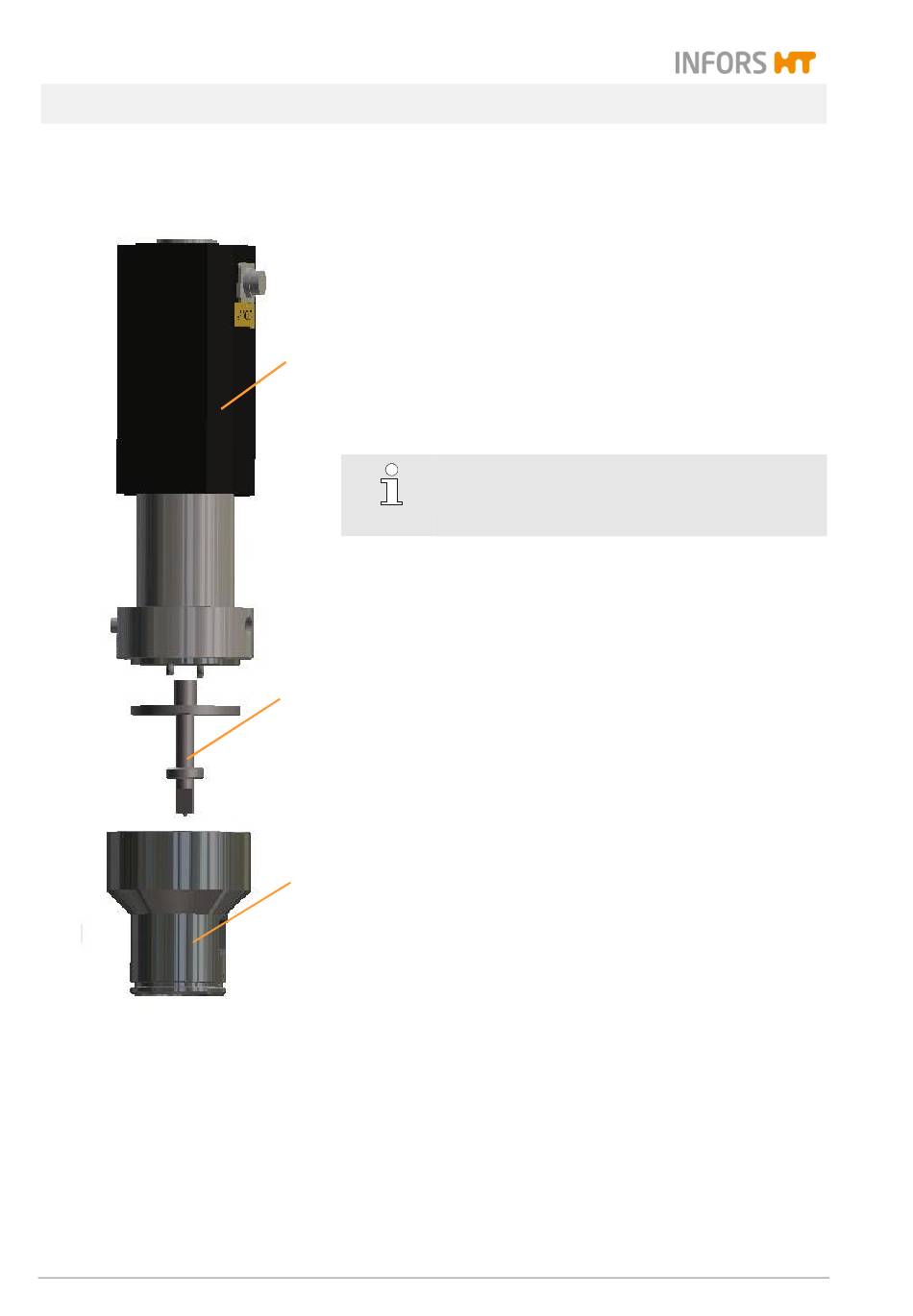

1 Motor
2 Coupling adaptor
3 Adaptor sleeve
The vessel stirrer shaft is driven by the brushless DC standard
1
motor of Labfors 5 Cell.
The magnetic coupling adaptor must be fitted onto the motor and
the adaptor sleeve put on the drive hub on the top plate of the
single-use vessel. Then the motor can easily be connected.
NOTICE!
The coupling adaptor is only compatible with the
standard motor for Labfors 5 Cell.
2
3
