W
ISYCOM IR PROGRAMMER
Wisycom IR Programmer allows reading, modifying and updating the MTB40 device
configuration.
It is necessary to:

install Wisycom IR Programmer (version 1.3.2.0 or above)
WARNING: If it is the first installation and Wisycom USB driver has not already installed
in the PC, install the USB driver (run C:\Program Files (x86)\Wisycom\MTP&MTH
Infrared Programmer (TX)\Drivers\ DriverInstaller.exe)

connected the programmer UPK300 or the receiver MRK950/MRK960 to the PC thru
USB connection

run the program

enable the IRDA communication on the transmitter
NOTE: Wisycom IR Programmer does not work whit MRK950/MRK960 if it is connected
to the PC using an Ethernet cable.

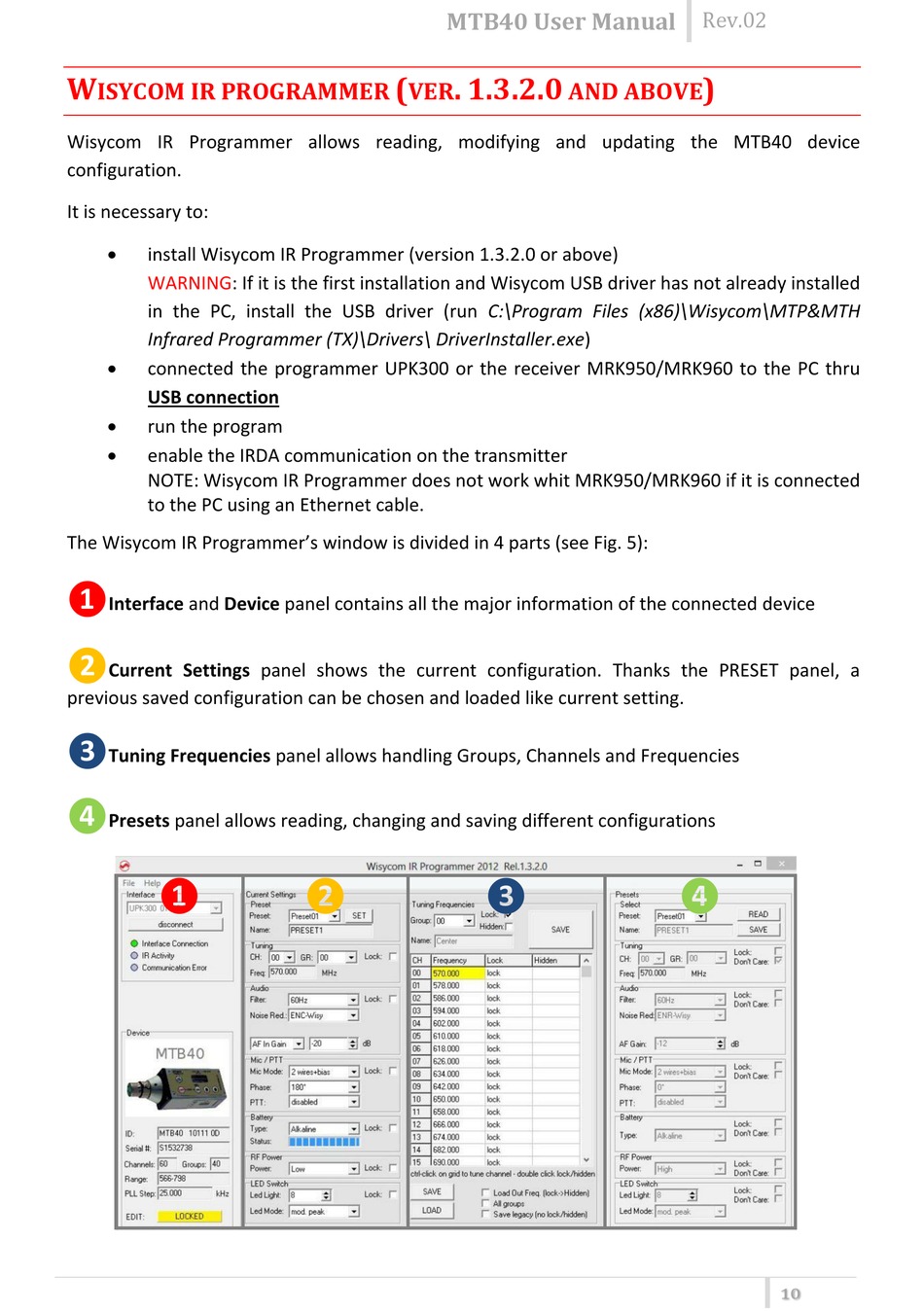

The Wisycom IR Programmer's window is divided in 4 parts (see Fig. 5):
❶
Interface and Device panel contains all the major information of the connected device
❷
Current Settings panel shows the current configuration. Thanks the PRESET panel, a
previous saved configuration can be chosen and loaded like current setting.
❸
Tuning Frequencies panel allows handling Groups, Channels and Frequencies
❹
Presets panel allows reading, changing and saving different configurations
❶
