Using < > selector all menus can be accessed in sequence, push <ON/SEL> to enter edit
mode:
< > to setup field
<ON/SEL> again to confirm changes and exit.
exit without confirmation if
-no button is pressed after a few seconds (4sec) time out
or
-OFF button is pressed

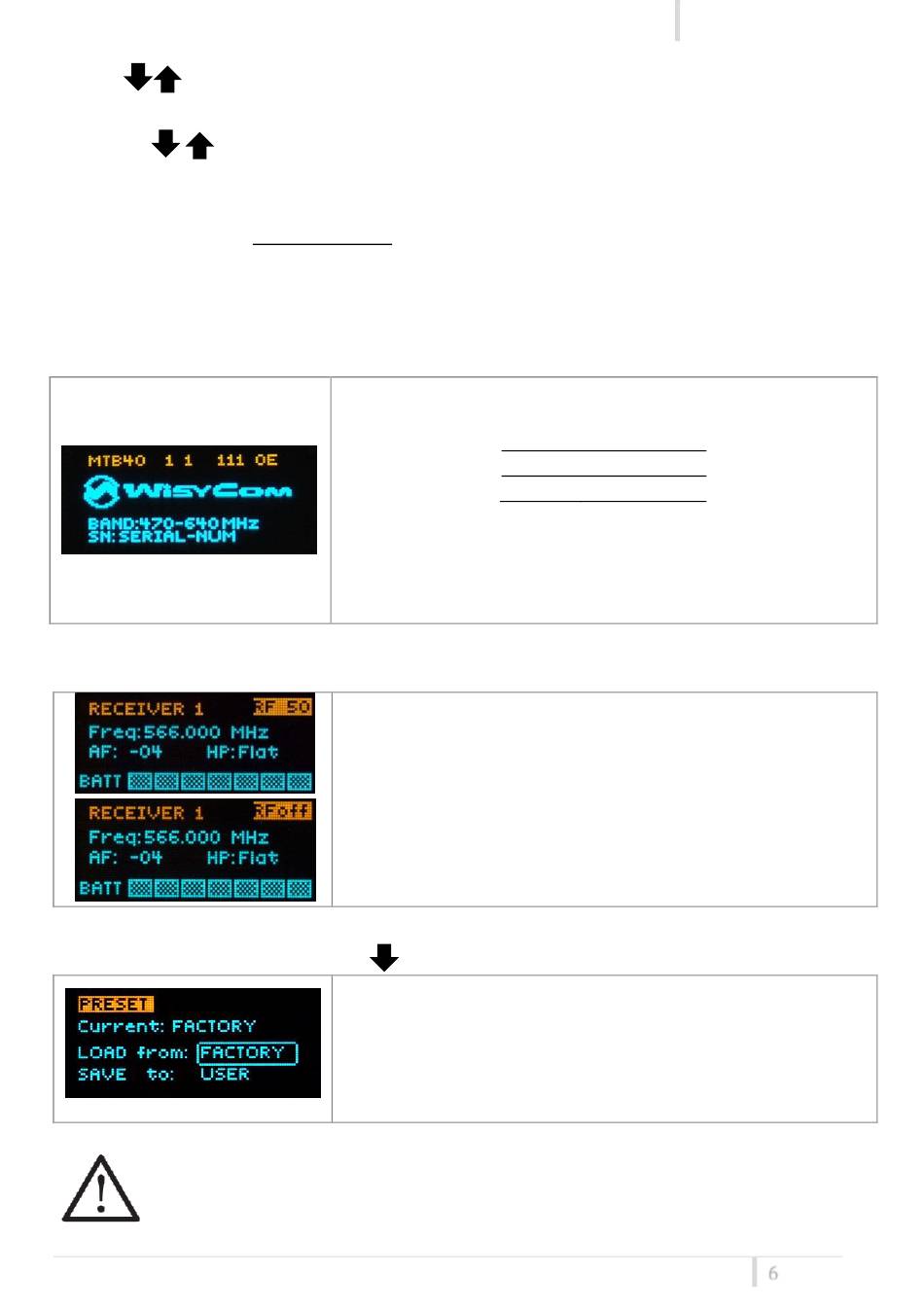

<START UP> menu
These menus are displayed during power up for few seconds.
<STATUS> menu
This is the first menu displayed after power up.
<PRESET> menu
This menu can be entered by pushing
The other 8 configuration presets are user programmable thru the infrared and the PC
interface (using the programmer UPK 300 or the receiver MRK950/MRK960 thru USB
connection).
All parameters can be "left unchanged", "changed" or "changed and lock", allowing a
very flexible way to pre-program MTB40 configuration.
MTB40 User Manual
This menu gives indication on product:
- product id (MTB40),
- a number which identify the working band
1
2
- a number which identify the hardware version
- the firmware release (111.0E),
- the band in extended format and
- the serial number.
Keep selector pushed to hold this menu!
Major info are displayed:
- Current channel/group or the receiver name if the MTB40 is
already synchronized with a receiver
- Current frequency (i.e. 566.000 MHz)
- Mic gain (i.e. AF: -04 dB) and high pass filter (i.e. HP: Flat Hz)
- "RF 50" or "RF OFF" on top right if RF transmission is ON or
OFF
- Batteries charger (a bar with 7 level)
.
MTB40 can recall configuration presets. "FACTORY" recall the
Wisycom factory configuration. "USER" recall the user
configuration (the transmitter configuration is copied into the
USER using the "save to" submenu). All the parameters of
"USER" menus are not locked by default, thus this is quick way
to unlock features!
Rev.02
470-640
566-798
