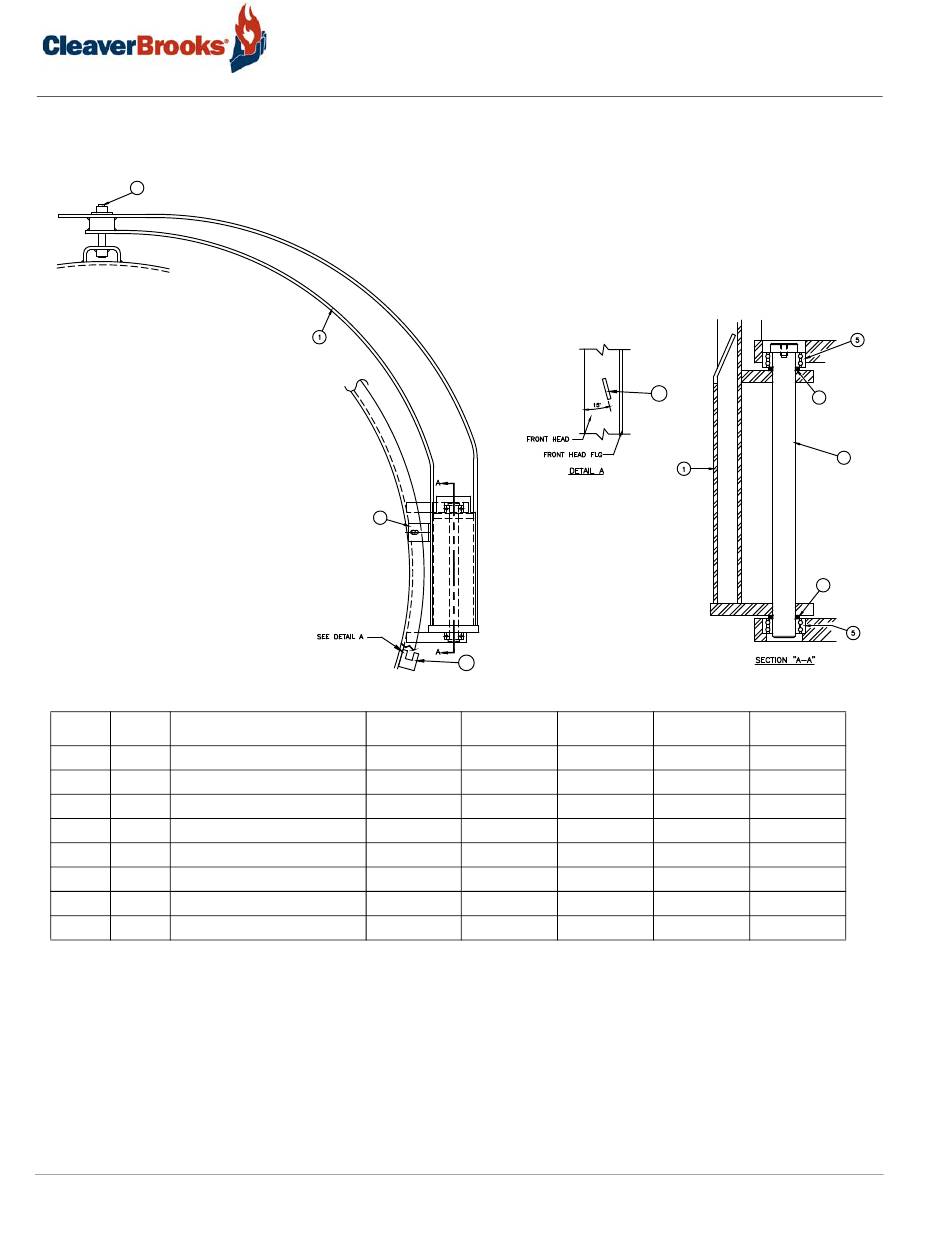

9.15 — Front Davit Assembly
2
Item Qty Description
1 1 Davit Arm (right hand)
2 1 Stud
3 1 Restraint Tab
4 1 Oil Gun Mounting Bracket
5 2 Double Row Ball Bearing
6 1 Front Hinge Pin
7 1 Spacer
8 1 Washer
9-18
3
4
67" 78"
287-00088 287-00048
841-01594 841-01594
011-00115 011-00115
008-03326 008-03328
807-00031 807-00031
056-00026 056-00026
077-00386 077-00386
952-00250 952-00250
4
85" 92"
287-00082 287-00110
841-01585 841-01585
011-00115 011-00115
008-03328 008-03328
807-00324 807-00324
056-00027 056-00027
077-00386 077-00386
952-00250 952-00250
CBEX Elite 100-1200 HP
Parts
7
6
8
106"
287-00103
841-01930
011-00116
807-00324
056-00027
952-00250
952-00250
750-368
