The service computer is connected via the connection panel. The ethernet interface
"SW1" is used by default for this purpose; with controller redundancy, the ethernet inter-
face "SW2" is additionally used for the connection to the second BSCU. During the con-
nection, the service computer is automatically assigned a local service IP address for the
respective DIB-R5 advanced.

Connecting the service computer

Preparation:
n The working appliances must be available, refer to
for function tests" on page 68.
n The service computer must have been started.
n The DIB-R5 advanced must be switched on.

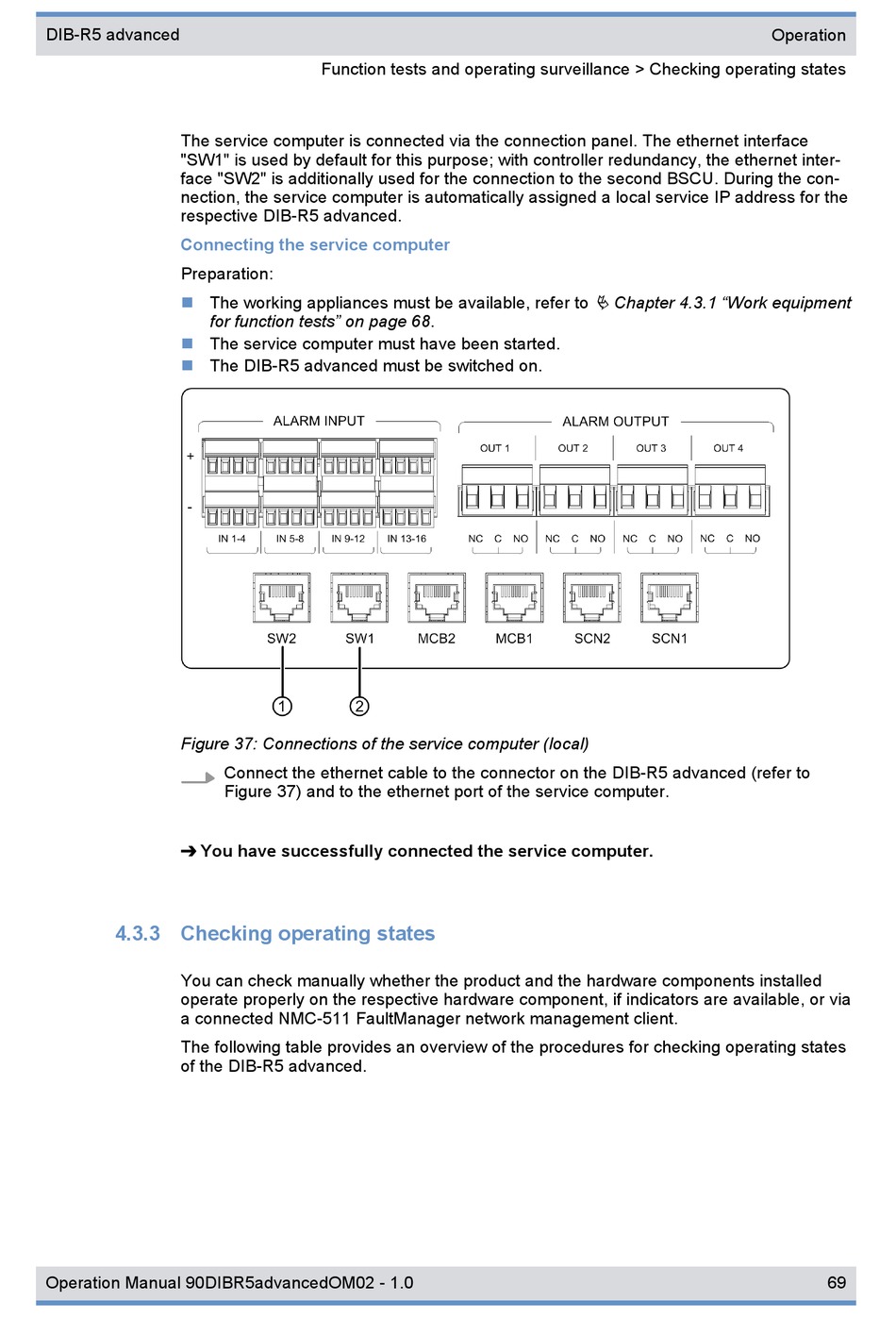

Figure 37: Connections of the service computer (local)
➔ You have successfully connected the service computer.
4.3.3 Checking operating states
You can check manually whether the product and the hardware components installed
operate properly on the respective hardware component, if indicators are available, or via
a connected NMC-511 FaultManager network management client.
The following table provides an overview of the procedures for checking operating states
of the DIB-R5 advanced.
Operation Manual 90DIBR5advancedOM02 - 1.0
Function tests and operating surveillance > Checking operating states
Connect the ethernet cable to the connector on the DIB-R5 advanced (refer to
Figure 37) and to the ethernet port of the service computer.
