3.4.3 Antenna configurations

The following table provides an overview of the antenna configurations that are described
in the following chapters.
Overview of antenna configurations
Antenna configuration
Ä Antenna configuration with four CHUs
and DUPLEXER
Ä Antenna configuration with four CHUs
and TX FILTER
3.4.3.1

Antenna configuration with four CHUs and DUPLEXER

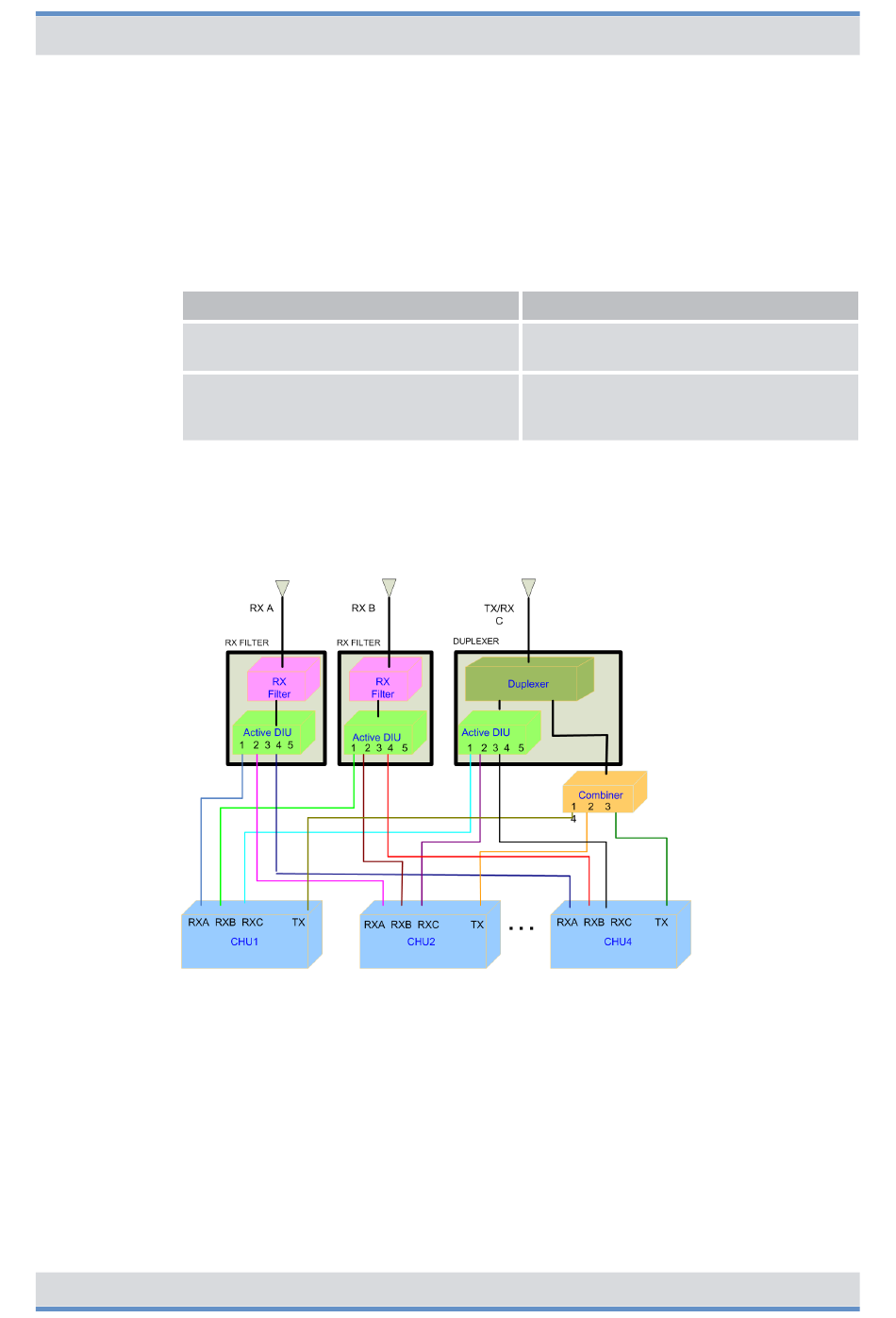

The following figure shows the antenna configuration with four CHUs and DUPLEXER.
Figure 35: Antenna configuration with four CHUs and DUPLEXER
3.4.3.2

Antenna configuration with four CHUs and TX FILTER

The following figure shows the antenna configuration with four CHUs and TX FILTER.
Operation Manual 90DIBR5advancedOM02 - 1.0
Wiring diagrams> Antenna configurations
Described in
Ä Antenna configuration with four CHUs
and DUPLEXER
Ä Chapter 3.4.3.2 "Antenna configuration
with four CHUs and TX FILTER"
on page 59
Product description
59
