Hytera ACCESSNET-T IP DIB-R5 advanced Operation Manual page 23

DIB-R5 advanced

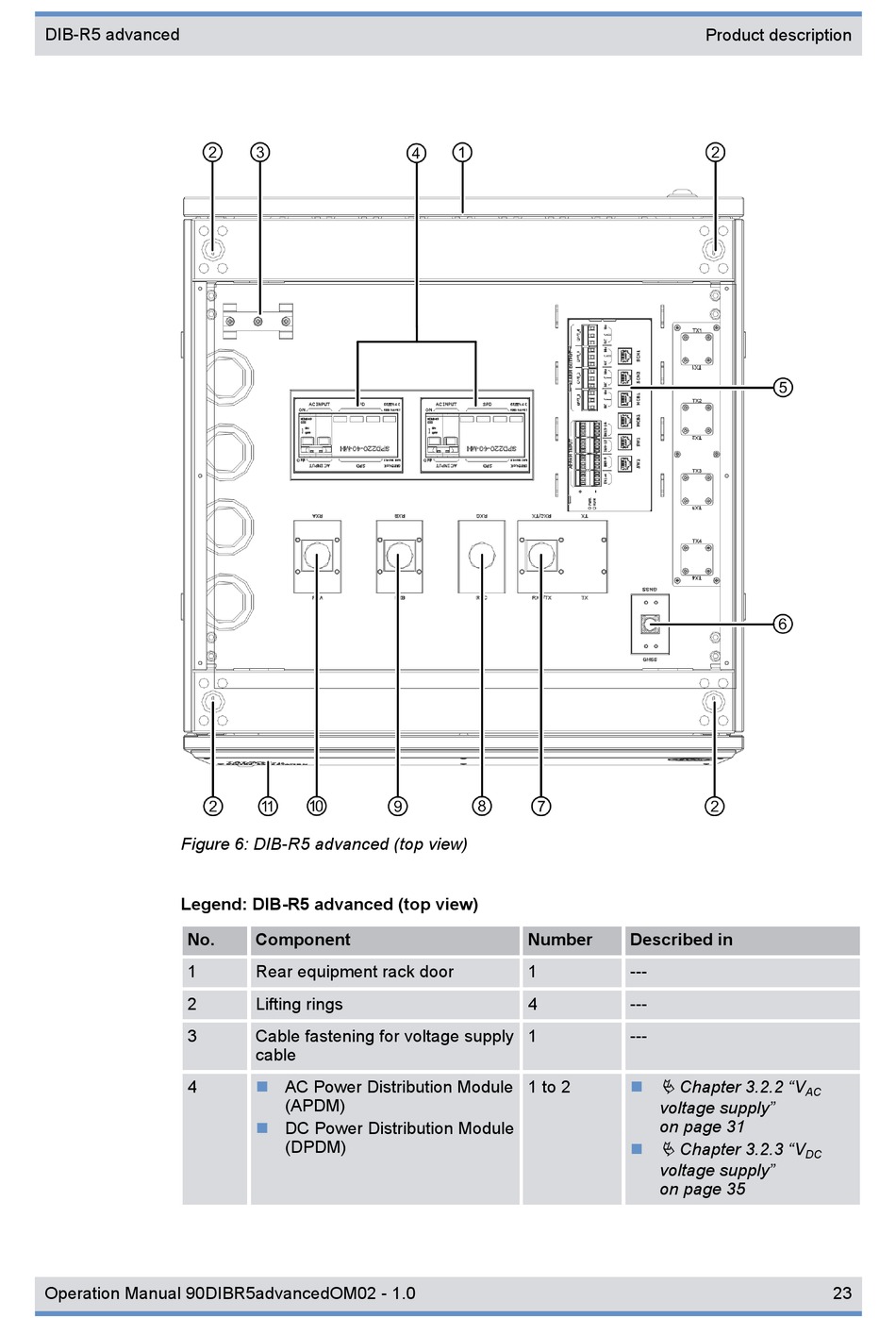

Figure 6: DIB-R5 advanced (top view)
Legend: DIB-R5 advanced (top view)
No.
1
2
3
4
Operation Manual 90DIBR5advancedOM02 - 1.0
Component
Rear equipment rack door
Lifting rings
Cable fastening for voltage supply
cable
n AC Power Distribution Module
(APDM)
n DC Power Distribution Module
(DPDM)
Number Described in
1 ---
4 ---
1 ---
1 to 2 n Ä Chapter 3.2.2 "V
voltage supply"
on page 31
Ä Chapter 3.2.3 "V
n
voltage supply"
on page 35
Product description
AC
DC
23
