Tx Filter - Hytera ACCESSNET-T IP DIB-R5 advanced Operation Manual

DIB-R5 advanced
Legend: DUPLEXER (front view)
No.
1
2
3
4
5
6
3.2.5.2

TX FILTER

The TX FILTER is used for filtering the transmitting signal in the tuning range and is
applied if a separate transmitting antenna (Tx antenna) is used.

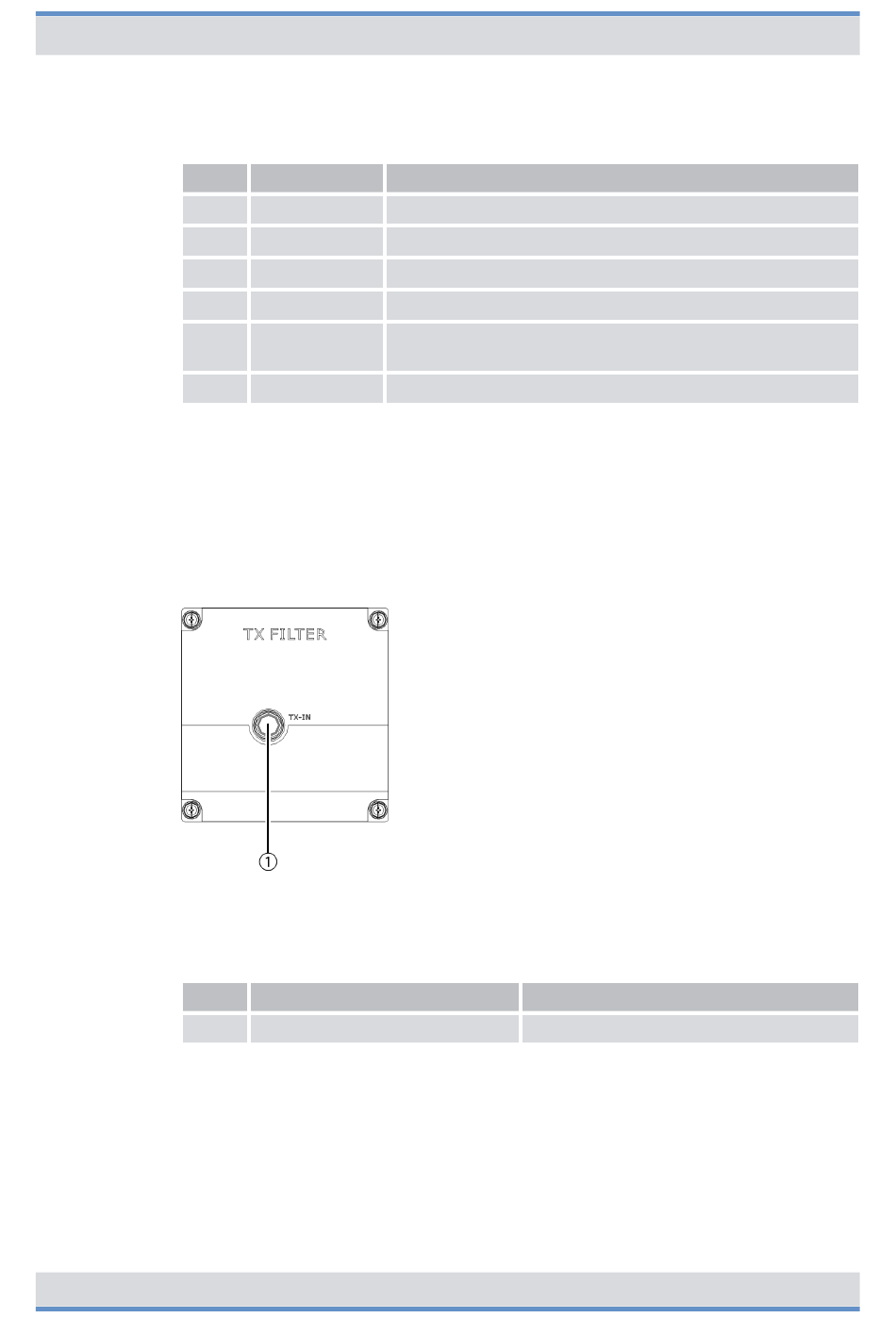

The following figure shows the front view of the TX FILTER. The following table describes
it in detail.
Figure 19: TX FILTER (front view)
Legend: TX FILTER (front view)
No.
1
Operation Manual 90DIBR5advancedOM02 - 1.0
Component Description
RX1 Connector for the connection with CHU 1
RX2 Connector for the connection with CHU 2
RX3 Connector for the connection with CHU 3
RX4 Connector for the connection with CHU 4
Exp. BS Connector for the connection with a PDU in a second equip-
ment rack ‒ only in case of more than four CHUs
TX-IN Tx connector
Component
TX-IN
Components> Transmitting filter
Description
Tx connector
