Operation
Function tests and operating surveillance > Connecting the service computer
Work steps
Ä Checking standby carriers ‒ optional
Ä Function tests and operating surveillance GNSS

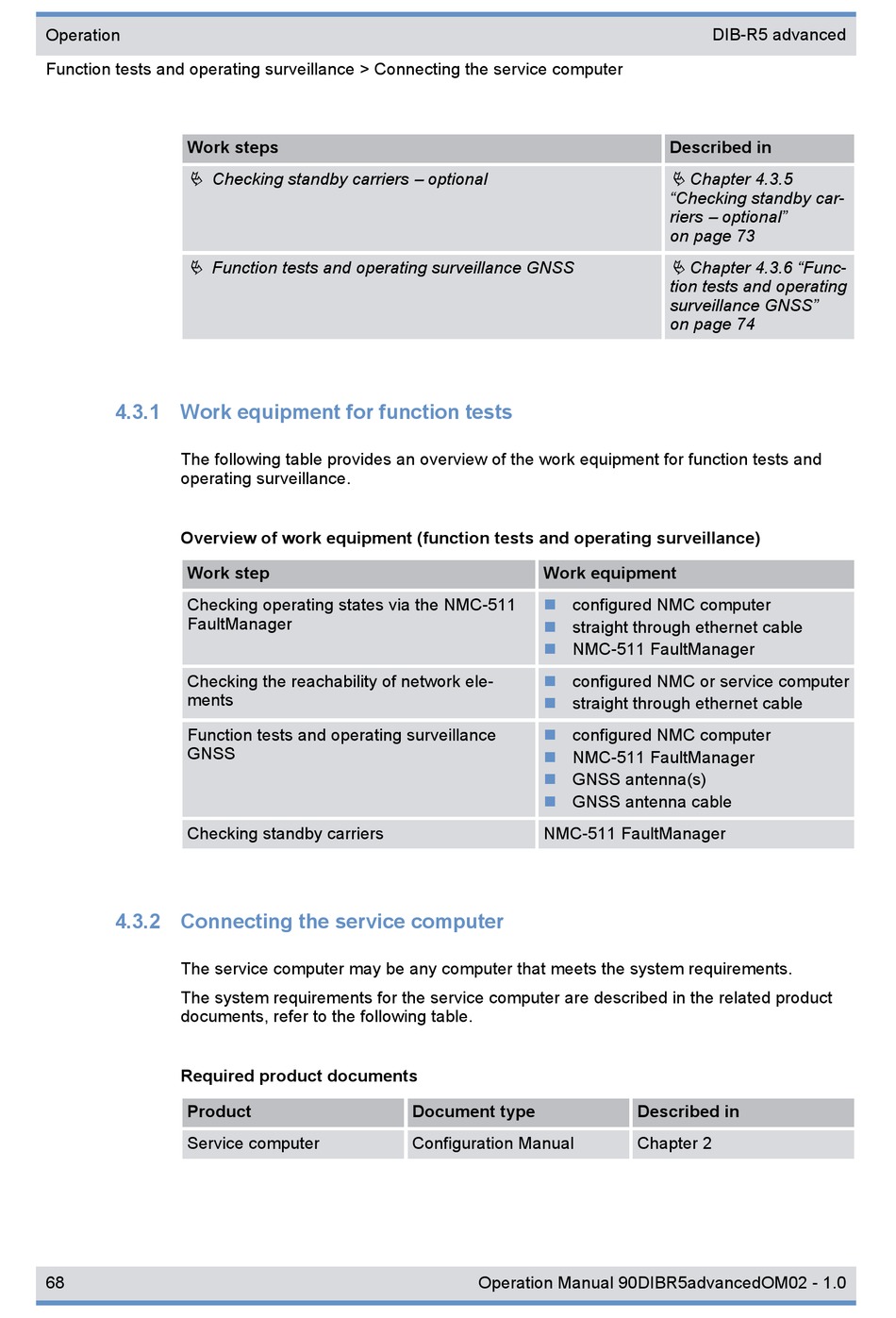

4.3.1 Work equipment for function tests

The following table provides an overview of the work equipment for function tests and
operating surveillance.
Overview of work equipment (function tests and operating surveillance)
Work step
Checking operating states via the NMC-511
FaultManager
Checking the reachability of network ele-
ments
Function tests and operating surveillance
GNSS
Checking standby carriers
4.3.2 Connecting the service computer
The service computer may be any computer that meets the system requirements.
The system requirements for the service computer are described in the related product
documents, refer to the following table.
Required product documents
Product
Service computer
68
Work equipment
n configured NMC computer
n straight through ethernet cable
n NMC-511 FaultManager
configured NMC or service computer
n
n straight through ethernet cable
n configured NMC computer
NMC-511 FaultManager
n
n GNSS antenna(s)
n GNSS antenna cable
NMC-511 FaultManager
Document type
Configuration Manual
Operation Manual 90DIBR5advancedOM02 - 1.0
DIB-R5 advanced
Described in
Ä Chapter 4.3.5
"Checking standby car-
‒ optional"
riers
on page 73
Ä Chapter 4.3.6 "Func-
tion tests and operating
surveillance GNSS"
on page 74
Described in
Chapter 2
