Product description

Scope of delivery

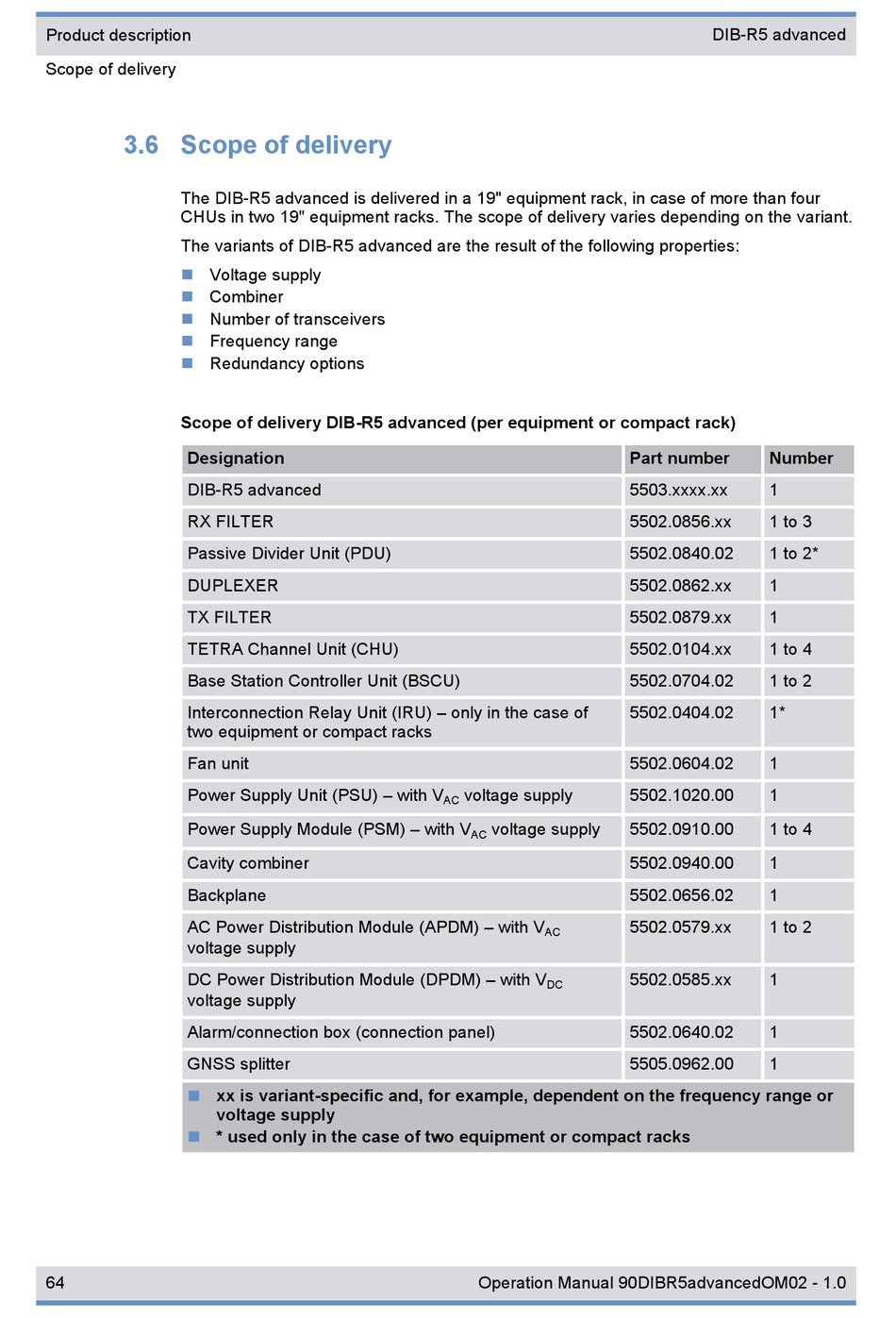

3.6 Scope of delivery
The DIB-R5 advanced is delivered in a 19" equipment rack, in case of more than four
CHUs in two 19" equipment racks. The scope of delivery varies depending on the variant.
The variants of DIB-R5 advanced are the result of the following properties:
n Voltage supply
n Combiner
Number of transceivers
n
n Frequency range
n Redundancy options
Scope of delivery DIB-R5 advanced (per equipment or compact rack)
Designation
DIB-R5 advanced
RX FILTER
Passive Divider Unit (PDU)
DUPLEXER
TX FILTER
TETRA Channel Unit (CHU)
Base Station Controller Unit (BSCU)
Interconnection Relay Unit (IRU) ‒ only in the case of
two equipment or compact racks
Fan unit
Power Supply Unit (PSU) ‒ with V
Power Supply Module (PSM) ‒ with V
Cavity combiner
Backplane
AC Power Distribution Module (APDM) ‒ with V
voltage supply
DC Power Distribution Module (DPDM) ‒ with V
voltage supply
Alarm/connection box (connection panel)
GNSS splitter
n
n
64
xx is variant-specific and, for example, dependent on the frequency range or
voltage supply
* used only in the case of two equipment or compact racks
voltage supply
AC
voltage supply
AC
AC
DC
Operation Manual 90DIBR5advancedOM02 - 1.0
DIB-R5 advanced
Part number Number
5503.xxxx.xx 1
5502.0856.xx 1 to 3
5502.0840.02 1 to 2*
5502.0862.xx 1
5502.0879.xx 1
5502.0104.xx 1 to 4
5502.0704.02 1 to 2
5502.0404.02 1*
5502.0604.02 1
5502.1020.00 1
5502.0910.00 1 to 4
5502.0940.00 1
5502.0656.02 1
5502.0579.xx 1 to 2
5502.0585.xx 1
5502.0640.02 1
5505.0962.00 1
