2.0

Main Display

Refer to the diagram below for the LED indicators and control buttons locations.

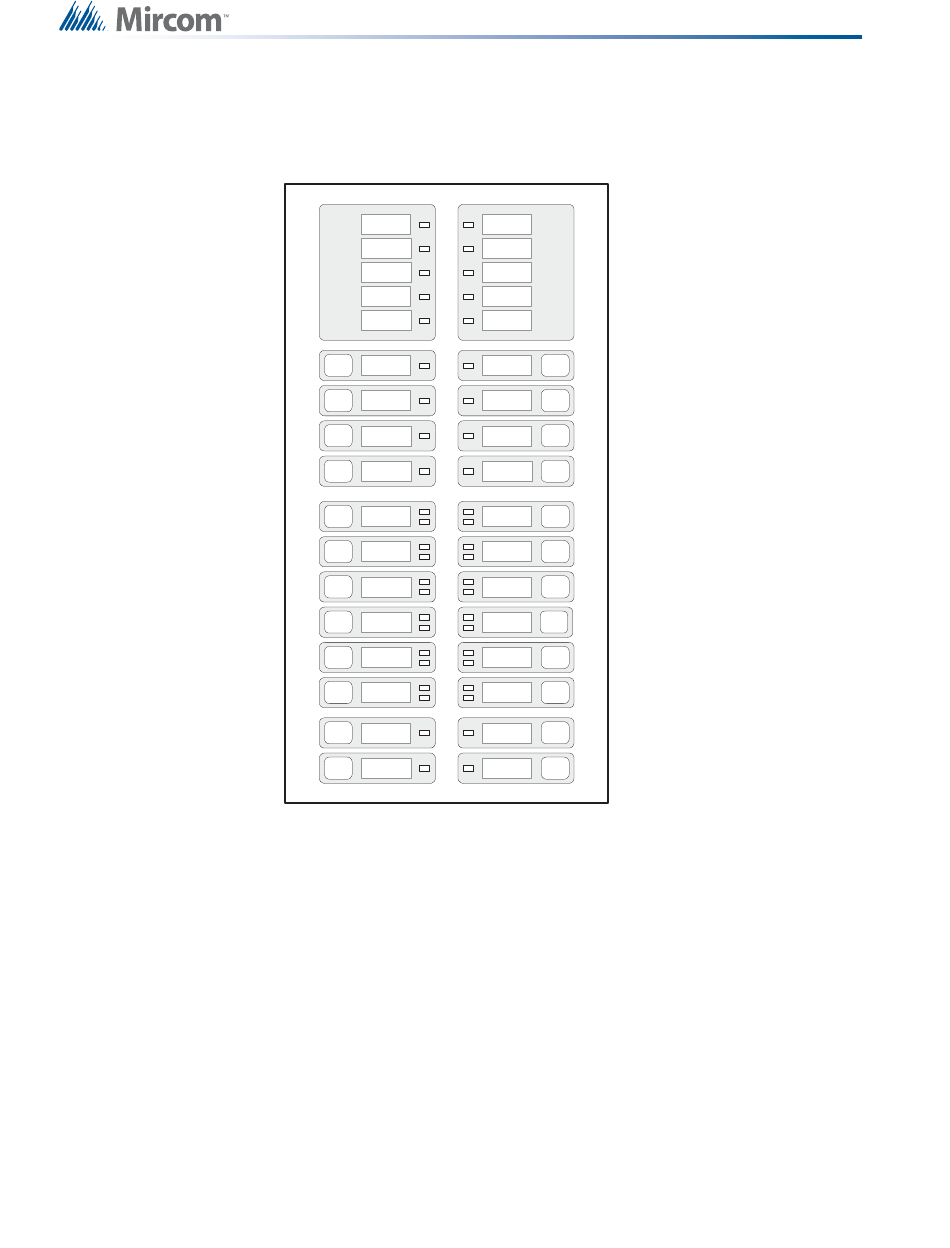

Figure 1
The main display panel on the main fire alarm control board consists of:
• 18 common LED indicators (top half of display)
• 8 common buttons (top half of display)
• Up to 12 Initiating circuit alarm LEDs and 12 initiating circuit trouble LED indicators
• 4 indicating circuit LEDs (labeled NAC - Notifying Appliance Circuit)
• Up to 16 disconnect buttons (12 for initiating circuit and 4 for indicating circuits)
LED indicators may be amber, red, or green, and may illuminate continuously (steady), or at
one of two flash rates:
• Fast flash (supervisory): 120 flashes per minute
• Trouble flash (trouble): 20 flashes per minute
6 (20)
W ALK
TE S T
RE MO TE
TRO UBLE
CP U FAIL
GRO UND
FAULT
S IGNAL
S ILE NCE
FIRE
DRILL
AUTOMATIC
ALARM SIGNAL
CANCEL
GE NE RAL
ALARM
Z O NE -1
DIS CO NNE CT
Z O NE -3
DIS CO NNE CT
Z O NE -5
DIS CO NNE CT
Z O NE -7
DIS CO NNE CT
Z O NE -9
DIS CO NNE CT
Z O NE -11
DIS CO NNE CT
NAC-1
DIS CO NNE CT
NAC-3
DIS CO NNE CT
Main Display
A.C.
O N
CO MMO N
ALARM
CO MMO N
S UP V
CO MMO N
TRO UBLE
BATTE RY
TRO UBLE
S YS TE M
RE S E T
AUX
DIS CO NNE CT
LAMP
TE S T (ME NU)
ALM/SUP/TBL/BLDG
AUDIBLE SIL
Z O NE -2
DIS CO NNE CT
Z O NE -4
DIS CO NNE CT
Z O NE -6
DIS CO NNE CT
Z O NE -8
DIS CO NNE CT
Z O NE -10
DIS CO NNE CT
Z O NE -12
DIS CO NNE CT
NAC-2
DIS CO NNE CT
NAC-4
DIS CO NNE CT
