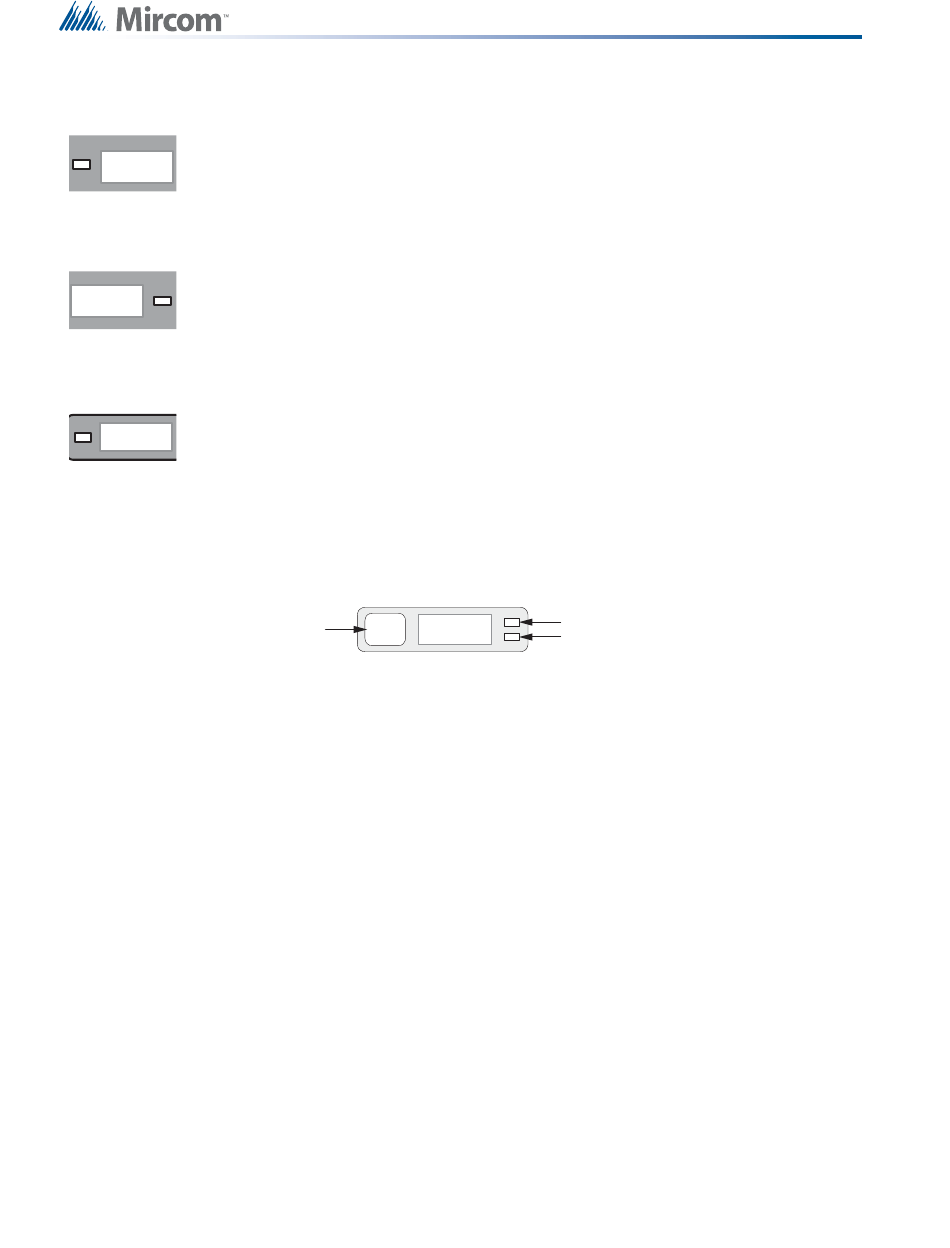

3.1.14 BATTERY TROUBLE LED
The amber BATTERY TROUBLE LED flashes at the trouble rate when the battery is either
low or disconnected.
BATTERY
TROUBLE
3.1.15 GROUND FAULT LED
The amber GROUND FAULT LED flashes at the trouble rate when the ground fault detector
detects a ground fault on any field wiring. It turns off when the ground fault is cleared.
GROUND
FAULT
3.1.16 SYSTEM RESET LED
The amber SYSTEM RESET LED illuminates for a short time when the SYSTEM RESET
button is pressed.
SYSTEM
RESET
3.2

Indicating Circuit Indicators

The panel has 1 indicator for each of the 12 initiating circuits (shown in Figure 1). Each
indicator has a button and 2 LEDs, shown in Figure 2.
Figure 2
The Circuit Disconnect Button is described in 5.0 Circuit (Zone) Disconnect Buttons on
page 16. The LEDs are described below.
10 (20)
Circuit
Disconnect
DIS CO NNE CT
Button
Alarm Circuit Indicator
Circuit Status LED
Z O NE -1
Circuit Trouble LED
The Buzzer and LED Indicators
