Lockly SECURE Installation Manual page 2

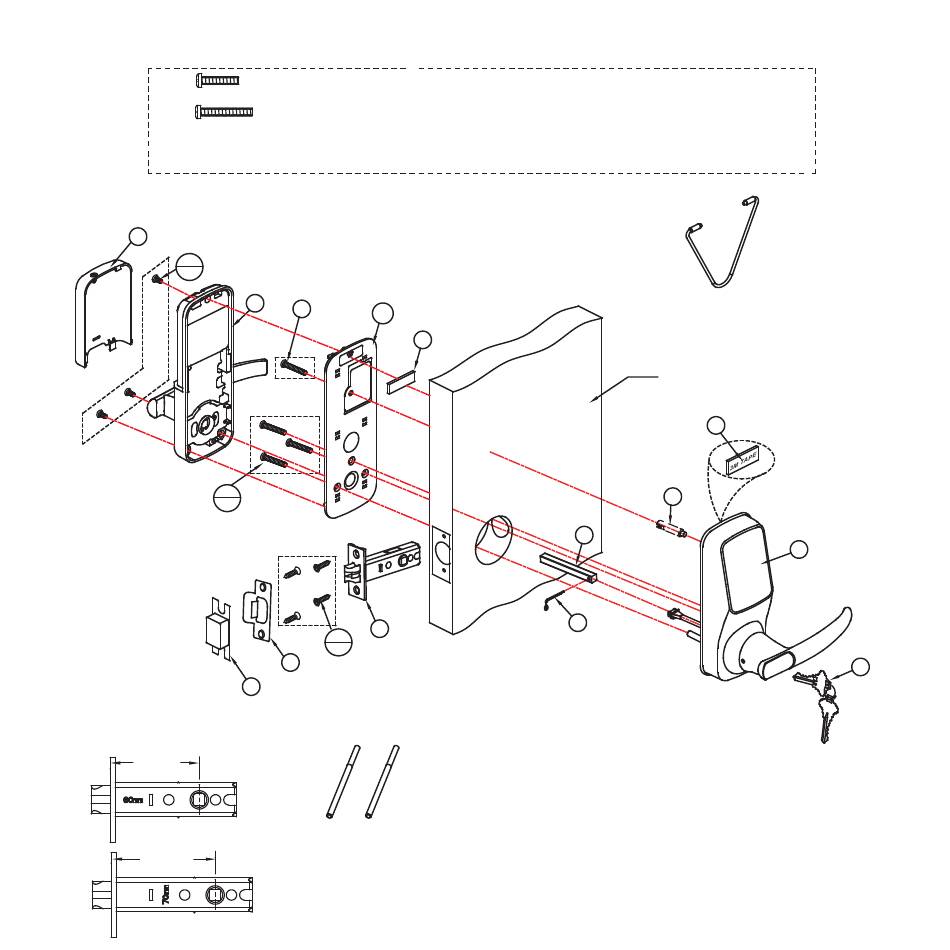

INSTALLATION OVERVIEW & PARTS LIST
M1
M2
*NOTE: You can either use T or U to stabilize the exterior part. T requires drilling an
extra hole. Use provided Template for drilling instructions if needed.
Q
P
3x
O
3x
2-3/8"
(60mm)
F1
2-3/4"
(70mm)
F2
PM5X25mm, Door thickness 1-19/50"~1-69/100"(35~43mm)
PM5X35mm, Door thickness1-69/100"~1-97/100"(43~50mm)
N
M
LK
S
F
G
4x
H
I
2x
Measure distance between the center of the hole to the edge of door:
Use F1 if 2-3/8"(60mm) or F2 if 2-3/4"(70mm)
C
D
V
Positioning rods for
installing part LK
R
Exterior
T
U
B
Tool for changing
handle orientation
A
