Lockly SECURE Installation Manual page 6

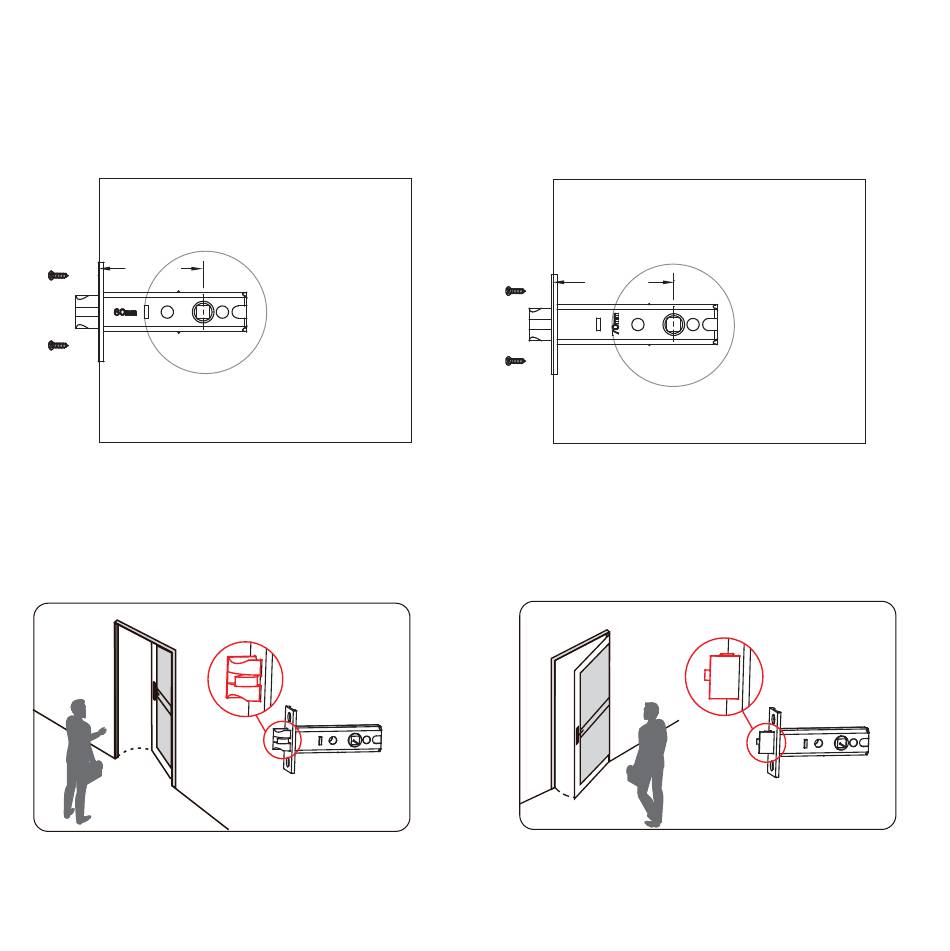

STEP 2: INSTALLING THE LOCKSET
2.1 Measure the distance between center of front door hole to the edge of your door
and select the correct lockset. Select F1 if 2-3/8"(60mm) or F2 if 2-3/4"(70mm).
2-3/8"
G
(60mm)
G
2.2 Install the lockset with the slanted side of the latch facing towards the closing direction.
Example 1
Slanted side Facing Door Frame when closing
2.3 Secure lockset with provided screws, labelled G (Step 2.1) as shown.
G
F1
G
OR
2-3/4"
(70mm)
Example 2
Slanted side Facing Door Frame when closing
F2
