Desktop Installation; Wall-Mounted Installation - Bdcom S1010-8P-120 User Manual

Desktop Installation

Install the Switch on a desktop, please a ach these cushioning rubber feet provided on the
bo om at each corner of the Switch in case of the external vibra on. Allow adequate space for
ven a on between the device and the objects around it.

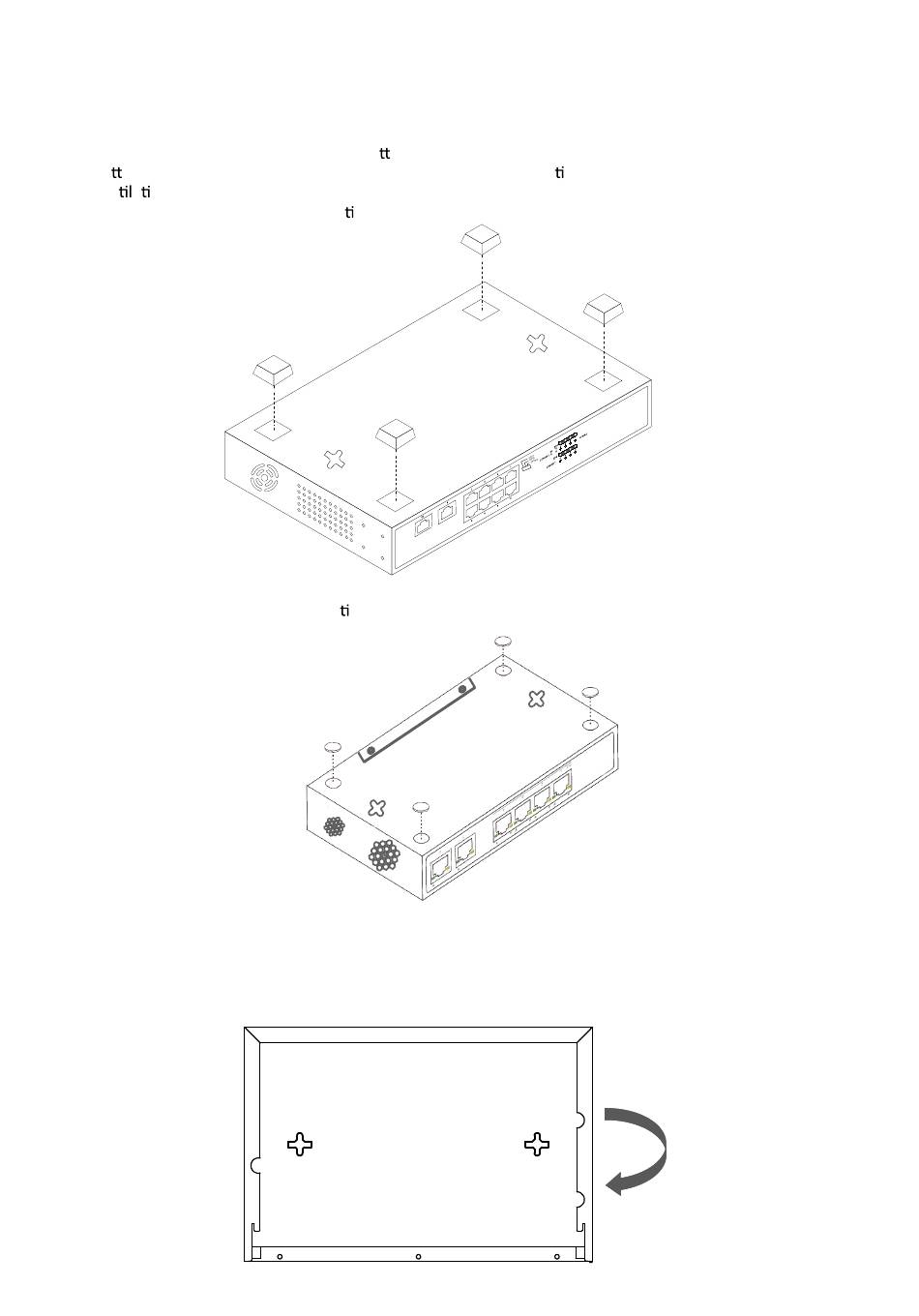

The S1010-8P-120 Desktop Installa on
The S1006-4P-65 Desktop Installa on

Wall-mounted installation

In the first two fixed screw on the wall as shown in the figure below
Aim at the two fixed hole switches, and the machine smoothly on the screw
( S1010-8P-120)
