Chapter 1 S2528-B Introduction

The section describes the characteristics and parameters of S2528-B and gives an
overview of S2528-B.

1.1 Appearance Description for Standard Configuration

The built-in ports of S2528-B are: 24 gigabit Ethernet Base-T ports, 4 gigabit
Ethernet SFP ports and 1 Console port. See table 1-1.
Port
Gigabit Ethernet port
Gigabit Ethernet optical port
Console port
No. Abbrev.
1 CONSOLE
2 SYS
3 PWR
4 Link/ACT
Base-T port:
auto-identification, UTP (RJ45) port
Optical port: 100/1000M SFP port, Link/Act indicators
A rate of 9600bps, RJ45 interface
Table 1- 1 Attributes of the built-in port

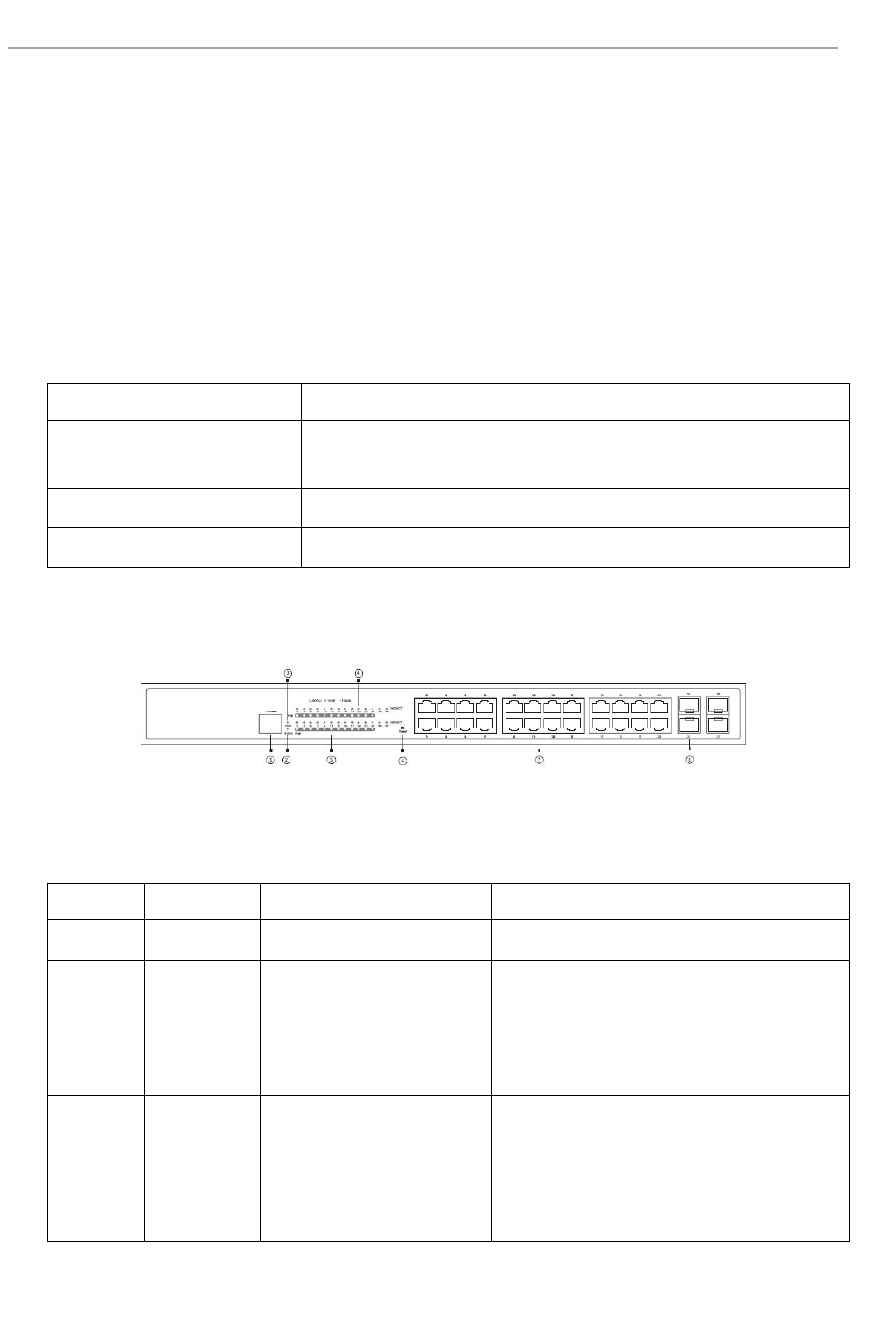

Figure 1-1 Front template of the S2528-B switch
Name
Console port
System indicator
Power indicator
LINK/ACT indicator
each port
S2528-B Hardware Installation Manual
Attribute
10/100/1000M auto-adaptation,
Manages the switch locally.
If the indicator is always on, the system
is being started.
If the indicator flickers, the system works
normally.
If the switch is powered on, the indicator
is on.
If the indicator is on in orange: 10/100M,
of
If the indicator is on in green: 1000M
MDI/MDIX
Description
