INSTALLATION, CONTINUED: FIELD WIRING BOX / TERMINAL STRIP / LED DRIVERS / RACEWAYS
8. Field Wiring Box / T'Strip / LED Drivers /

Raceways

 Remove front panel to access field wiring box.
 Field wiring box is located at front left of case
(behind front panel)
 LED drivers and terminal strip are accessible
via electrical box (shown transparent for
illustrative purposes).
Remove Front Panel To
Access Field Wiring Box
Terminal LED Drivers (Layout
Strip

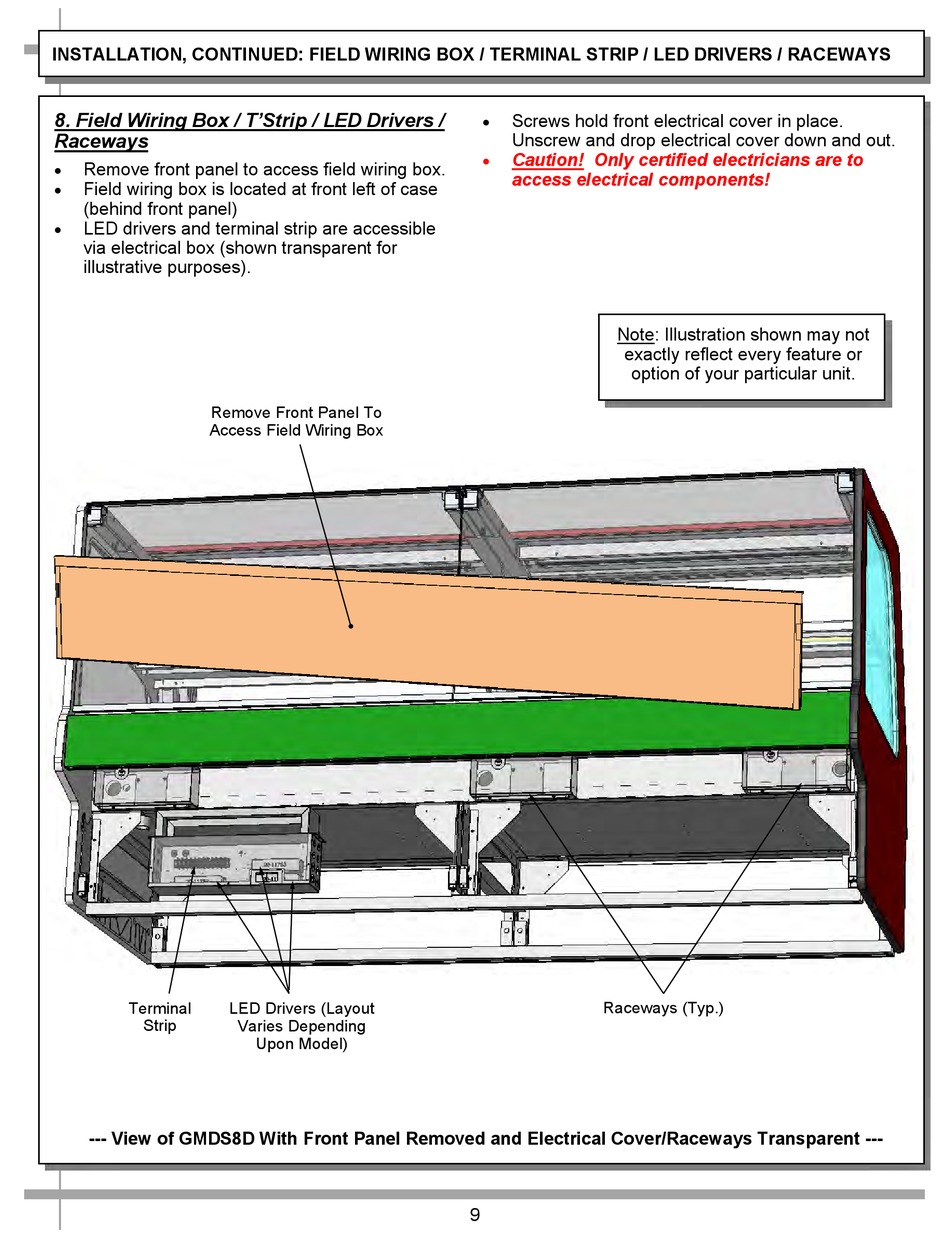

--- View of GMDS8D With Front Panel Removed and Electrical Cover/Raceways Transparent ---
Varies Depending
Upon Model)

Screws hold front electrical cover in place.
Unscrew and drop electrical cover down and out.
 Caution! Only certified electricians are to
access electrical components!
Note: Illustration shown may not
exactly reflect every feature or
option of your particular unit.
Raceways (Typ.)
