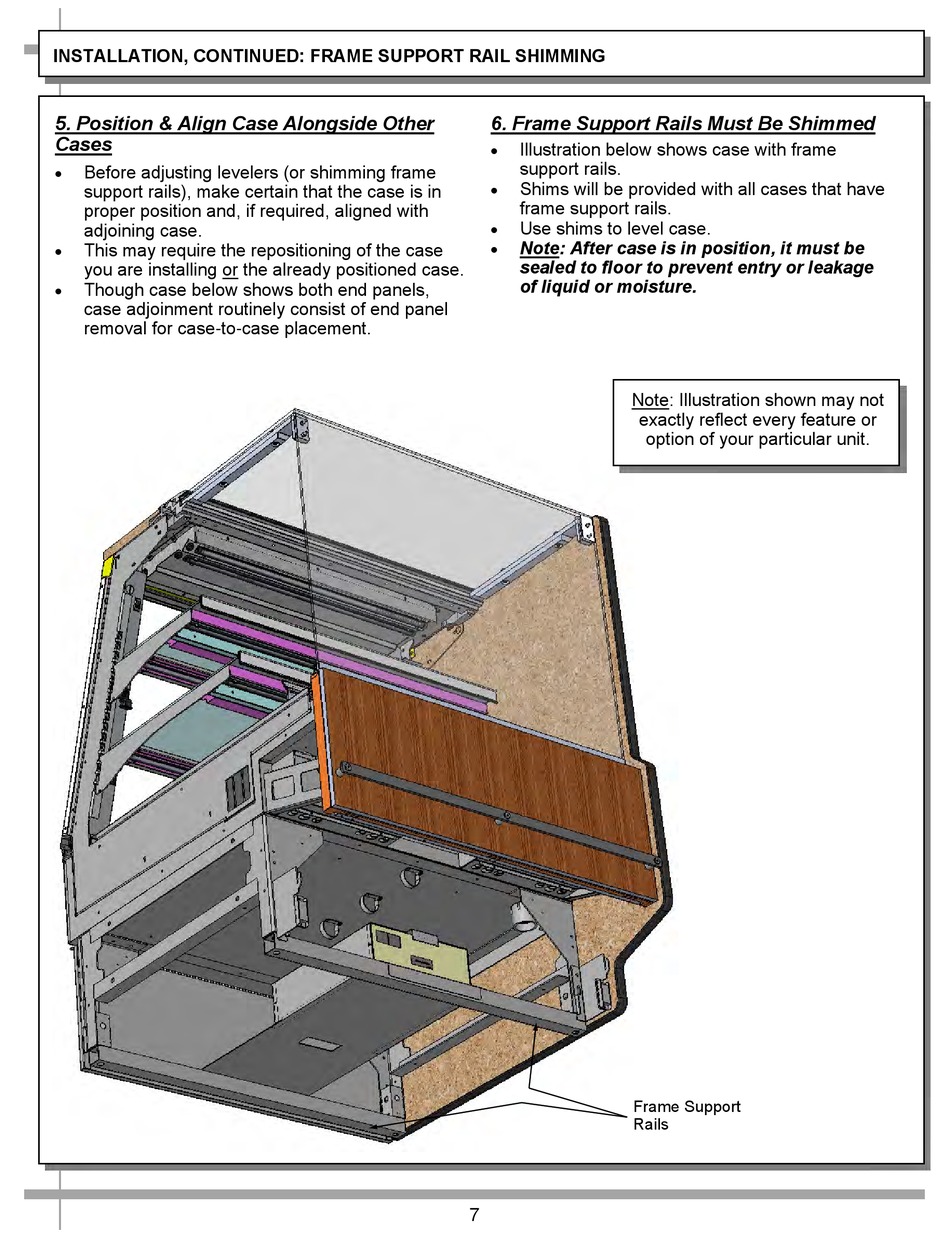

INSTALLATION, CONTINUED: FRAME SUPPORT RAIL SHIMMING

5. Position & Align Case Alongside Other
Cases
Before adjusting levelers (or shimming frame
support rails), make certain that the case is in
proper position and, if required, aligned with
adjoining case.
This may require the repositioning of the case
you are installing or the already positioned case.
Though case below shows both end panels,
case adjoinment routinely consist of end panel
removal for case-to-case placement.
6. Frame Support Rails Must Be Shimmed
Illustration below shows case with frame
support rails.
Shims will be provided with all cases that have
frame support rails.
Use shims to level case.
Note: After case is in position, it must be
sealed to floor to prevent entry or leakage
of liquid or moisture.
Note: Illustration shown may not
exactly reflect every feature or
option of your particular unit.
Frame Support
Rails
7
