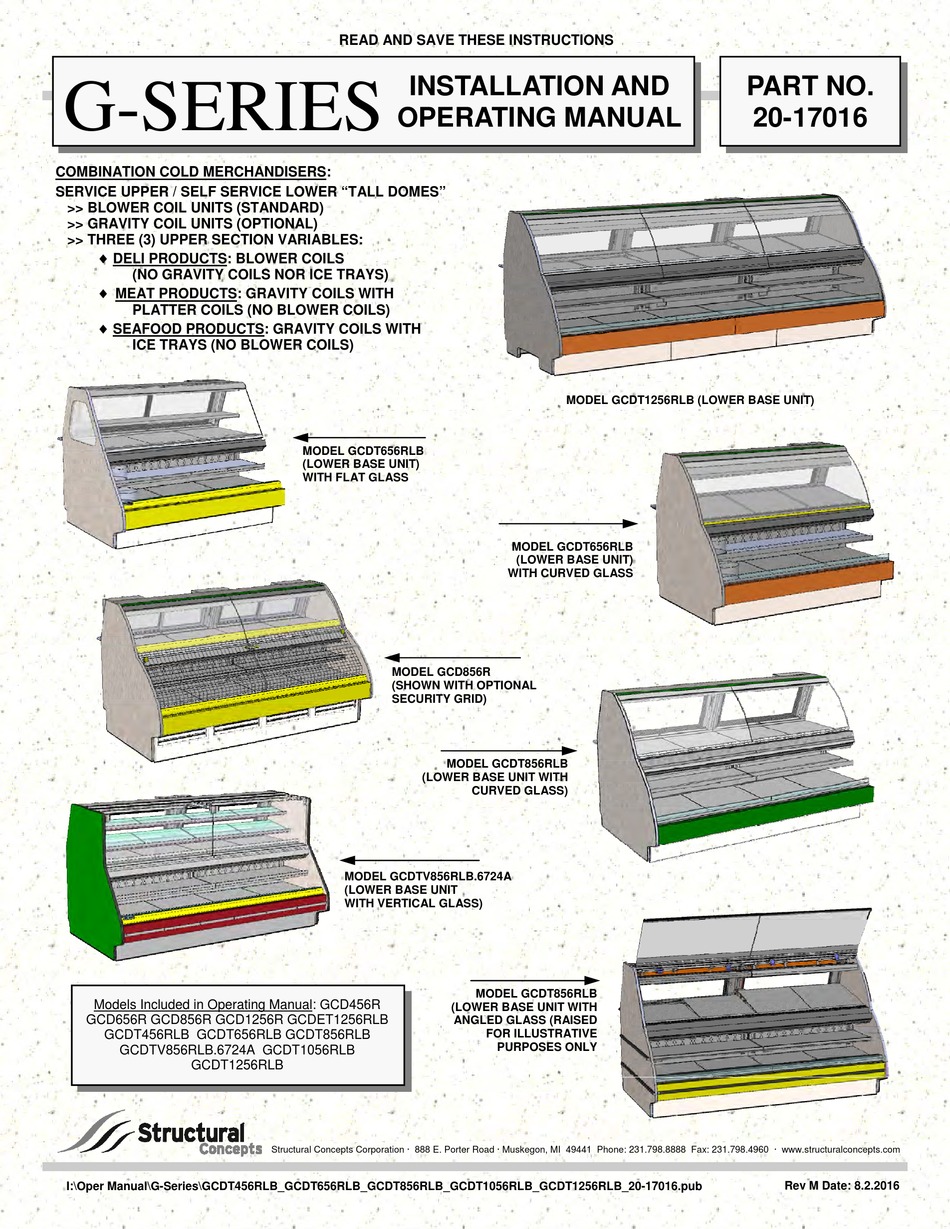

G-SERIES
COMBINATION COLD MERCHANDISERS:
SERVICE UPPER / SELF SERVICE LOWER "TALL DOMES"
>> BLOWER COIL UNITS (STANDARD)
>> GRAVITY COIL UNITS (OPTIONAL)
>> THREE (3) UPPER SECTION VARIABLES:
DELI PRODUCTS: BLOWER COILS
(NO GRAVITY COILS NOR ICE TRAYS)
MEAT PRODUCTS: GRAVITY COILS WITH
PLATTER COILS (NO BLOWER COILS)
SEAFOOD PRODUCTS: GRAVITY COILS WITH
ICE TRAYS (NO BLOWER COILS)
Models Included in Operating Manual: GCD456R
GCD656R GCD856R GCD1256R GCDET1256RLB
GCDT456RLB GCDT656RLB GCDT856RLB
GCDTV856RLB.6724A GCDT1056RLB
GCDT1256RLB
I:\Oper Manual\G-Series\GCDT456RLB_GCDT656RLB_GCDT856RLB_GCDT1056RLB_GCDT1256RLB_20-17016.pub
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION AND
OPERATING MANUAL
MODEL GCDT656RLB
(LOWER BASE UNIT)
WITH FLAT GLASS
MODEL GCD856R
(SHOWN WITH OPTIONAL
SECURITY GRID)
MODEL GCDT856RLB
(LOWER BASE UNIT WITH
MODEL GCDTV856RLB.6724A
(LOWER BASE UNIT
WITH VERTICAL GLASS)
Structural Concepts Corporation · 888 E. Porter Road · Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 · www.structuralconcepts.com
MODEL GCDT1256RLB (LOWER BASE UNIT)
MODEL GCDT656RLB
(LOWER BASE UNIT)
WITH CURVED GLASS
CURVED GLASS)
MODEL GCDT856RLB
(LOWER BASE UNIT WITH
ANGLED GLASS (RAISED
FOR ILLUSTRATIVE
PURPOSES ONLY
PART NO.
20-17016
Rev M Date: 8.2.2016
