2.1

Selecting a Location

Install the communicator away from metal objects. DO NOT MOUNT THE iCOMSL SERIES COMMUNICATOR INSIDE
OR ON A CONTROL PANEL METAL ENCLOSURE (See Figure 5).
Mounting the communicator on or near metal surfaces impairs Z-Wave wireless performance. The enclosure for
the communicator should be mounted using the provided #6 screws in the four mounting holes (See Figure 6).
Mount the enclosure in a secure, dry place to protect the communicator from damage due to tampering or the
elements. It is not necessary to remove the PCB when installing the enclosure.
When installing component wires, care must be taken to route all wires in such a manner that they will not
interfere with the Tamper switch (See Figure 7).
J1
J8
B R
iComSL Series Universal Communicator Installation and Programming Guide

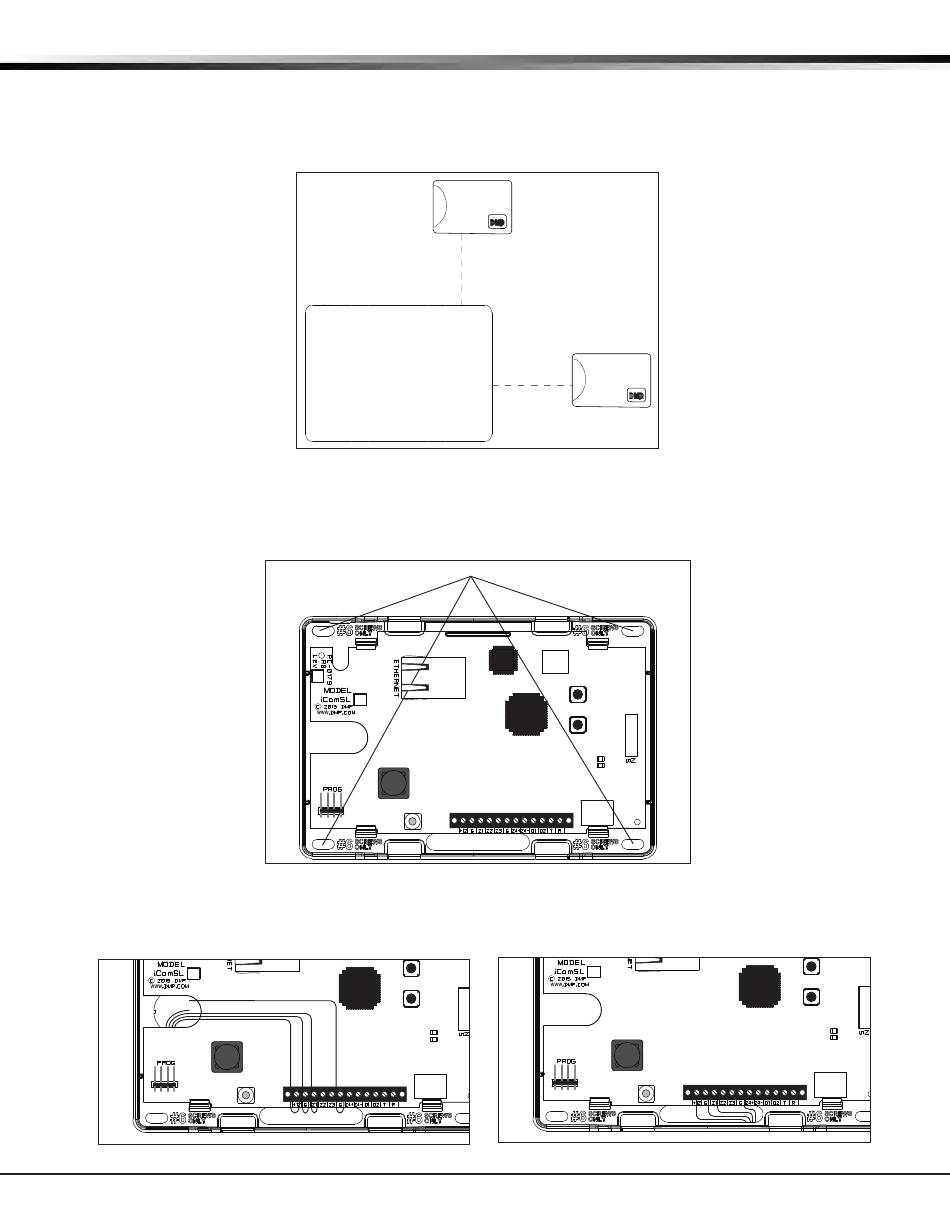

Mounting the iComSL Series Communicator
Control Panel
Metal Enclosure
Figure 5: Suggested Mounting Locations
Mounting Screw Locations
J1
J8
B R
S3
Figure 6: Mounting Screw Locations
S1
RESET
S2
LOAD
J9
S3
Figure 7: Wire Routing Options
Inst alla tIon
S1
RESET
S2
LOAD
J9
J8
B R
S1
J1
S2
J9
S3
Digital Monitoring Products
RESET
LOAD
3
