1.Features

1. 10 mA high resolution on 40A DC/AC range
2. Temperature (℃ or ℉) and Capacitance.
3. One touch zero for DCA adjustment.
4. Auto-range for V, A, Ω, F, and temperature.
5. 23 mm diameter jaw.
6. Auto-power-off (30 minutes)
7. Fast bargraph display (20 times/sec.) for transient observation.
8. Continuity and frequency measurements.
9. Max/Min and Data Hold functions.
10.
600V overload protection for ohm measurement.
11.
Ideal for works in crowded switch box or cable areas.

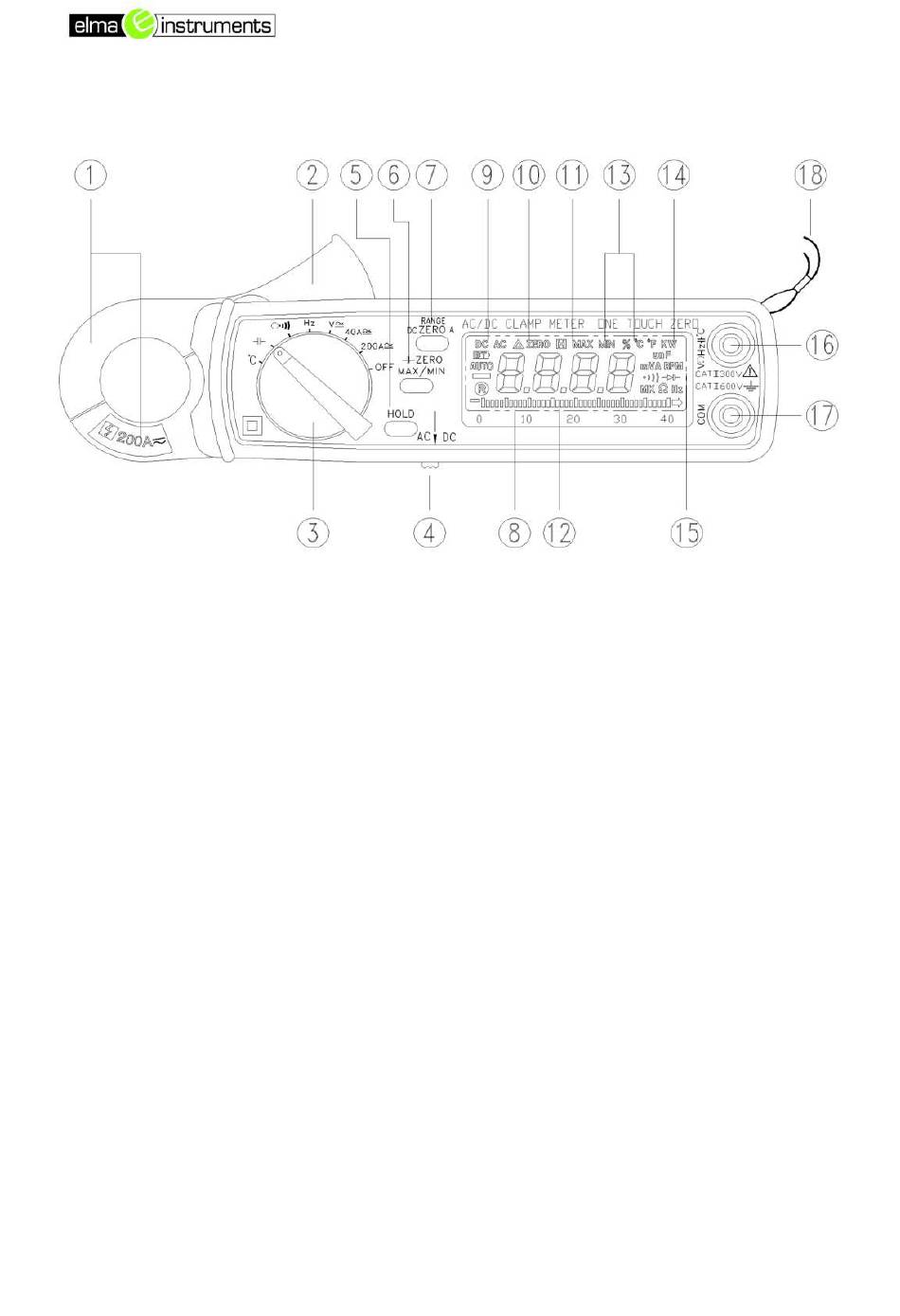

2. Panel Description

1. Transformer Jaw
This is used to pick up current signal. To measure DC/AC current,
conductor must be enclosed by the jaw.
27
Elma CM-01A
