For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

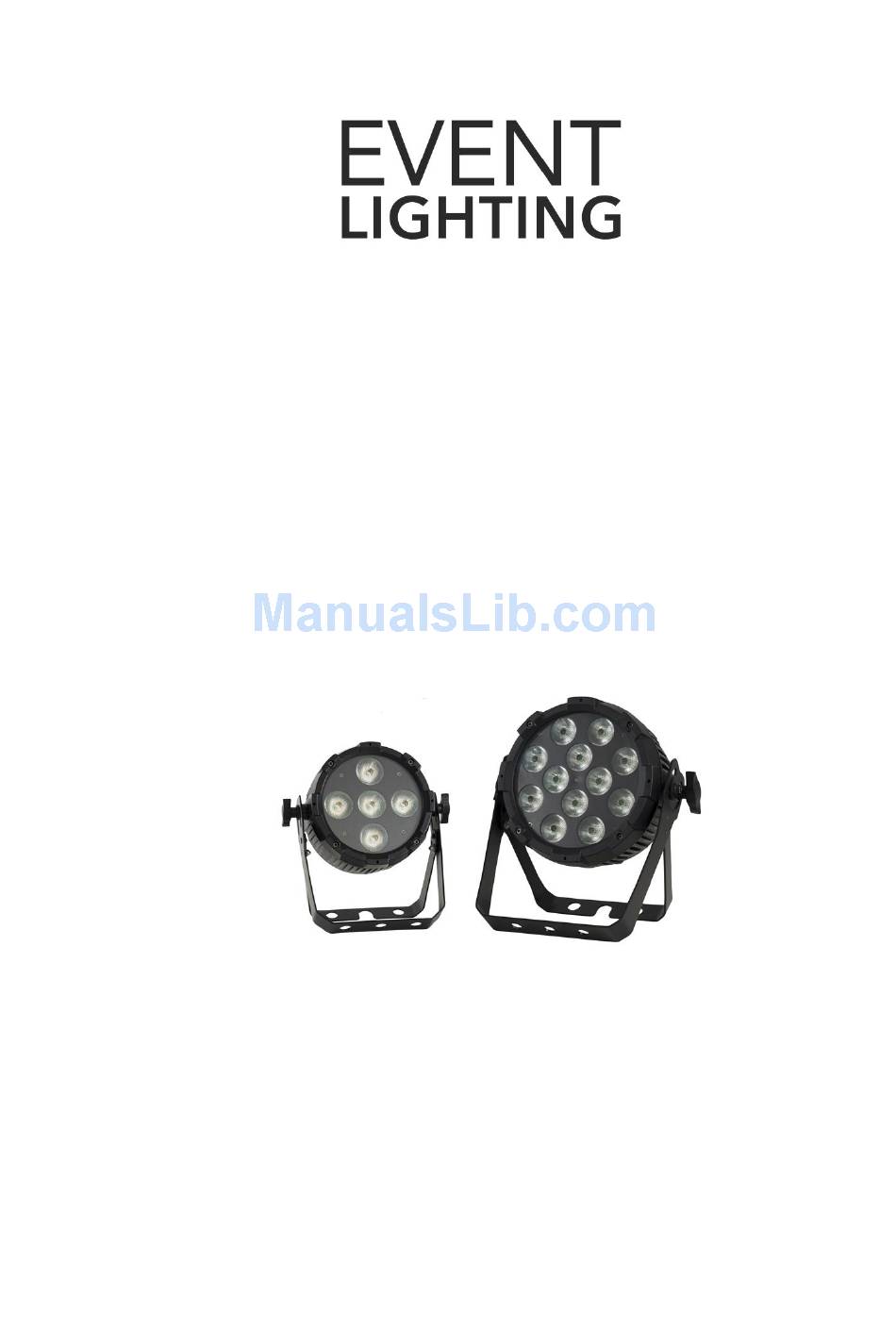

PRO PAR
Model No. PARRGBW12x8, PAR12x8A
PARRGBW5x8, PAR5x8A
USER MANUAL
www.event-lighting.com.au
Ver 2.0
Advertisement
Table of Contents
Related Manuals for Event Lighting PARRGBW12x8
Summary of Contents for Event Lighting PARRGBW12x8
-
Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. -
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Power input & power Linking Product Installation Fuse replacement Diagrams Lux chart Dimensions Control Board Operation DMX address setting DMX modes setting Dimmer Speed Setting Static colour setting Manual colour setting Auto run and sound active setting Master/slave setting DMX chart Technical specifications... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
www.event-lighting.com.au Lux Chart Dimensions PAR5 PAR12... -
Page 5: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Display Function DMX Add To set DMX address DMX Cha To set DMX channel modes: CH10, CH06, CH04, CH03, CH02 Dimmer To set dimmer curve: 01, 02, 03, 04, 05 Sound To set sound active mode and the sensitivity (Sen000 ~ Sen100) To set static colors: Static Color Static C RGBW Models - R, G, B, W, GB, RB, RG, RGB, RW, GW, BW, RGW, RBW, GBW, RGBW... - Page 6 www.event-lighting.com.au Setting Static Colour Entered "Static C" mode, you can select the desired solid color via the “UP” or “DOWN” buttons, press “Enter" to save new setting 8W RGBW LED 8W RGBA LED Value: Function: Value: Function: Green Green Blue Blue White Amber...
-
Page 7: Dmx Chart
www.event-lighting.com.au To setup sound active mode Pr 06 Entered “Auto Pro” mode, use “Up” and “Down” button to select the built-in program “Pr 06”, press “Enter” to confirm. Use “Up” and “Down” button to select the sensitivity Sen000 ~ Sen100, press “Enter" to save new setting To setup multi fixture chases Pr 07 Before starting, go to each fixture and reset the menu to fixture defaults. - Page 8 www.event-lighting.com.au 6 channels Mode RGBW Value Function Channel 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 RGBW Model : White: 0% ~ 100% RGBA Model : Amber: 0% ~ 100% 000-255 Master DIMMER 0% ~ 100% 000-009 No function 010-019...
-
Page 9: Warranty
DMX, auto run, sound active, master/slave, manual colour control, static colour control Beam Angle 22° Refresh Rate 2940Hz 2, 3, 4, 6, 10 DMX Channel mode Power Input Power Output WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au...
