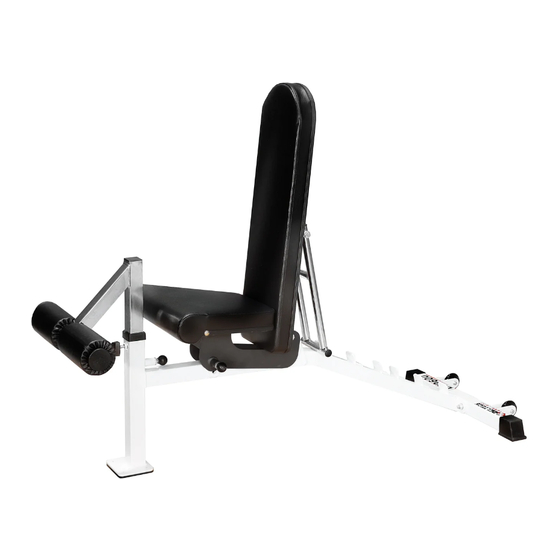

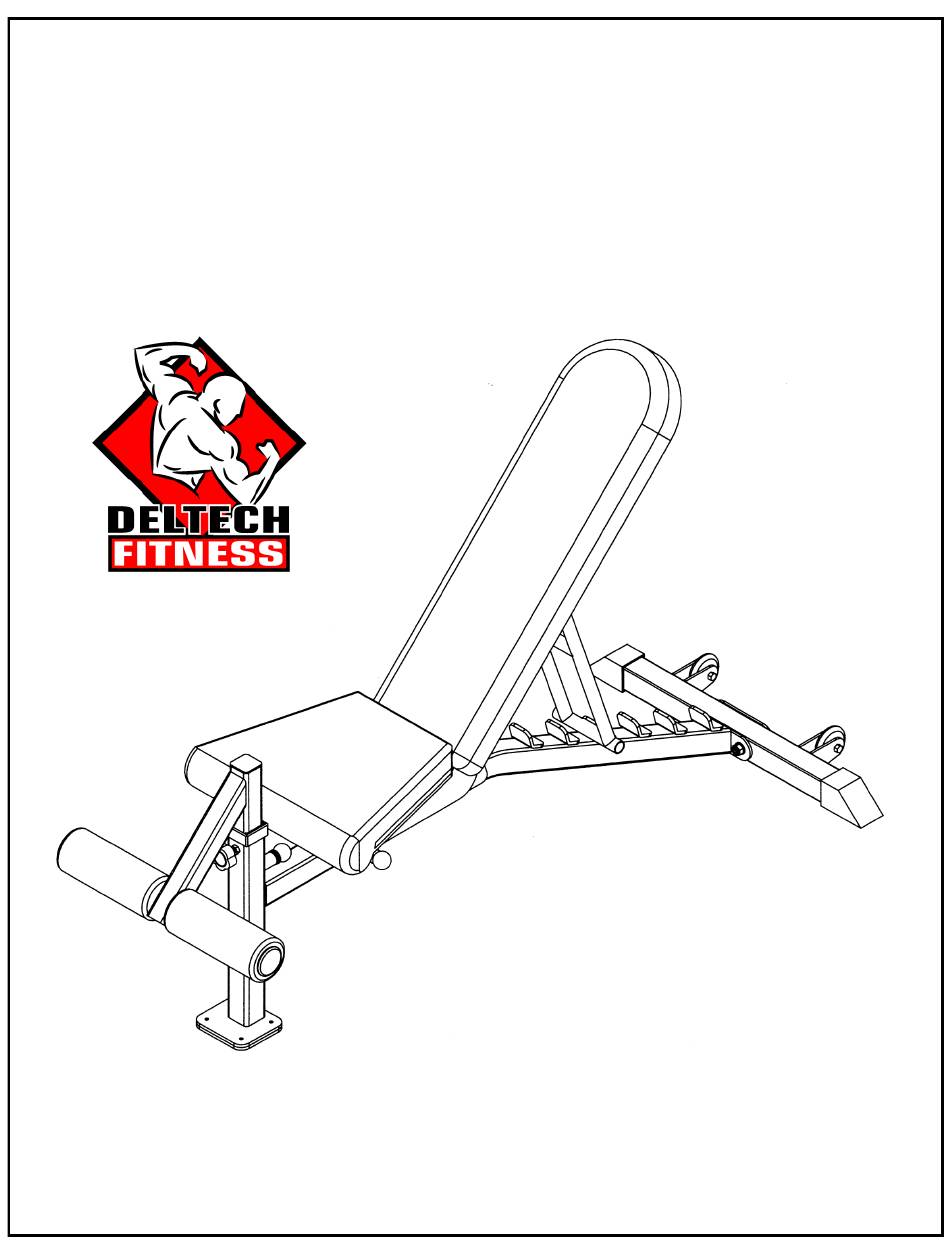

- Page 1 DF9600 FLAT/INCLINE BENCH Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
BOX CONTENTS MAIN FRAME REAR FOOT SEAT FRAME QTY 1 QTY 1 QTY 1 LEG HOLD DOWN ADJUSTMENT SUPPORT BACKREST MOUNT QTY 1 QTY 1 QTY 1 ROLLER PADS SEAT PAD BACKREST PAD QTY 2 QTY 1 QTY 1 ROLLER TUBE CLAMP PLATE QTY 1 QTY 1... - Page 3 HARDWARE TURN KNOB RUBBER SHOE PULL-PIN M12 x 75MM BOLT M12 x 92MM BOLT M12 x 150MM BOLT M12 WASHER M12 NUT M10 WASHER MUSHROOM CAP M10 x 25 MM BOLT...
-
Page 4: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU. - Page 5 TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST Some components may be pre-installed TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) from the factory INSTALL RUBBER SHOES (L) ON REAR FOOT (B). ATTACH THE REAR FOOT (B) TO FRAME (C) USING M12 x 75MM BOLTS (O), M12 WASHERS (R), CLAMP PLATE (K), AND M12 LOCKNUTS (S).
- Page 6 INSTALL PULL-PIN (M) INTO SEAT FRAME (A). ATTACH SEAT FRAME AND BACKREST MOUNT (E) TO MAIN FRAME USING M2 x 92MM BOLT (P), M12 WASHERS (R), AND M12 NUT (S).
- Page 7 INSTALL ADJUSTMENT SUPPORT (D) TO BACKREST MOUNT USING M12 x 150MM BOLT (Q), M12 WASHERS (R), AND M12 LOCKNUT (S).
- Page 8 INSTALL BACKREST PAD (G) AND SEAT PAD (H) TO SEAT FRAME AND BACKREST MOUNT USING M10 x 25MM BOLTS (T) AND M10WASHERS (U).
- Page 9 INSERT LEG HOLD DOWN (F) INTO MAIN FRAME AND LOCK INTO PLACE WITH PULL-PIN AND TURN KNOB. INSERT ROLLER TUBE (J) INTO LEG HOLD DOWN UNTIL IT IS EQUAL ON BOTH SIDES. INSTALL ROLLER PADS (I) ONTO EACH END OF ROLLER TUBE. INSERT MUSHROOM CAP (V) INTO EACH END OF ROLLER TUBE AND HAMMER INTO PLACE WITH A RUBBER MALLET.
