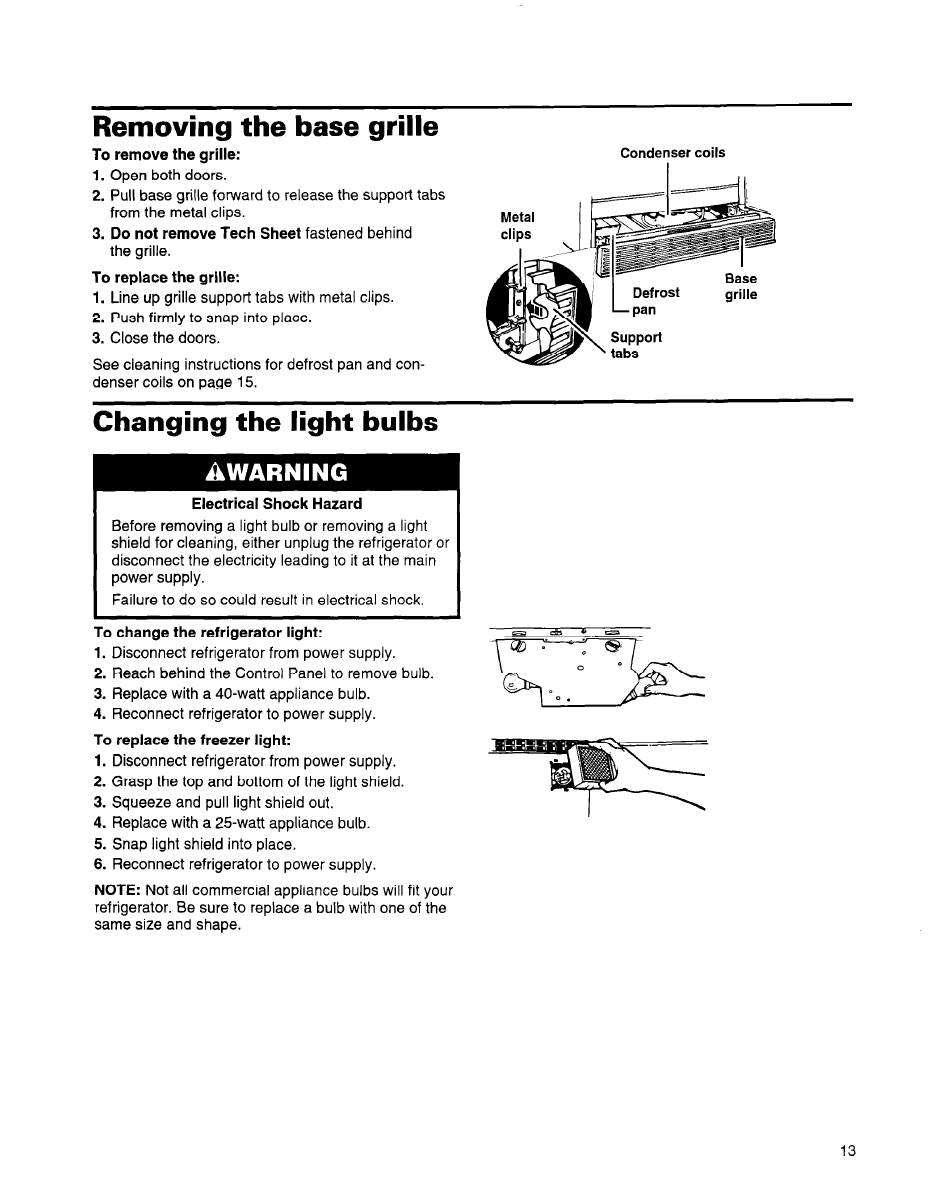

Removing
the base grille
To remove the grille:
1. Open both doors.
2. Pull base grille forward to release the support tabs
Condenser coils
from the metal clips.
3. Do not remove Tech Sheet fastened behind
the grille.
To replace the grille:
1. Line up grille support tabs with metal clips.
2. Push firmly to snap into place.
3. Close the doors.
See cleaning instructions
for defrost pan and con-
denser coils on page 15.
Changing
the light
bulbs
Electrical
Shock Hazard
Before removing a light bulb or removing a light
shield for cleaning, either unplug the refrigerator or
disconnect the electricity leading to it at the main
power supply.
Failure to do so could result in electrical shock.
To change the refrigerator
light:
1. Disconnect
refrigerator from power supply.
2. Reach behind the Control Panel to remove bulb.
3. Replace with a 40-watt appliance bulb.
4. Reconnect refrigerator to power supply.
To replace the freezer light:
1. Disconnect
refrigerator from power supply.
2. Grasp the top and bottom of the light shield.
3. Squeeze and pull light shield out.
4. Replace with a 25-watt appliance bulb.
5. Snap light shield into place.
6. Reconnect refrigerator to power supply.
NOTE: Not all commercial appliance bulbs will fit your
refrigerator. Be sure to replace a bulb with one of the
same size and shape.
13
