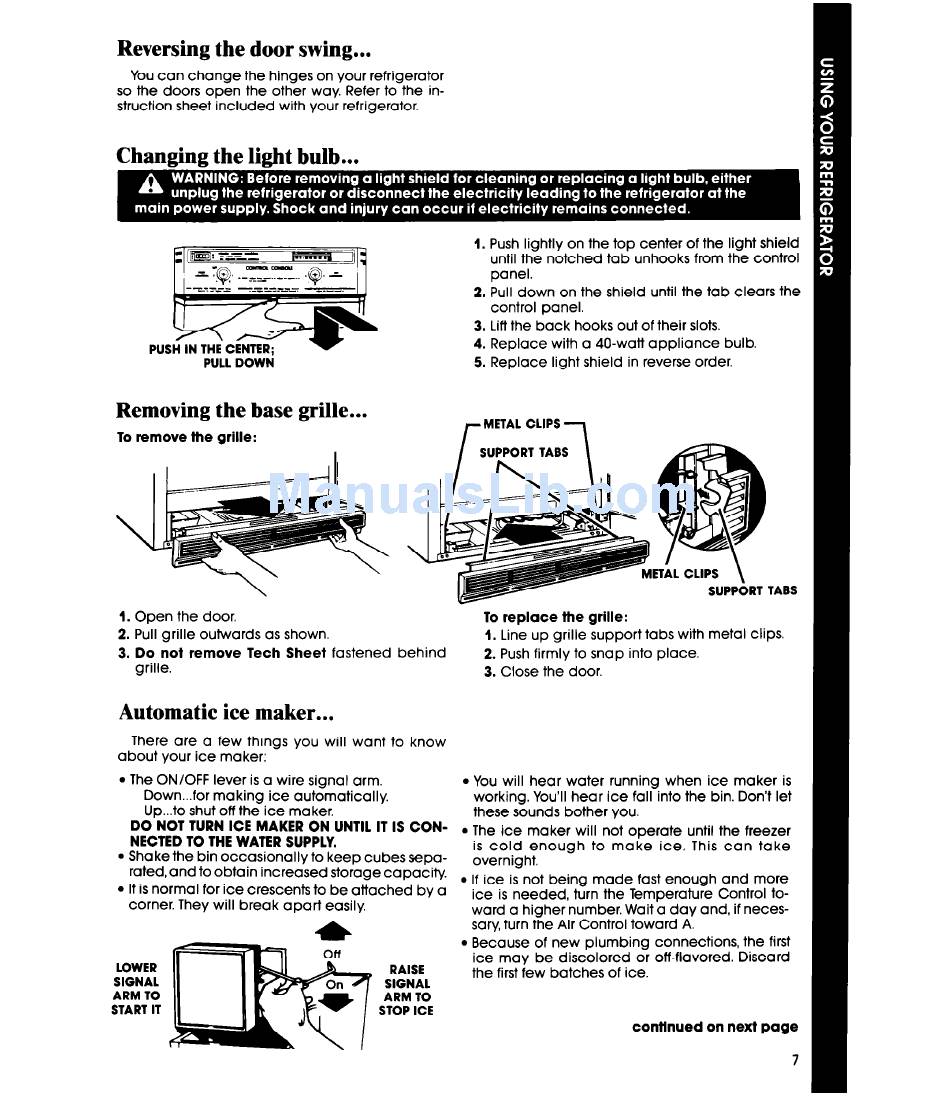

Reversing the door swing...
You can change the hinges on your refrigerator
so the doors open the other way. Refer to the in-
struction sheet included with your refrigerator.
Changing the light bulb...
1.
Push lightly on the top center of the light shield
until the notched tab unhooks from the control
panel.
2. Pull down on the shield until the tab clears the
control panel.
3. Lift the back hooks out of their slots.
4. Replace with a 40-watt appliance
bulb.
5. Replace light shield in reverse order.
Removing the base grille...
To remove
the grille:
METAL CLIPS
SUPPORT TABS
1.
Open the door.
To replace
the grille:
2. Pull grille outwards as shown.
I. Line up grille support tabs with metal clips.
3.
Do not remove
Tech Sheet
fastened behind
2. Push firmly to snap into place.
grille.
3.
Close the door.
Automatic ice maker.. .
There are a few things you will want to know
about your ice maker:
l
The ON/OFF lever is a wire signal arm.
Down...for making ice automatically.
Up...to shut off the ice maker.
DO NOT TURN ICE MAKER ON UNTIL IT IS CON-
NECTED TO THE WATER SUPPLY.
l
Shake the bin occasionally
to keep cubes sepa-
rated, and to obtain increased storage capacity.
l
It is normal for ice crescents to be attached by a
corner. They will break apart easily.
LOWER
SIGNAL
ARM TO
START IT
RAISE
SIGNAL
ARM TO
STOP ICE
l
You will hear water running when ice maker is
working. You'll hear ice fall into the bin. Don't let
these sounds bother you.
l
The ice maker will not operate until the freezer
is cold
enough
to make ice. This can take
overnight.
l
If ice is not being made fast enough and more
ice is needed, turn the Temperature Control to-
ward a higher number. Wait a day and, if neces-
sary, turn the Air Control toward A.
l
Because of new plumbing
connections, the first
ice may be discolored
or off-flavored. Discard
the first few batches of ice.
conttnued
on next page
