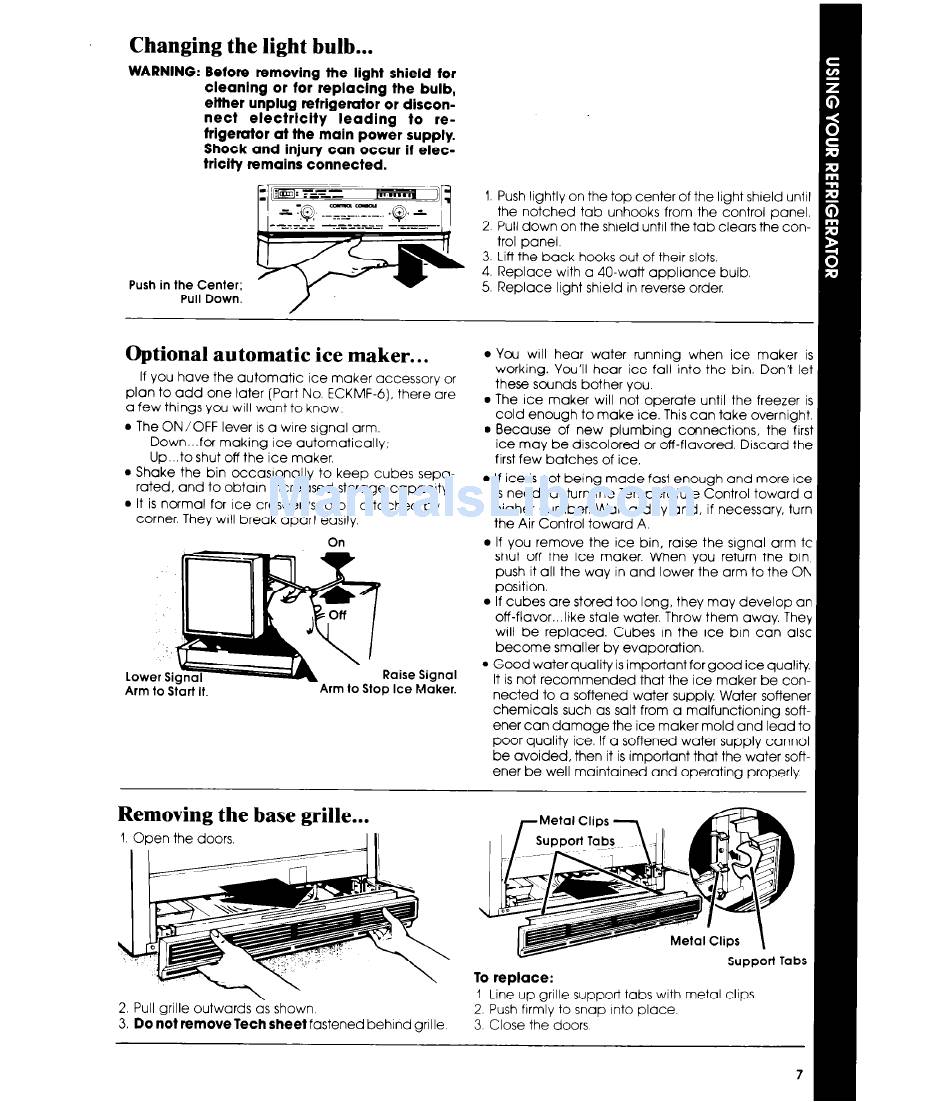

Changing the light bulb...
WARNING:
Betore
removing
the light shield
for
cleaning
or for replaclng
the bulb,
elther
unplug
refrigerator
or discon-
nect
electricity
leading
to
re-
trigerator
at the main power
supply.
Shock
and injury
can occur
if elec-
tricity
remains
connected.
Push in the Center;
Pull Down.
Optional automatic ice maker.. .
If you hove the automatic
ice maker accessory
or
plan to odd one later (Port No. ECKMF-6). there ore
a few things you will wont to know.
l
The ON /OFF lever IS a wire signal arm.
Down...fa
making
ice automatically;
Up...toshut
off the ice maker.
l
Shake the bin occasionally
to keep cubes sepa-
rated, and to obtain
increased
storage capacity.
l
It is normal for ice crescents to be attached
by a
corner. They ~111 break apart easily.
On
Lower Si
Arm to Start It.
Raise Signal
Arm to Stop Ice Maker.
1.
2.
3.
4.
5.
Push lightly on the top center of the light shield until
the notched
tab unhooks from the control panel.
Pull down on the shield until the tab clears the con-
trol panel.
Lift the bock hooks out of their slots.
Replace
with a 40-w&
appliance
bulb.
Replace
light shield in reverse order
l
You will hear water
running
when ice maker
iz
working.
You'll hear ice fall into the bin Don't lei
these sounds bother you.
l
The ice maker will not operate
until the freezer iz
cold enough to make ice. This con take overnight
l
Because
of new plumbing
connections,
the firs
ice may be discolored
or off-flavored
Discord the
first few botches
of ice.
l
If ice is not betng mode fasi enough and more Ice
is needed,
turn the Temperature
Control toward a
higher number. Wait a day and, if necessary, turn
the Air Control toward A.
l
If you remove the ice bin, raise the signal arm tc
shut off the ice maker. When you return the bin
push it all the way in and lower the arm to the Oh
position.
l
If cubes ore stored too long, they may develop
at-
off-flavor...like
stole water. Throw them away. They
will be replaced.
Cubes
in the ice bin con alsc
become
smaller by evaporation.
l
Good water quality is important for good ice quality
It is not recommended
that the ice maker be con-
nected
to a softened
water supply Water softener
chemicals
such us salt from o malfunctioning
soft-
ener con damage
the ice maker mold and lead to
poor quality ice. If a softened water supply cannot
be avoided,
then it is important
that the water soft-
ener be well maintained
and operating
prooerlv.
Removing the base grille...
1. Open the doors.
2. Pull grille outwards ds shown
3. Do not removeTech
sheet fastened behind grille.
I I
To replace:
Support
Tabs
1 Line up grille support tabs with metal clips
2. Push firmly to snap Into place.
3.
Close the doors
7
