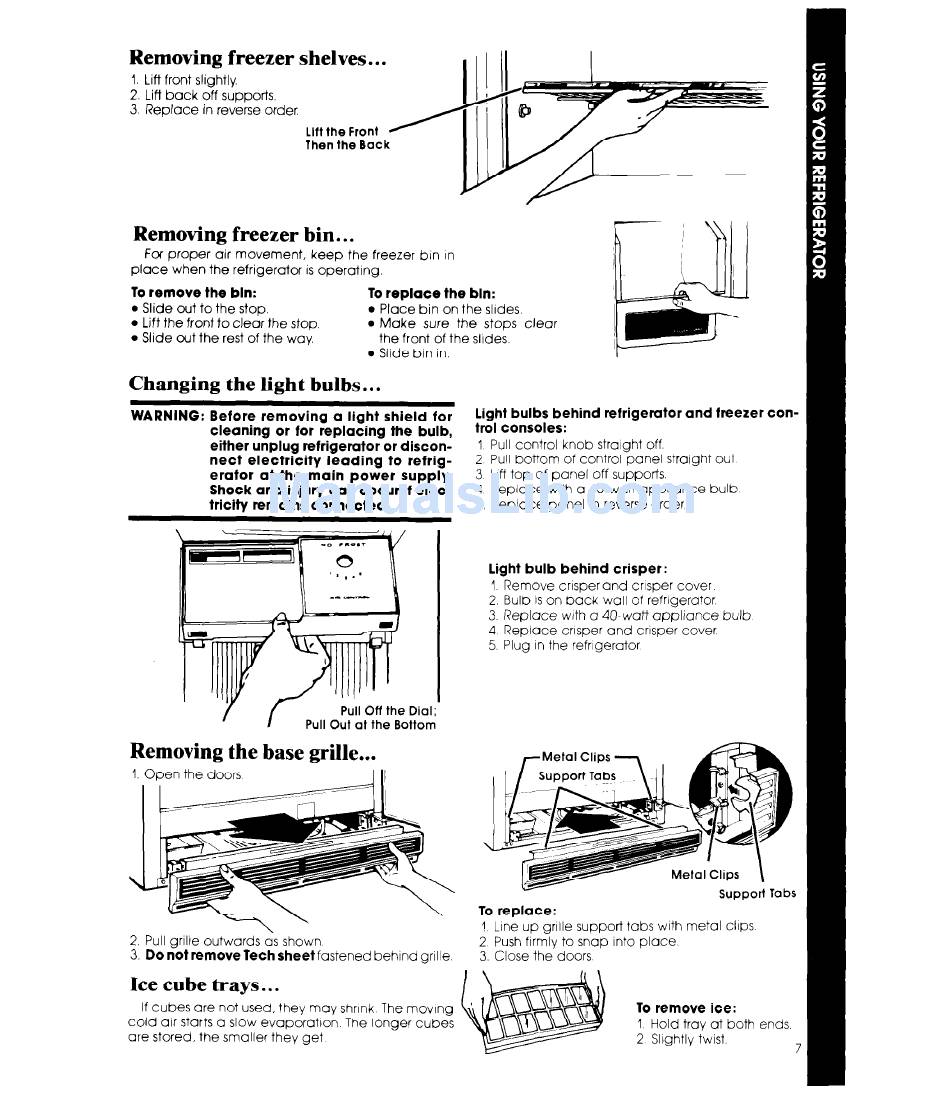

Removing
freezer shelves.. .
1. Lift front slightly.
2. Lift back off supports.
3. Replace
in reverse order
Lltt the Front
Then the Back
Removing
freezer bin.. .
For proper
air movement,
keep the freezer bin In
place
when the refrigerator
is operating.
,
To remove
the bln:
To replace
the bln:
l
Slide out to the stop.
l
Place bin on the slrdes.
l
Lift the front to clear the stop.
l
Make
sure the stops clear
l
Slide out the rest of the way.
the front of the slides.
l
Slide bin in.
Changing
the light bulbs.. .
WARNING:
Before
removing
a light
shield
for
cleaning
or for replacing
the bulb,
either unplug
refrigerator
or discon-
nect
electricity
leading
to refrig-
erator
at the main
power
supply.
Shock and injury can occur
if elec-
tricitv
remains
connected.
light
bulbs
behind
refrigerator
and freezer
con-
trol consoles:
1 Pull control knob straight off.
2 Pull bottom of control panel straight out
3 Loft top of panel off supports.
4 Replace
wrth a 40.wati appliance
bulb
5 Replace
panel in reverse order
Removing the base grille...
2. Pull grille outwards as shown
3. Do not remove
Tech sheet fastened behind grille.
light
bulb
behind
crisper:
1. Remove crisperand
crisper cover.
2. Bulb IS on back wall of refrigerator.
3. Replace
with a 40-watf appliance
bulb
4 Replace
crisper and crisper cover.
5. Plug in the refrigerator
To replace:
Support
Tabs
1 Line up grille support tabs with metal clips.
2 Push firmly to snap into place.
3. Close the doors
Ice cube trays.. .
If cubes are not used, they may shrink The moving
cold air starts a slow evaporatron
The longer cubes
are stored, the smaller they get
To remove
ice:
1 Hold tray at both ends.
2 Slightly twist.
7
