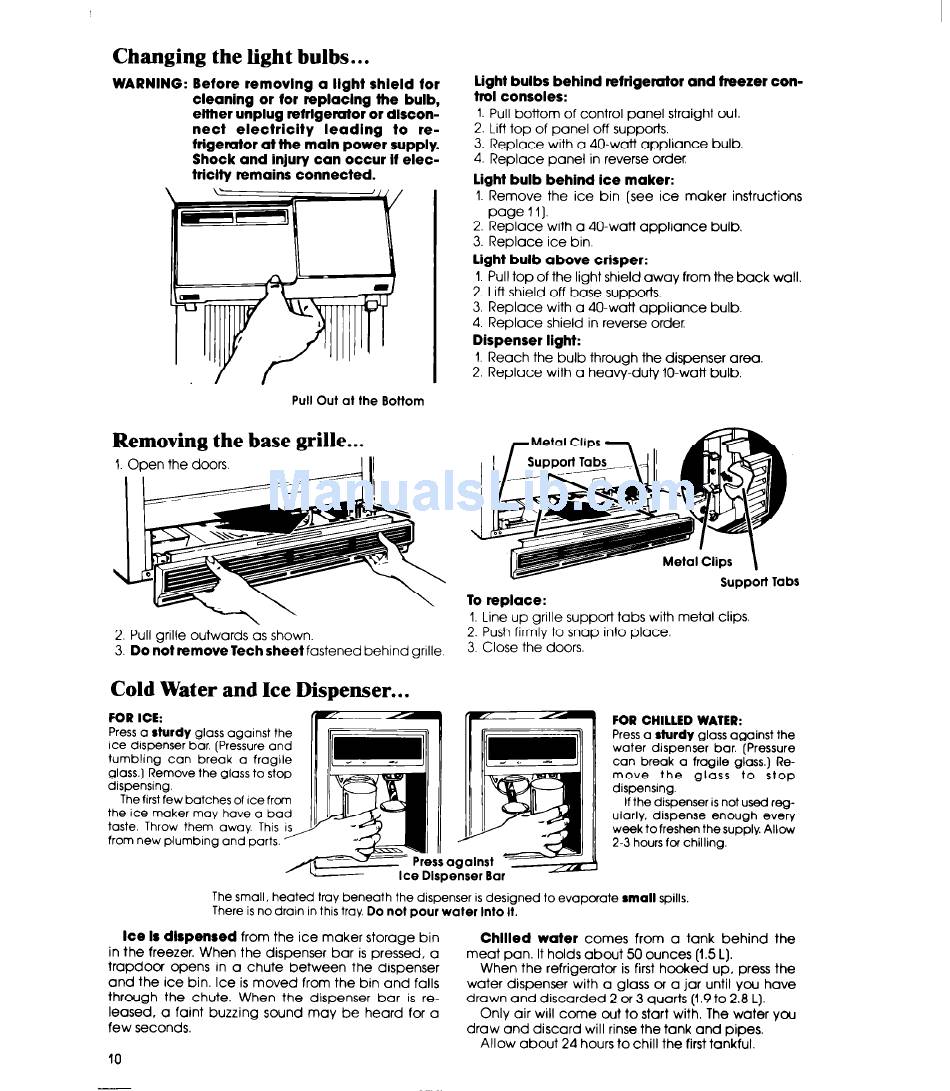

Changing the light bulbs.. .
WARNING: Before removing
a light shield
for
cleaning
or for replacing
the bulb,
either unplug refrigerator
or discon-
nect
electricity
leading
to re-
frigerator
at the main power supply.
Shock and injury can occur if eiec-
triclty remains connected.
Removing the
1. Open the doors.
Pull Out at the Bottom
base grille...
2. Pull grille
outwards
as shown.
3.
Do not
removelechsheetfastened
behind grille.
Cold Water and Ice Dispenser...
FOR ICE:
Press a
sturdy
glass against
the
ice dispenser
bar. (Pressure and
tumbling
can
break
a fragile
glass.] Remove the glass to stop
dispensing.
The first few batches of ice from
the ice maker may have a bad
taste. Throw them away
This is
from new plumbing
and parts.
light bulbs behind refrigerator
and freezer con-
trol consoles:
1. Pull bottom
of control
panel
straight
out.
2.
Lift top of panel
off supports.
3. Replace
with a 40-watt
appliance
bulb.
4. Replace
panel
in reverse
order
light bulb behind ice maker:
1. Remove
the ice bin
[see
ice maker
instructions
page
11).
2. Replace
with a 40.watt appliance
bulb.
3. Replace
ice bin.
light bulb above crisper:
1. Pull top of the light shield away from the back wall.
2. Lift shield off base supports.
3. Replace
with a 40.watt appliance
bulb.
4. Replace
shield in reverse order
Dispenser light:
1. Reach the bulb through the dispenser area.
2. Replace
with a heavy-duty
IO-watt bulb.
Support labs
To replace:
1. Line up grille
support
tabs with metal
clips.
2. Push firmly to snap
into place.
3. Close
the'doors.
Ice Dispenser Bar
FOR CHILLED WATER:
Press a
sturdy
glass against
the
water
dispenser
bar. (Pressure
can break
a fragile
glass.)
Re-
move
the
glass
to
stop
dispensing.
If the dispenser is not used reg-
ularly.
dispense
enough
every
week tofreshen
thesupply.
Allow
2-3 hours far chilling.
The small, heated
tray beneath
the dispenser
is designed
to evaporate
small
spills.
There is no drain in this tray.
Do not pour water Into It.
Ice is dlspensed
from the ice maker storage
bin
in the freezer. When the dispenser
bar is pressed, a
trapdoor
opens in a chute between
the dispenser
and the ice bin. Ice is moved from the bin and falls
through
the
chute.
When
the
dispenser
bar
is re-
leased,
a faint buzzing
sound may be heard for a
few seconds.
Chilled
water
comes
from a tank behind
the
meat pan. It holds about 50 ounces (1.5 L).
When the refrigerator
is first hooked
up, press the
water dispenser
with a glass or a jar until you have
drawn
and discarded
2 or 3 quarts
(1.9 to 2.8 L).
Only air will come out to start with. The water you
draw and discard will rinse the tank and pipes.
Allow about 24 hours to chill the first tankful.
10
